Description
Mini excavator

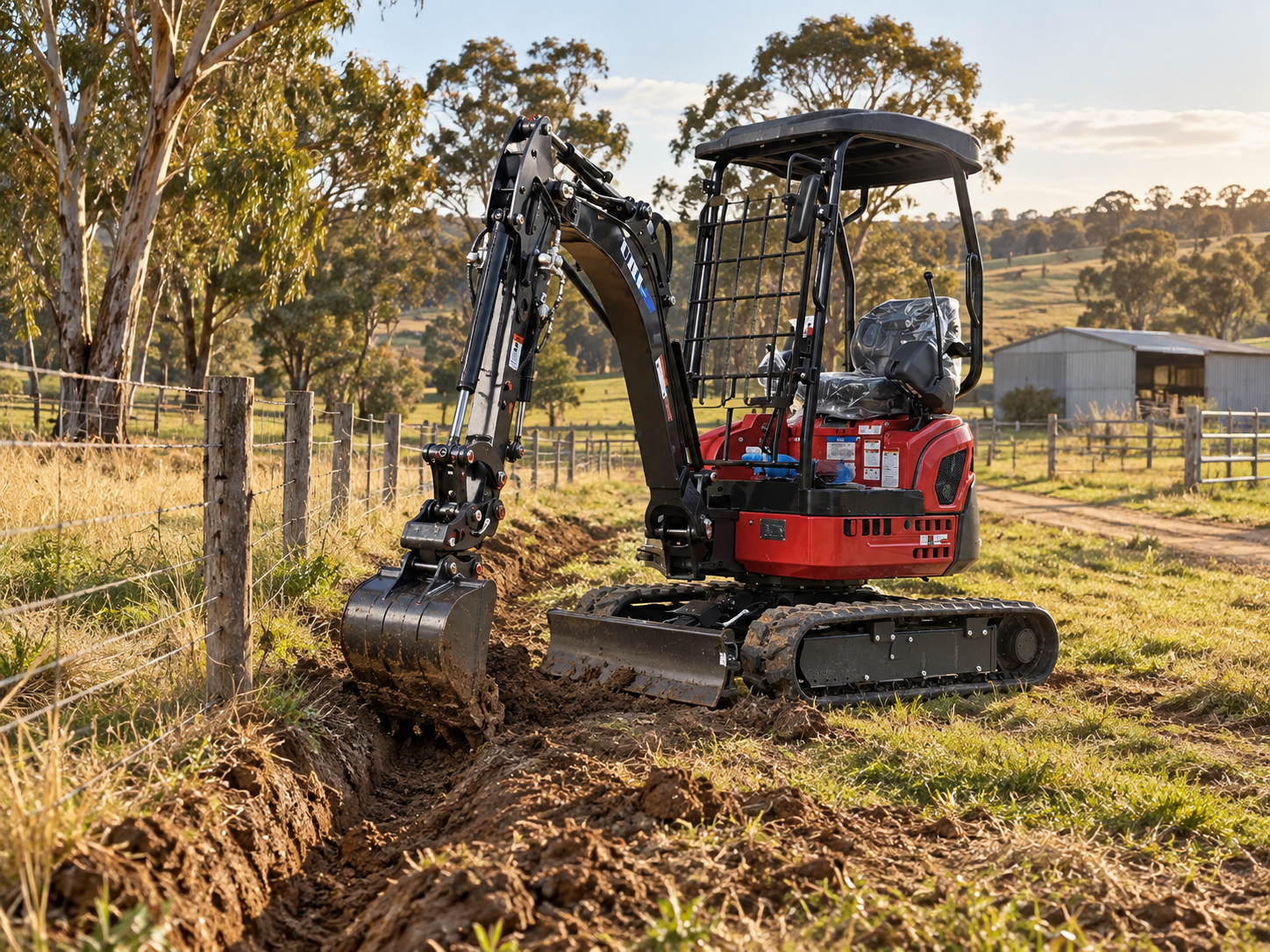

UME18 Mini Excavator
The UME18 mini excavator combines a 1,800 kg operating weight with Kubota power, piston-pump hydraulics and an adjustable 990 / 1,240 mm chassis. Its 2,150 mm maximum digging depth and 39.6 L/min hydraulic flow support productive digging in compact work areas.
1,800 kgOperating weight
2,150 mmMaximum digging depth
39.6 L/minHydraulic flow
Kubota power
0.854 L engine with rated power of 11.8 kW and maximum torque of 51.9 Nm.
Piston-pump hydraulics
39.6 L/min hydraulic flow and 20 MPa rated pressure provide controlled digging performance.
Adjustable chassis
990 / 1,240 mm chassis width, 790 mm tail turning radius and compact rubber-track undercarriage.
Technical specifications
| Operating weight | 1,800 kg |
|---|---|
| Working equipment | Backhoe |
| Standard bucket capacity | 0.027 m³ |
| Engine | Kubota |
| Displacement | 0.854 L |
| Rated power | 11.8 kW |
| Maximum torque | 51.9 Nm |
| Travel speed | 2.2 km/h |
|---|---|
| Swing speed | 11 rpm |
| Maximum gradeability | 30° |
| Pump type | Piston pump |
| Hydraulic flow | 39.6 L/min |
| Rated pressure | 20 MPa |
| Ground-level digging radius | 3,610 mm |
|---|---|
| Maximum digging radius | 3,700 mm |
| Maximum digging depth | 2,150 mm |
| Maximum digging height | 3,275 mm |
| Maximum dumping height | 2,310 mm |
| Maximum vertical digging depth | 1,740 mm |
| Minimum turning radius | 1,580 mm |
| Maximum blade lifting height | 275 mm |
| Maximum blade digging depth | 180 mm |
| Wheelbase | 1,230 mm |
|---|---|
| Track length | 1,590 mm |
| Platform ground clearance | 473 mm |
| Tail turning radius | 790 mm |
| Chassis width | 990 / 1,240 mm |
| Track width | 230 mm |
| Chassis height | 360 mm |
| Transport length | 3,400 mm |
| Seat-to-floor height | 1,660 mm |
| Overall height | 2,380 mm |
| Boom offset - left | 390 mm |
| Boom offset - right | 510 mm |
