Mini excavator

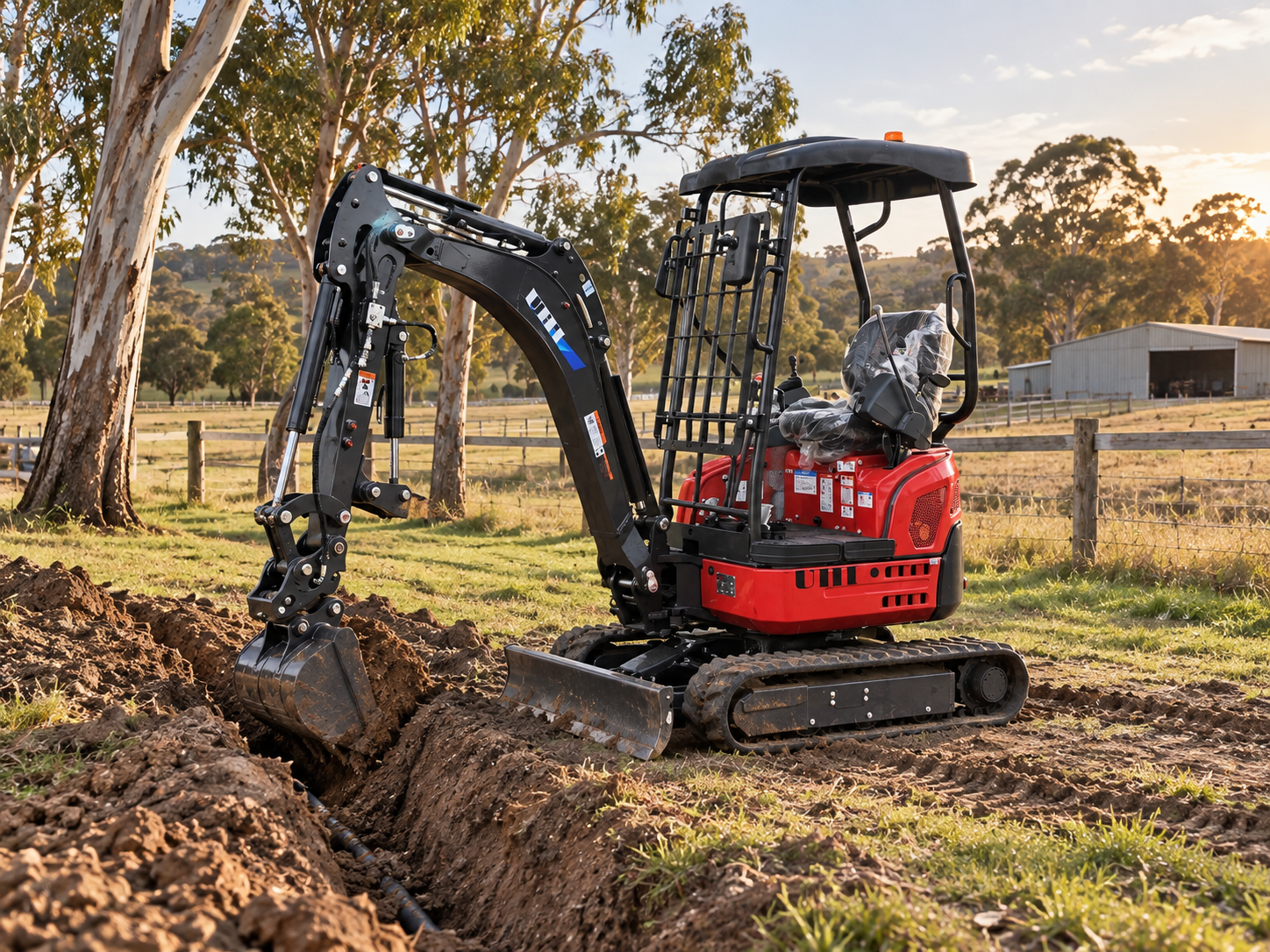

UME18S Mini Excavator
The UME18S mini excavator combines a 1,800 kg operating weight with a Kubota engine, plunger-pump hydraulics and a compact 1,128 mm chassis. Its 2,160 mm maximum digging depth and 39.6 L/min hydraulic flow support controlled work in confined areas.
1,800 kgOperating weight
2,160 mmMaximum digging depth
39.6 L/minHydraulic flow
Kubota engine
0.719 L engine rated at 11.8 kW / 16 hp, with maximum torque of 43.5 Nm.
Plunger-pump hydraulics
39.6 L/min hydraulic flow and 20 MPa rated pressure provide controlled digging performance.
Compact working dimensions
1,128 mm chassis width, 799 mm tail turning radius and a 3,223 mm transport length.
Technical specifications
| Operating weight | 1,800 kg |
|---|---|
| Working equipment | Backhoe |
| Standard bucket capacity | 0.027 m³ |
| Engine model | Kubota |
| Displacement | 0.719 L |
| Rated power | 11.8 kW / 16 hp |
| Maximum torque | 43.5 Nm |
| Travel speed | 3.0 km/h |
|---|---|
| Swing speed | 8.5 rpm |
| Maximum gradeability | 30° |
| Pump type | Plunger pump |
| Hydraulic flow | 39.6 L/min |
| Rated pressure | 20 MPa |
| Ground-level digging radius | 3,550 mm |
|---|---|
| Maximum digging radius | 3,580 mm |
| Maximum digging depth | 2,160 mm |
| Maximum digging height | 3,230 mm |
| Maximum dumping height | 2,260 mm |
| Maximum vertical digging depth | 1,780 mm |
| Minimum turning radius | 1,440 mm |
| Maximum blade lifting height | 197 mm |
| Maximum blade digging depth | 202 mm |
| Wheelbase | 1,130 mm |
|---|---|
| Track length | 1,447 mm |
| Platform ground clearance | 406 mm |
| Tail turning radius | 799 mm |
| Chassis width | 1,128 mm |
| Track width | 230 mm |
| Chassis height | 360 mm |
| Transport length | 3,223 mm |
| Seat-to-floor height | 1,620 mm |
| Overall height | 2,321 mm |
| Boom offset - left | 390 mm |
| Boom offset - right | 510 mm |
