Rough-Terrain Series
FR35
3500 kg2WD Rough-Terrain Forklift
- Rated Power
- 56 hp Xinchai Engine
- Operating Weight
- 5200 kg
- Lift Height
- 4500 mm
- Key Features
- Rough Terrain, Side Shift, Pneumatic Tires
UHI Forklift Range
Compare four purpose-built UHI forklifts for warehouses, yards, farms, construction sites and rough terrain. Choose diesel, electric, 2WD or 4WD capability.
Four models, three clear applications
The UHI range is deliberately compact. Start with the working environment, then compare rated load, power source and drive configuration.
Compare the complete UHI range
Use the simple filters below or compare all four machines side by side.
Rough-Terrain Series

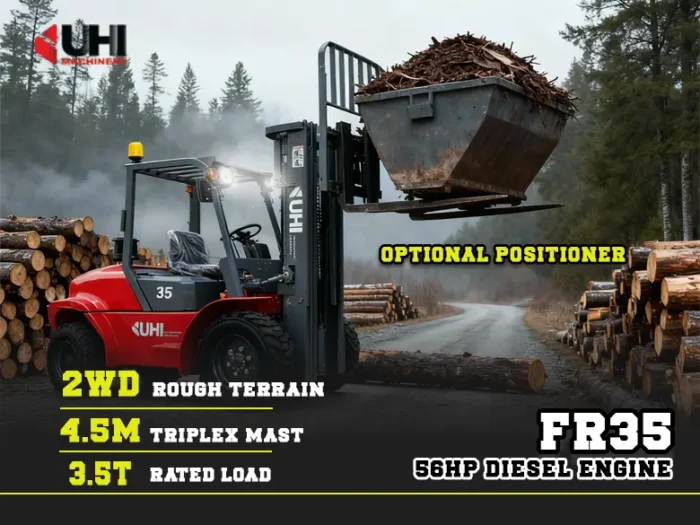

FR35
3500 kg2WD Rough-Terrain Forklift
- Rated Power
- 56 hp Xinchai Engine
- Operating Weight
- 5200 kg
- Lift Height
- 4500 mm
- Key Features
- Rough Terrain, Side Shift, Pneumatic Tires
$29,990.00 Original price was: $29,990.00.$27,990.00Current price is: $27,990.00. inc. GSTView FR35→
Rough-Terrain Series

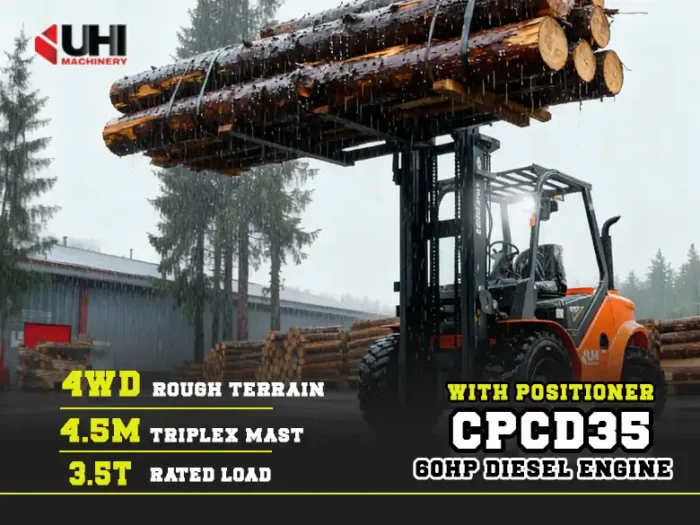

CPCD35
3500 kg4WD Rough-Terrain Forklift
- Rated Power
- 60 hp Xinchai Engine
- Operating Weight
- 5545 kg
- Lift Height
- 4500 mm
- Key Features
- 4WD Rough Terrain, Positioner
$39,990.00 inc. GSTView CPCD35→
Electric Series
E35D
3500 kgElectric Material-Handling Forklift
- Rated Power
- 12 kw AC Motor
- Operating Weight
- 4390 kg
- Lift Height
- 4500 mm
- Key Features
- Side Shift, 3 Phase Charger
$34,000.00 inc. GSTView E35D→
Material-Handling Series

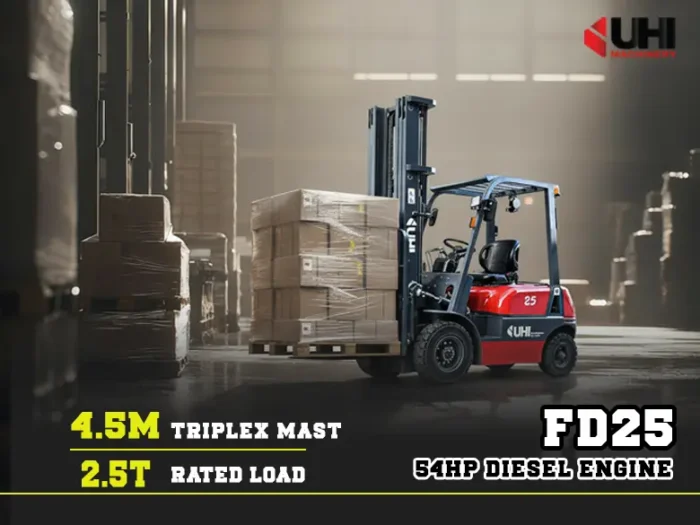

FD25
2500 kgDiesel Material-Handling Forklift
- Rated Power
- 54 hp Xinchai Engine
- Operating Weight
- 4000 kg
- Lift Height
- 4500 mm
- Key Features
- Side Shift, Automatic Transmission
$22,000.00 Original price was: $22,000.00.$20,000.00Current price is: $20,000.00. inc. GSTView FD25→
Forklift selection guide
Learn how to compare rated load, lift height, power source, drive type and site suitability across the four UHI forklift models.
Start with your working environment. The FD25 suits general warehouse and paved-yard material handling, the E35D is an electric option for suitable hard-surface applications, and the FR35 and CPCD35 are designed for rougher outdoor conditions. You should also compare rated load, lift height, drive type, operating weight and standard equipment.
Choose based on your heaviest regular load, load centre, required lift height, attachment weight and operating conditions. A higher rated-load figure does not automatically mean the machine is suitable for every load configuration, so the full load chart and machine specification should be checked.
Standard forklifts are generally best suited to firm, level warehouse floors and paved yards. Rough-terrain forklifts are designed with features such as higher ground clearance, larger tyres and stronger traction for suitable outdoor surfaces, farms, yards and construction environments.
Both are rough-terrain forklifts with a 3.5-tonne rated load. The main difference is the drive configuration. The FR35 uses 2WD, while the CPCD35 uses 4WD for additional traction on suitable uneven or loose surfaces. Site conditions, gradients, load and operating requirements should still be considered.
The E35D may suit businesses looking for lower operating noise and no engine exhaust at the machine. Before choosing an electric forklift, consider charging access, expected daily operating hours, floor conditions, battery management and the required rated load.
A triplex mast uses three mast stages to reach the stated lift height. You should also confirm the closed mast height, free-lift configuration and whether the forklift can safely operate within your doorway, container, shed or racking dimensions.
Side shift allows the fork carriage to move laterally, helping the operator align the forks with a pallet without repositioning the whole forklift. A fork positioner allows the fork spacing to be adjusted hydraulically on compatible machines. Confirm which features are included with the selected model.
It may be physically possible in some facilities, but rough-terrain forklifts are generally larger and may have a wider turning radius, different tyres and different emissions or clearance requirements. Check floor loading, ventilation, doorway width, mast height and turning space before indoor use.
UHI supports customers through its Australian branch network. Contact your nearest branch to confirm current delivery, pre-delivery inspection, parts, servicing and warranty support for the selected forklift.
