Description
Mini excavator

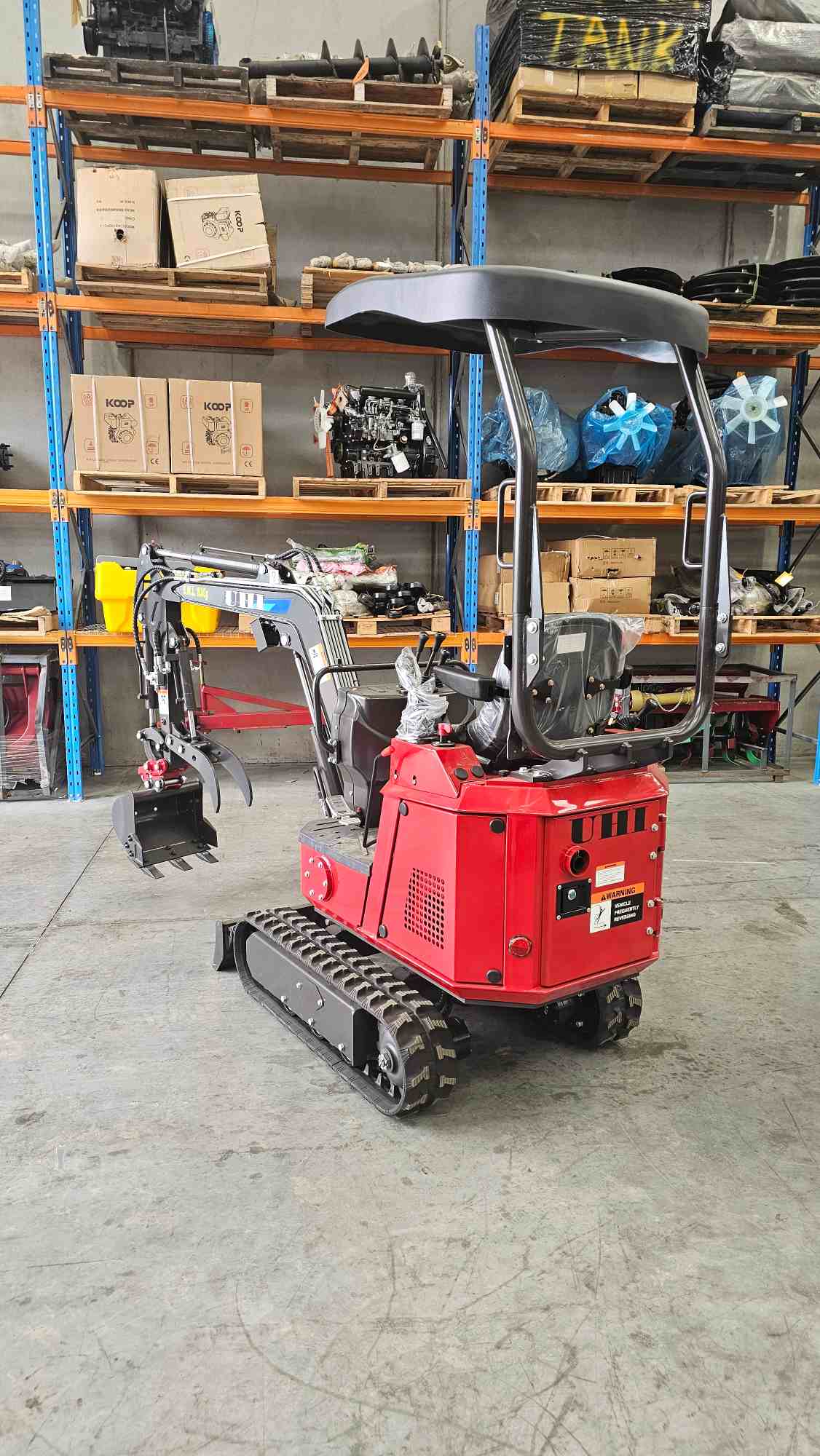

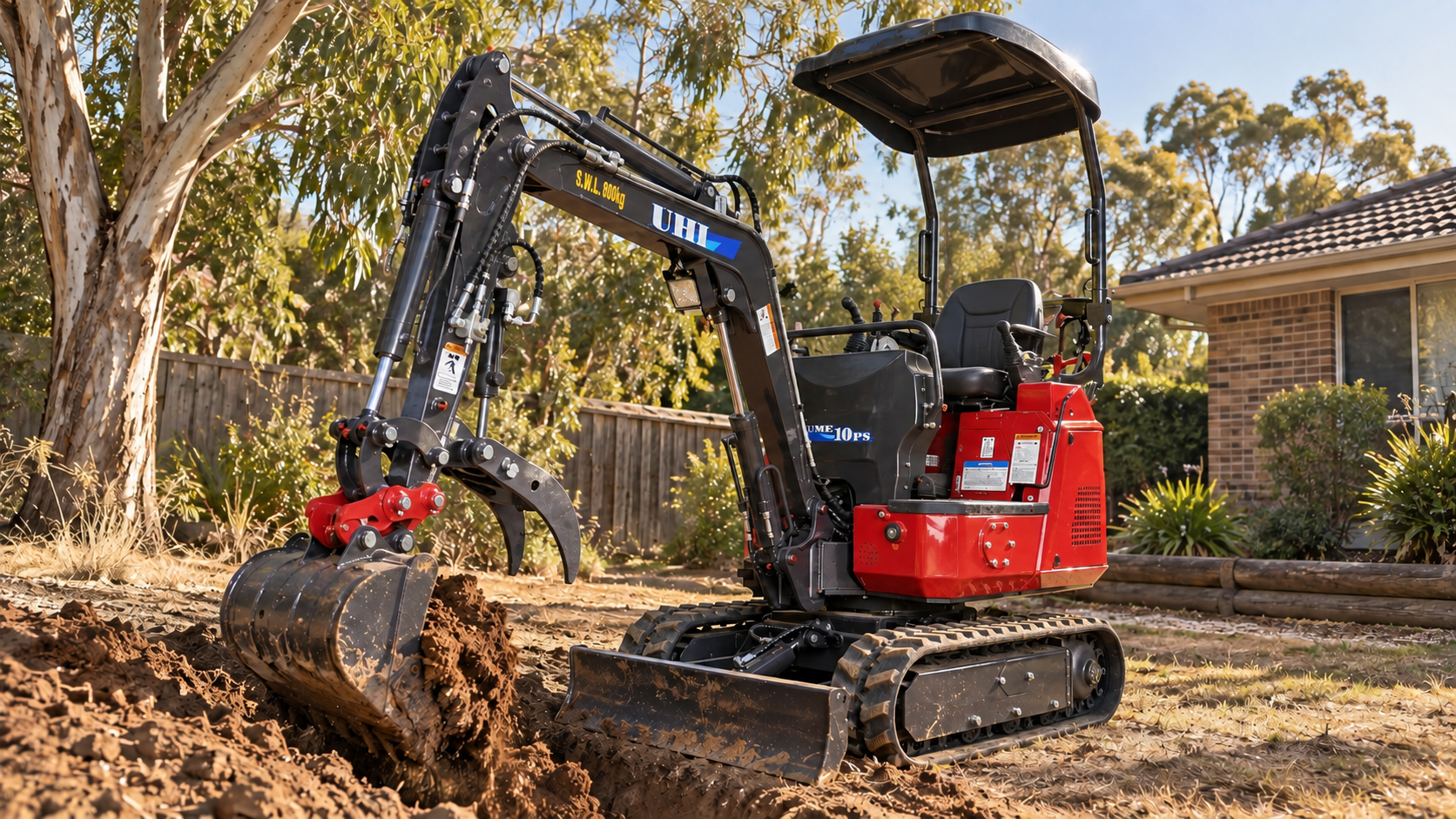

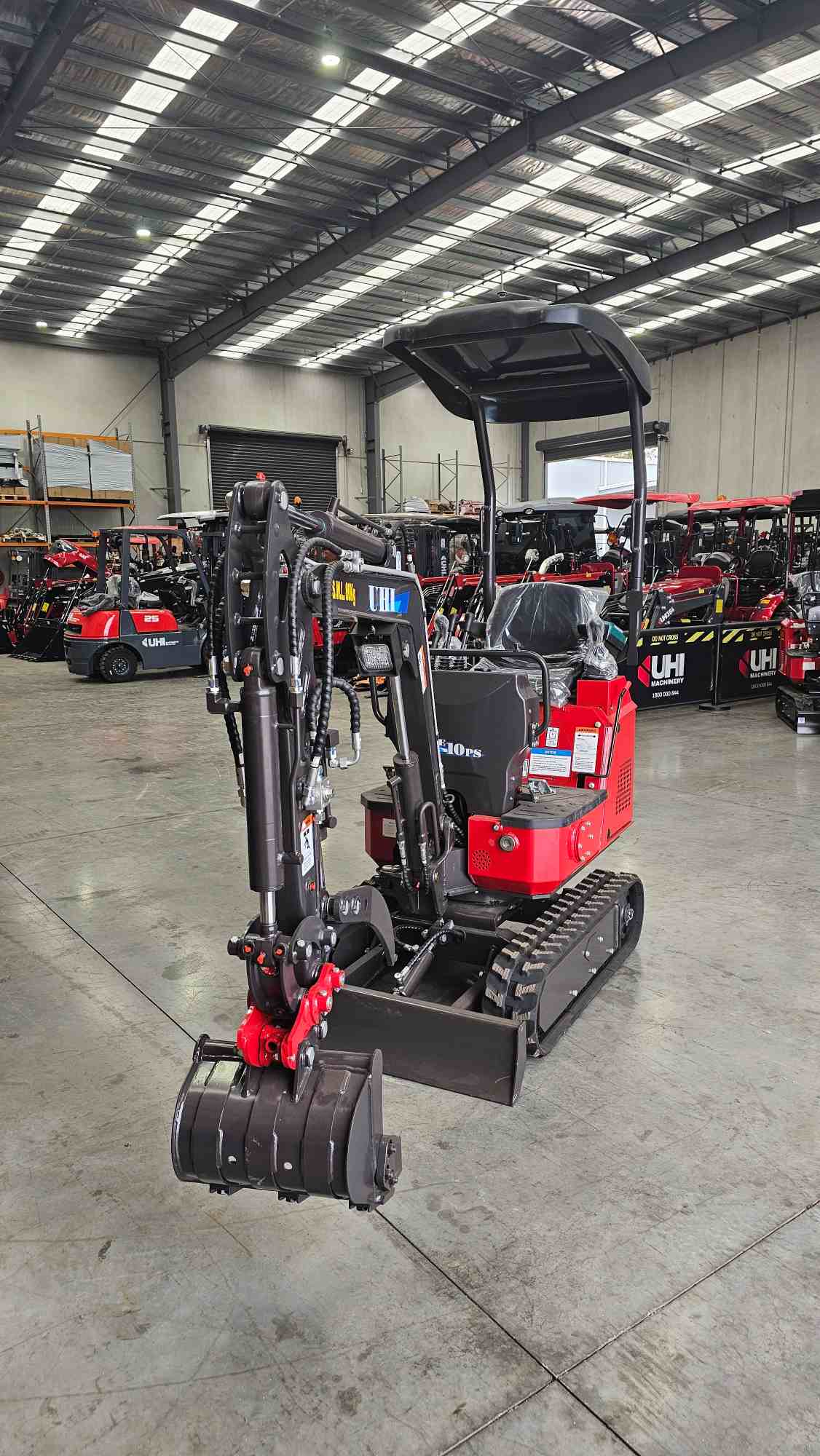

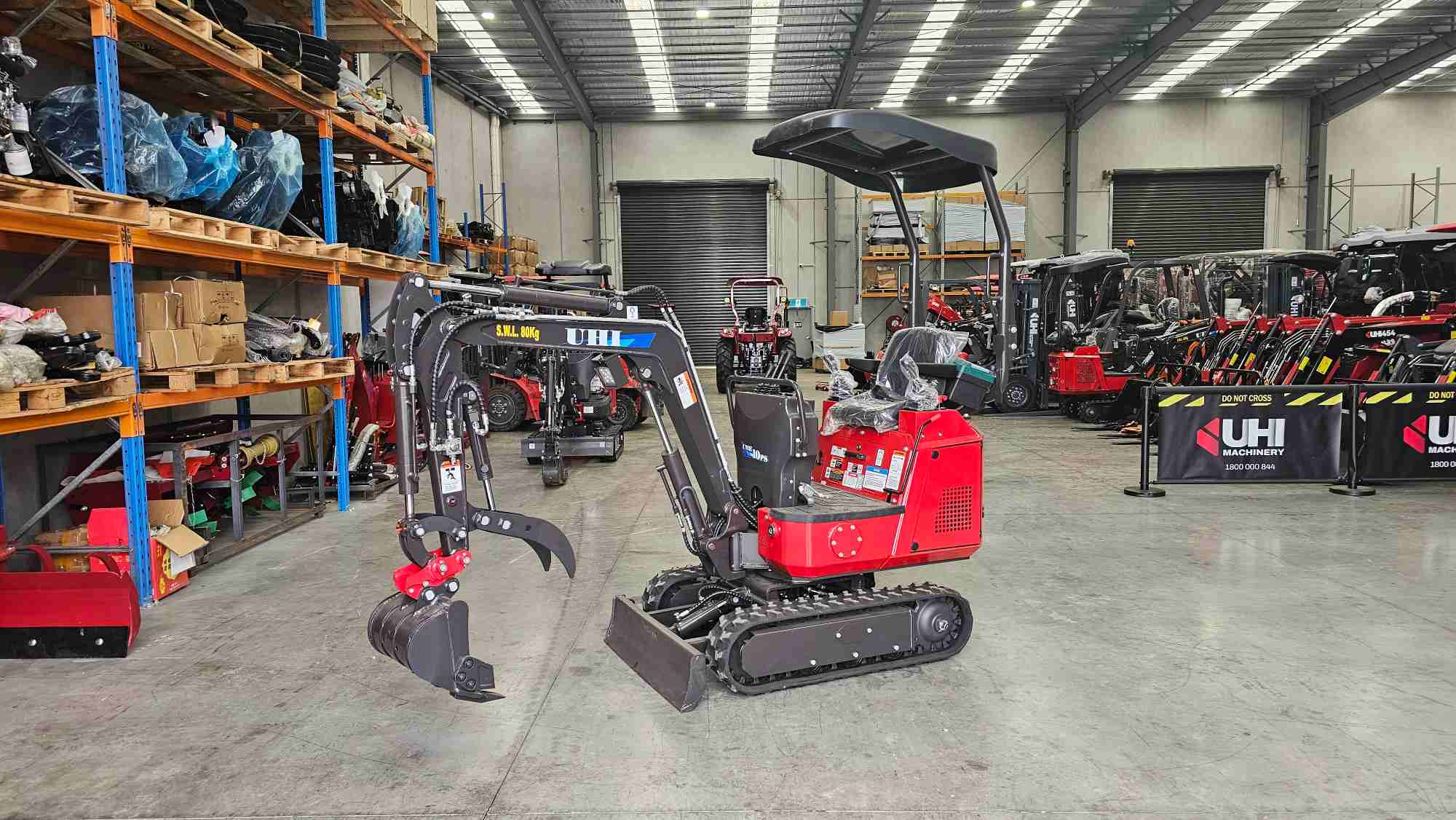

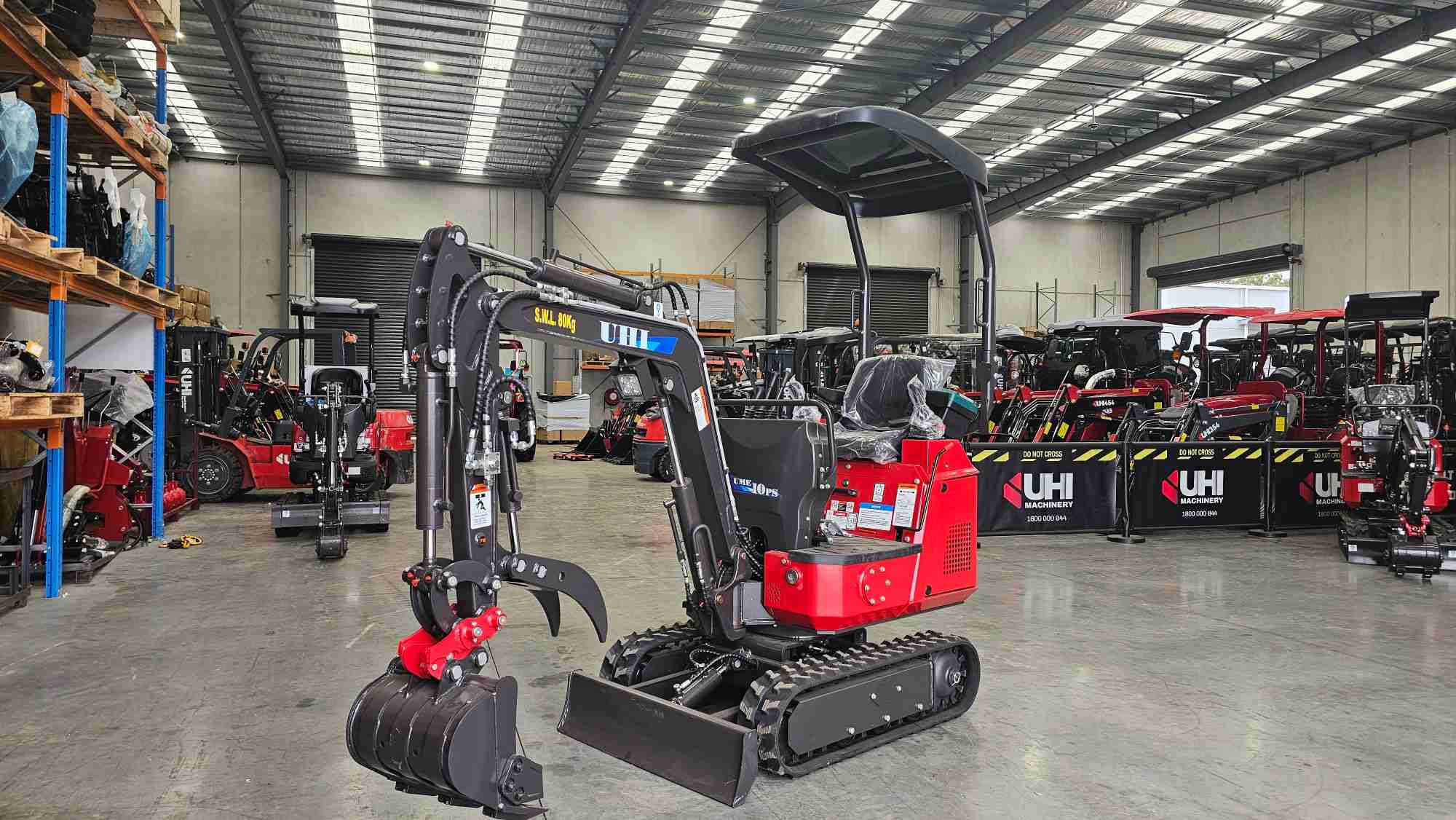

UME10PS Mini Excavator
The UME10PS mini excavator combines an 1000 kg operating weight with a 930 mm chassis, Koop 192 engine and 0.02 m³ standard bucket. It delivers a maximum digging depth of 1,780 mm for compact excavation and landscaping work.
1000 kgOperating weight
930 mmChassis width
1,780 mmMax. digging depth
Koop 192 engine
Rated power of 7.6 kW at 3,000 rpm with maximum torque of 25 Nm at 2,860 rpm.
Hydraulic performance
Gear oil pump with 19 L/min hydraulic flow and 16 MPa working pressure.
Chassis
930 mm chassis width, rubber tracks and 50° left / 55° right boom swing for compact worksites.

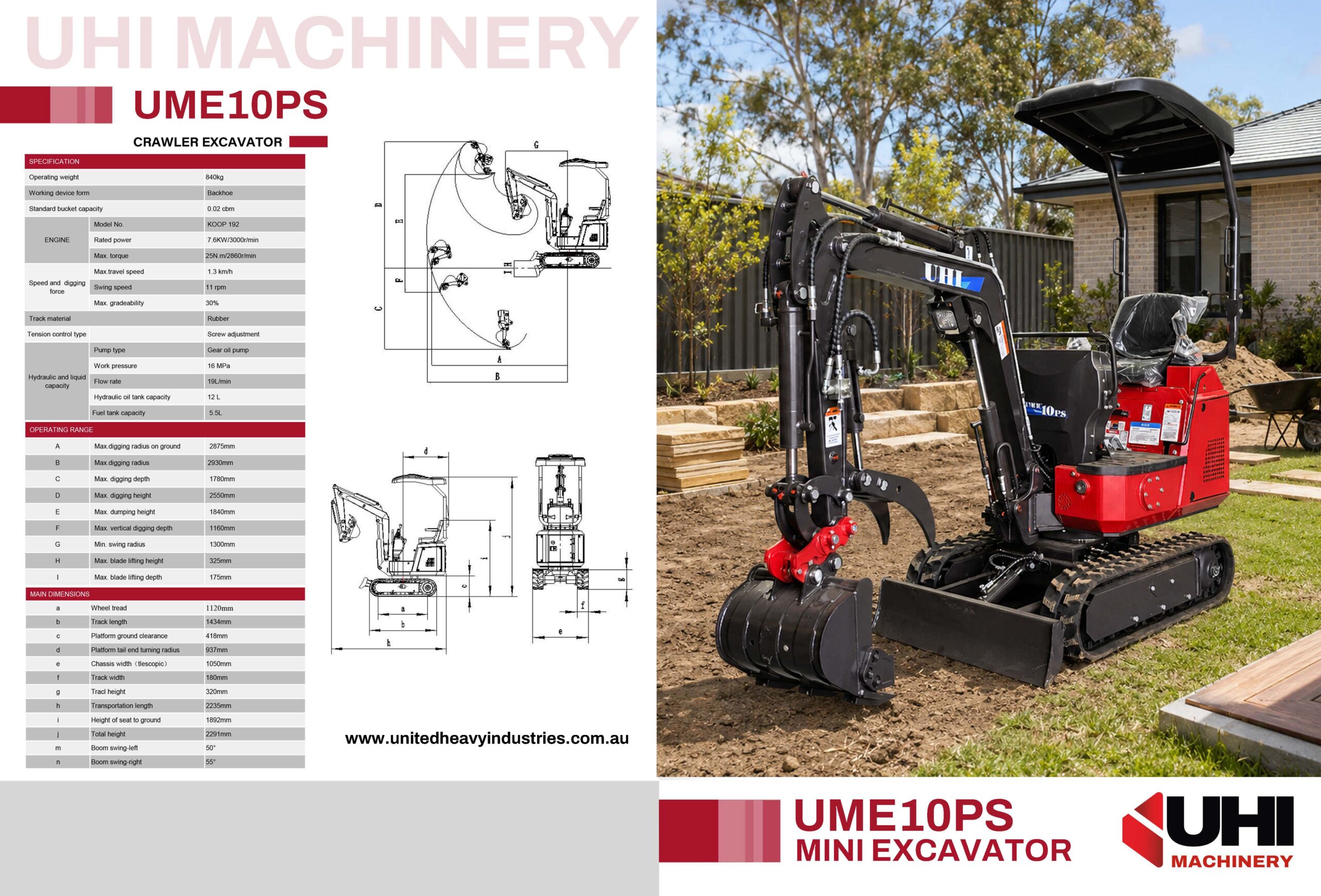

Technical specifications
| Operating weight | 1000 kg |
|---|---|
| Working equipment | Backhoe |
| Standard bucket capacity | 0.02 m³ |
| Engine model | KOOP 192 |
| Rated power | 7.6 kW / 3,000 rpm |
| Maximum torque | 25 Nm / 2,860 rpm |
| Fuel tank capacity | 5.5 L |
| Maximum travel speed | 1.3 km/h |
|---|---|
| Swing speed | 11 rpm |
| Maximum gradeability | 30% |
| Track material | Rubber |
| Track tensioning | Screw adjustment |
| Pump type | Gear oil pump |
| Working pressure | 16 MPa |
| Hydraulic flow | 19 L/min |
| Hydraulic oil tank capacity | 12 L |
| Ground-level digging radius | 2,875 mm |
|---|---|
| Maximum digging radius | 2,930 mm |
| Maximum digging depth | 1,780 mm |
| Maximum digging height | 2,550 mm |
| Maximum dumping height | 1,840 mm |
| Maximum vertical digging depth | 1,160 mm |
| Minimum swing radius | 1,300 mm |
| Maximum blade lifting height | 325 mm |
| Maximum blade digging depth | 175 mm |
| Wheel tread | 1,120 mm |
|---|---|
| Track length | 1,434 mm |
| Platform ground clearance | 418 mm |
| Platform tail turning radius | 937 mm |
| Chassis width | 930 mm |
| Track width | 180 mm |
| Track height | 320 mm |
| Transportation length | 2,235 mm |
| Seat height from ground | 1,892 mm |
| Overall height | 2,291 mm |
| Boom swing - left | 50° |
| Boom swing - right | 55° |
