Description
Mini excavator

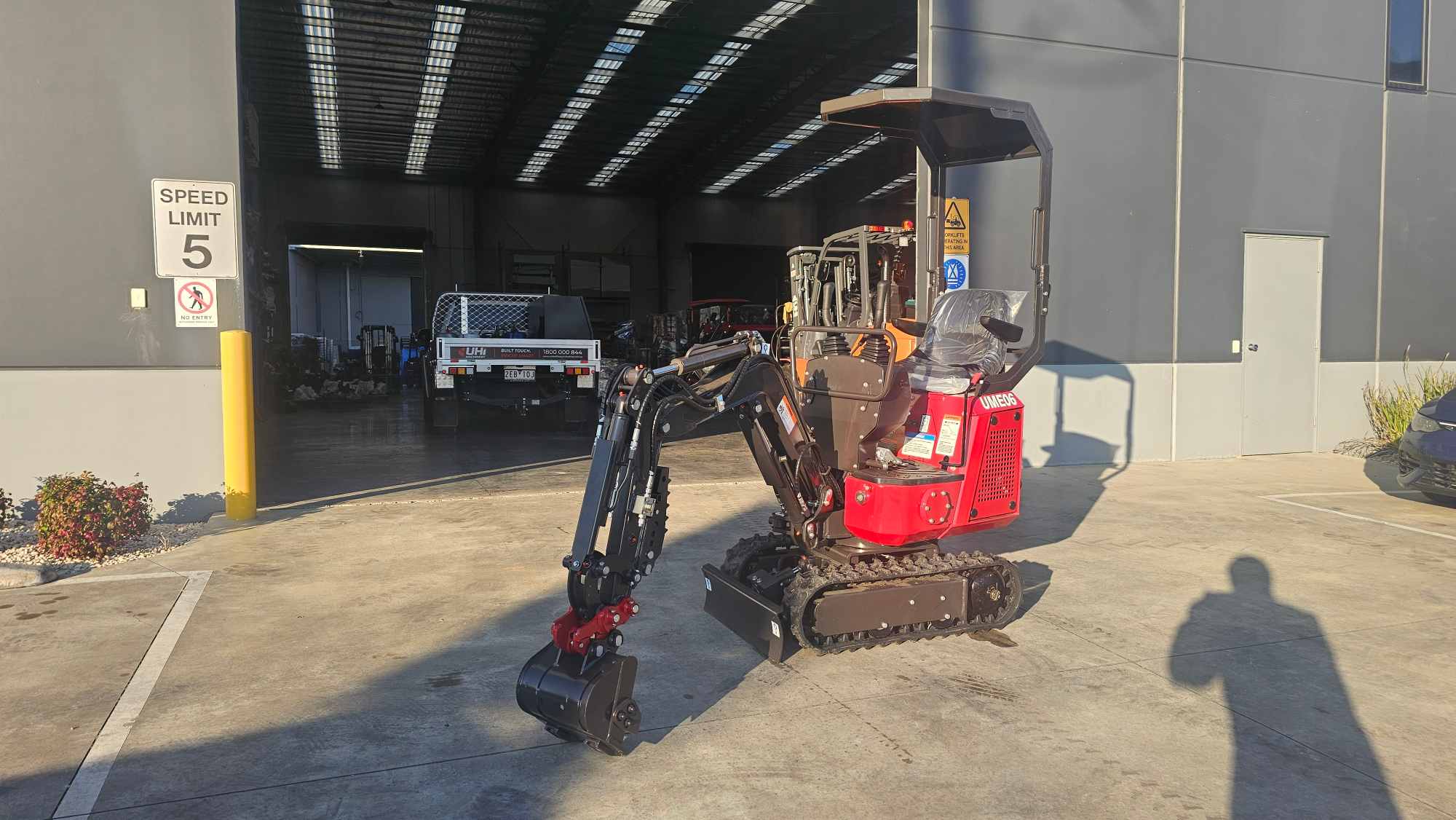

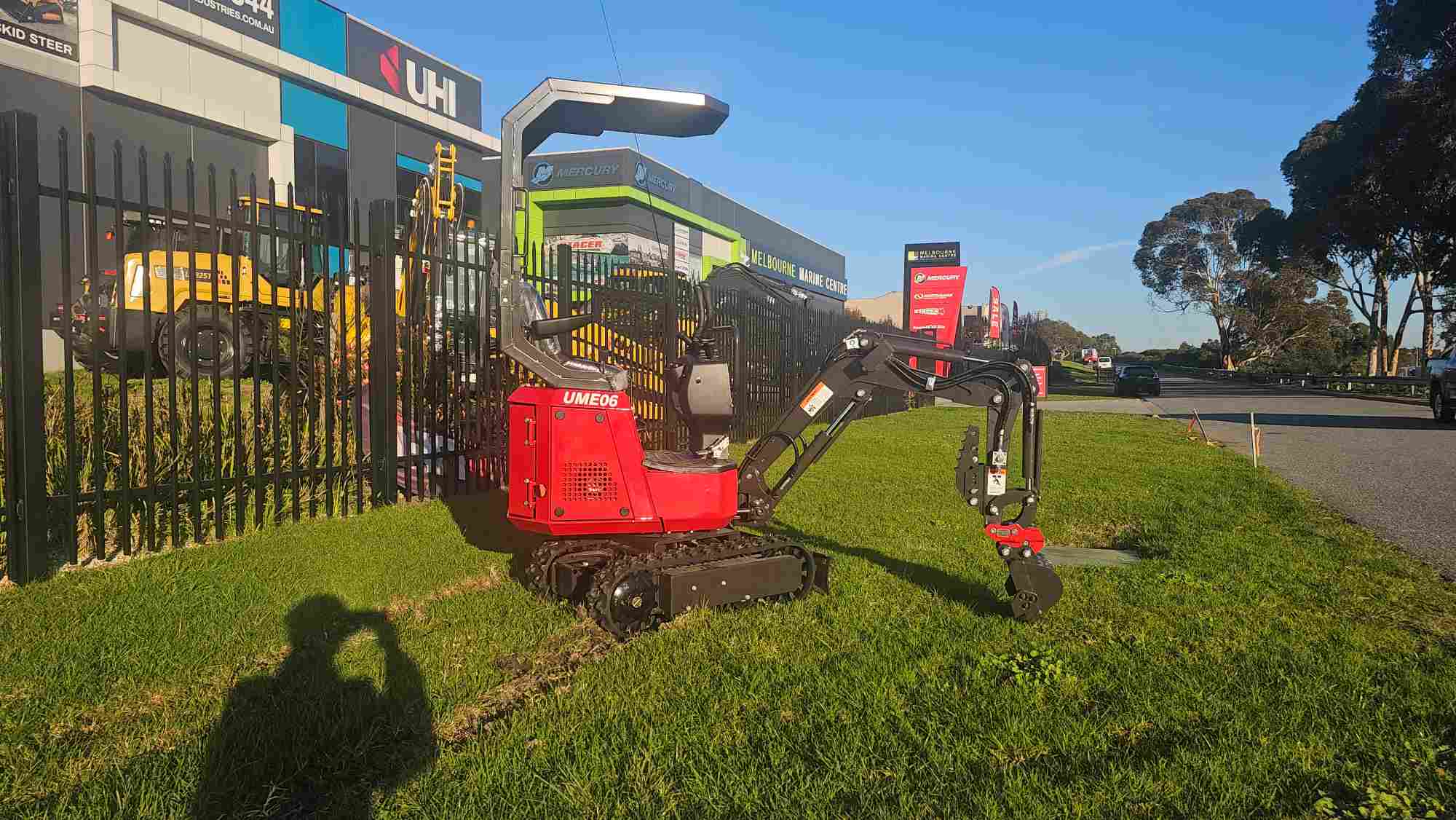

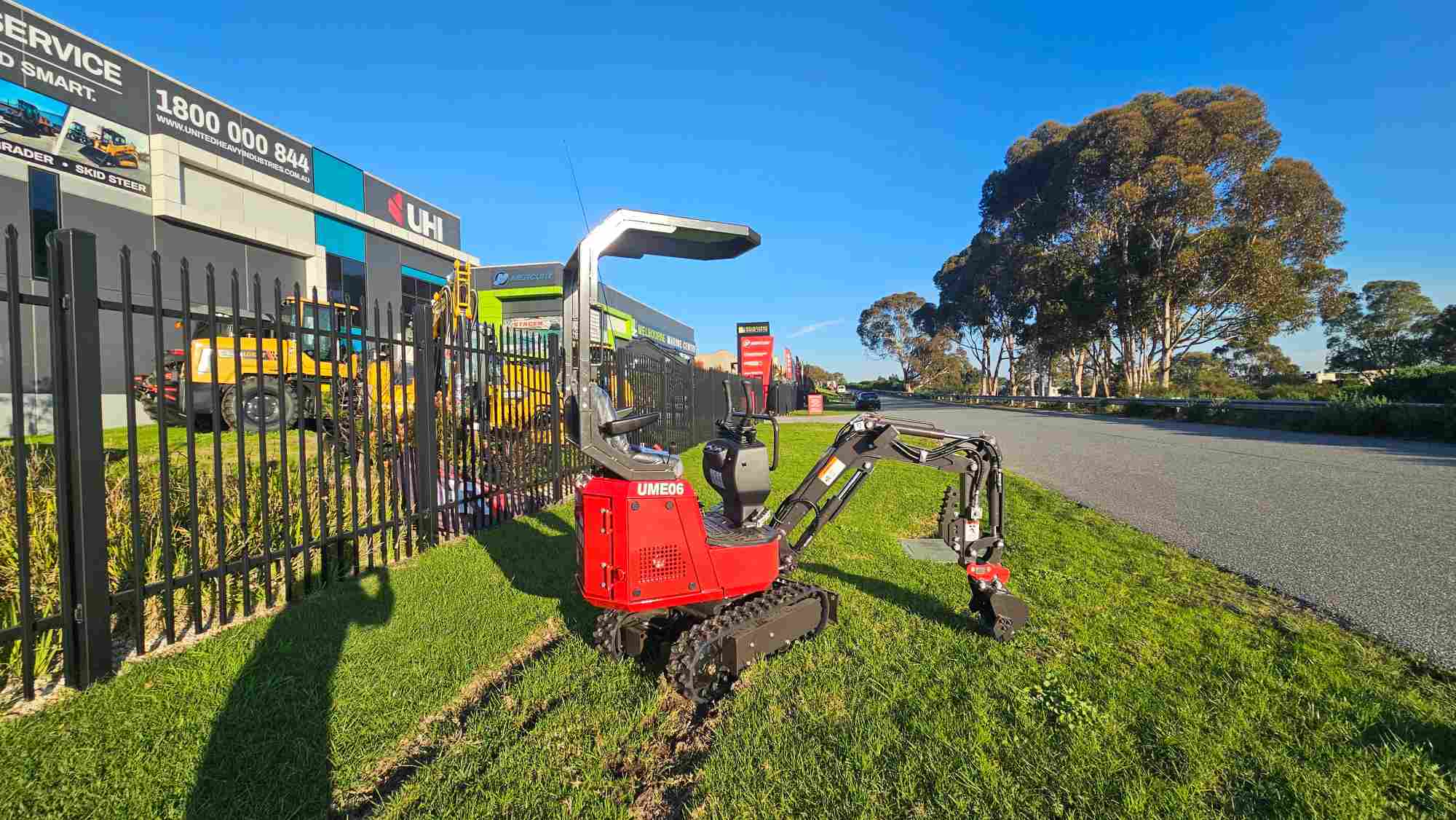

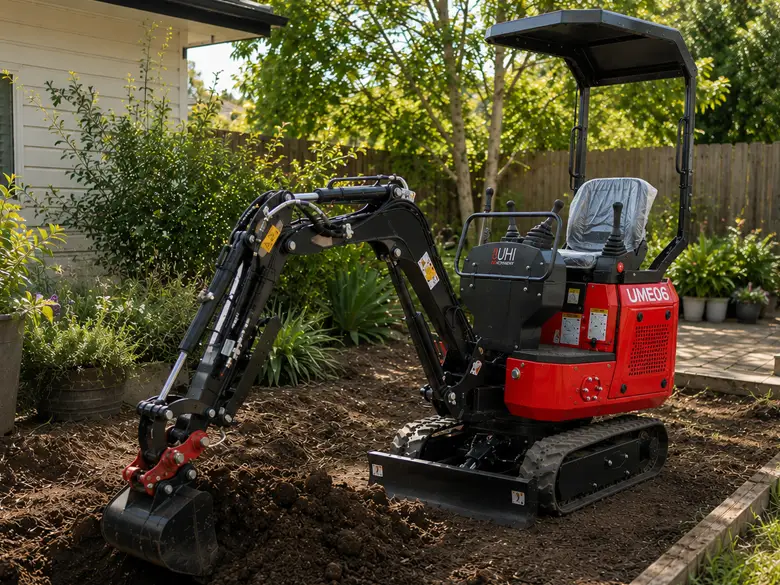

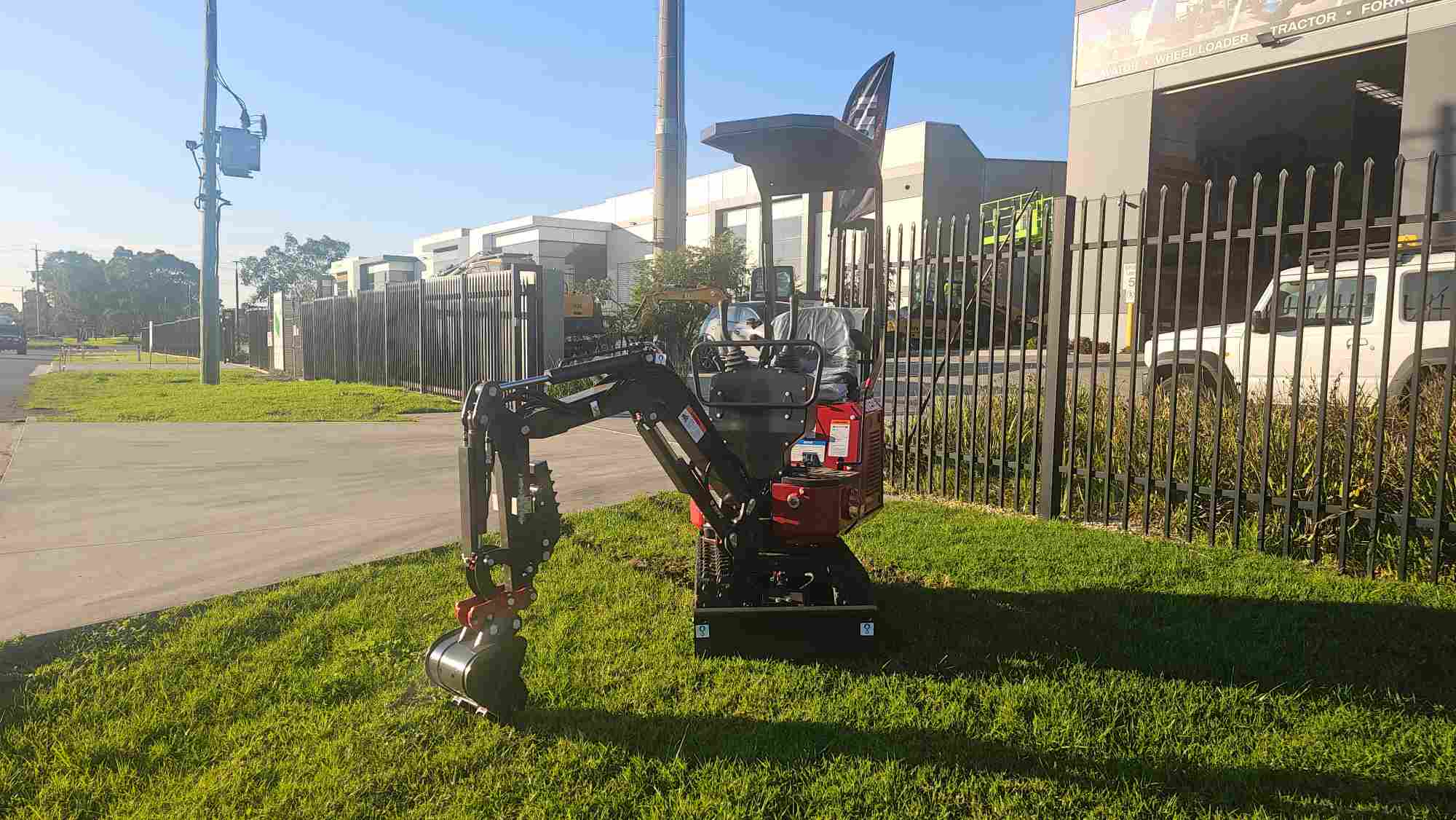

UME06 Mini Excavator
A compact 635 kg mini excavator featuring a Briggs & Stratton engine, rubber tracks and a 0.018 m³ standard bucket. The UME06 combines a 700 mm chassis width with a maximum digging depth of 1,250 mm.
635 kg
Machine weight
700 mm
Chassis width
1,250 mm
Max. digging depth
Briggs & Stratton engine
19N1 engine with 306 cc displacement and a rated power of 10 hp / 3600.
Hydraulic performance
Gear pump with a flow rate of 26.6 L/min and a working pressure of 16 MPa.
Boom swing
Boom swing of 48° to the left and 45° to the right, with a maximum digging radius of 2,342 mm.

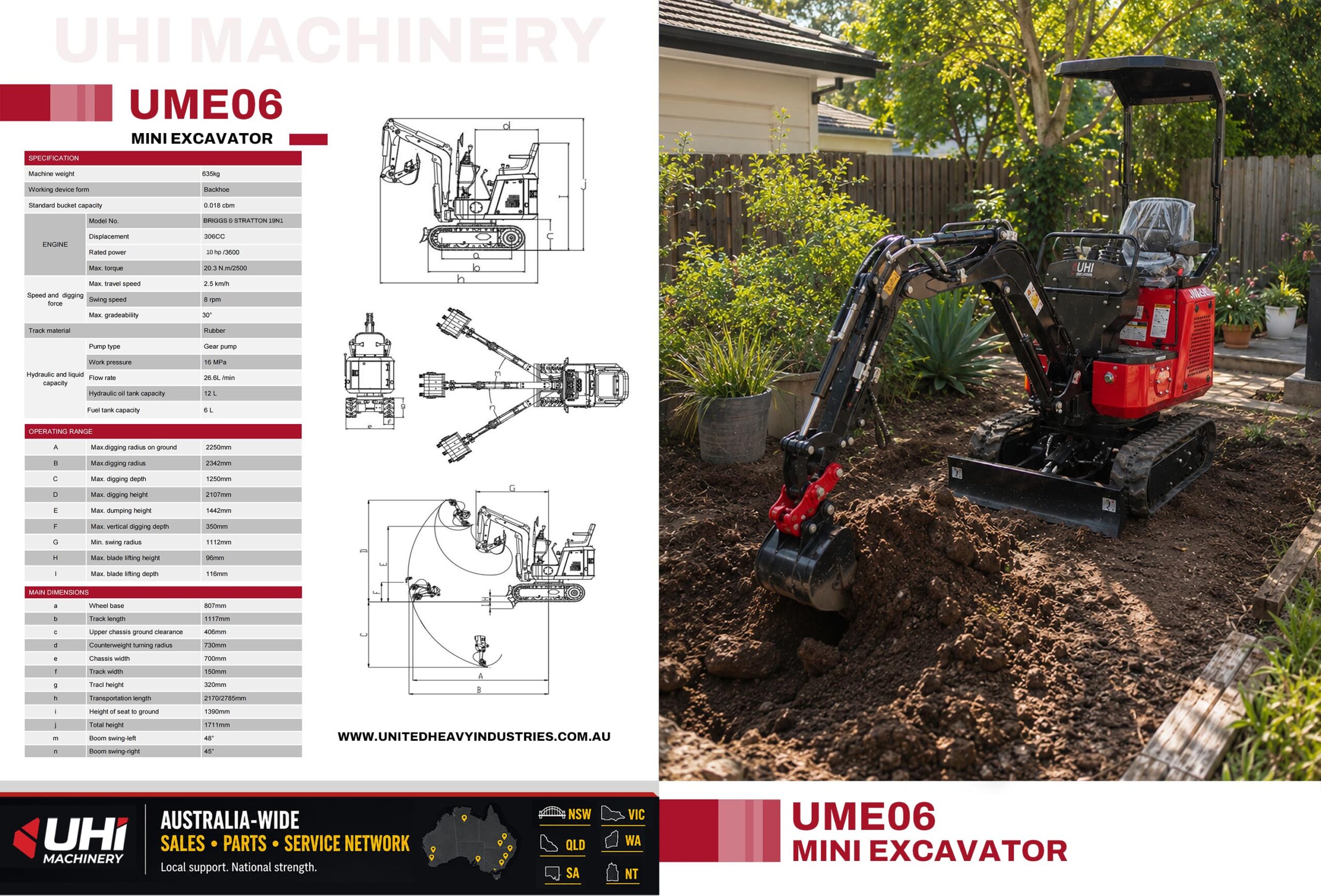

Technical specifications
| Machine weight | 635 kg |
|---|---|
| Working device form | Backhoe |
| Standard bucket capacity | 0.018 m³ |
| Engine | BRIGGS & STRATTON 19N1 |
| Displacement | 306 cc |
| Rated power | 10 hp / 3600 |
| Max. torque | 20.3 N.m / 2500 |
| Track material | Rubber |
| Max. travel speed | 2.5 km/h |
|---|---|
| Swing speed | 8 rpm |
| Max. gradeability | 30° |
| Pump type | Gear pump |
| Work pressure | 16 MPa |
| Flow rate | 26.6 L/min |
| Hydraulic oil tank capacity | 12 L |
| Fuel tank capacity | 6 L |
| Max. digging radius on ground | 2250 mm |
|---|---|
| Max. digging radius | 2342 mm |
| Max. digging depth | 1250 mm |
| Max. digging height | 2107 mm |
| Max. dumping height | 1442 mm |
| Max. vertical digging depth | 350 mm |
| Min. swing radius | 1112 mm |
| Max. blade lifting height | 96 mm |
| Max. blade lifting depth | 116 mm |
| Wheel base | 807 mm |
|---|---|
| Track length | 1117 mm |
| Upper chassis ground clearance | 406 mm |
| Counterweight turning radius | 730 mm |
| Chassis width | 700 mm |
| Track width | 150 mm |
| Track height | 320 mm |
| Transportation length | 2170/2785 mm |
| Height of seat to ground | 1390 mm |
| Total height | 1711 mm |
| Boom swing-left | 48° |
| Boom swing-right | 45° |
