Description

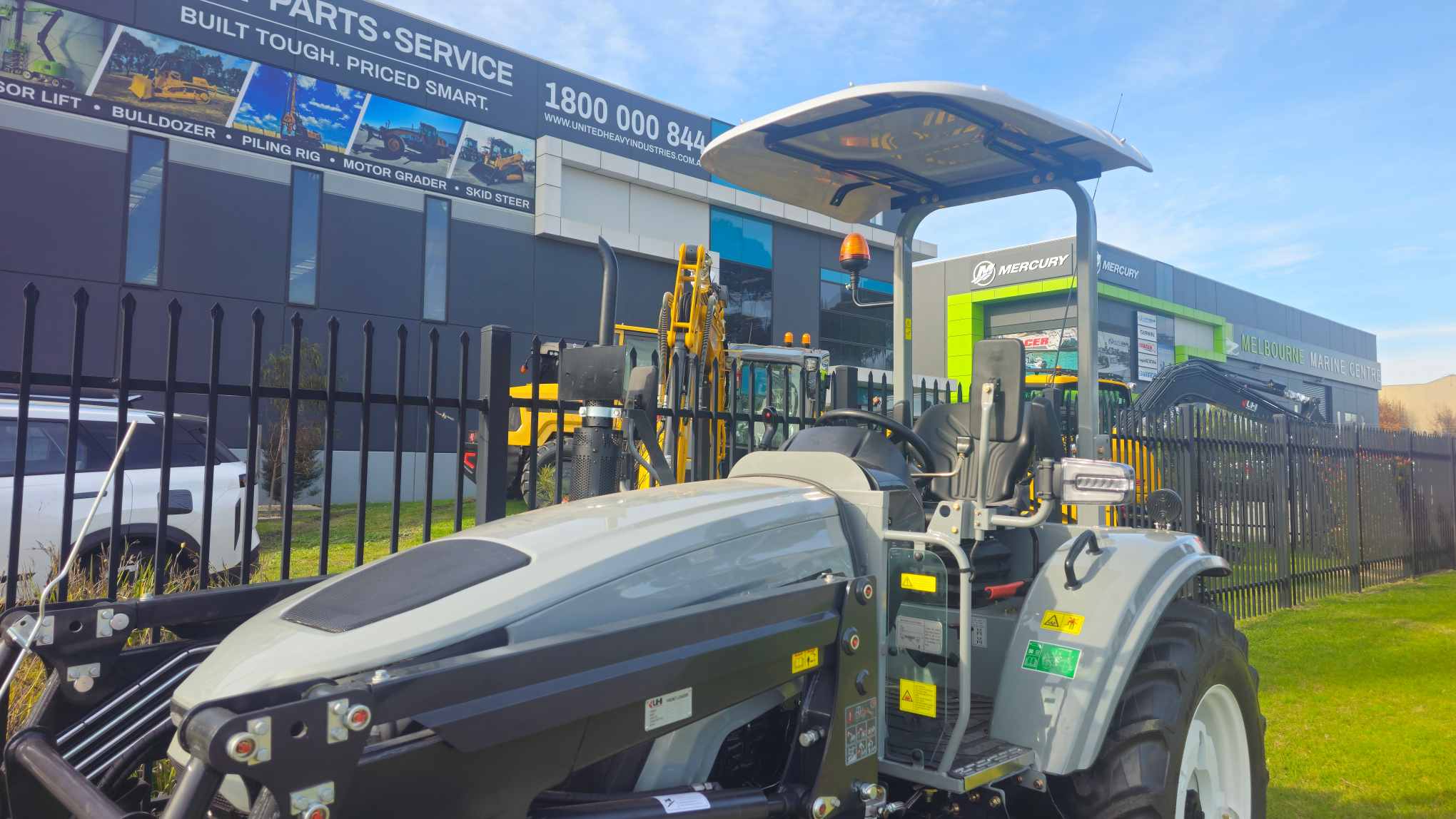

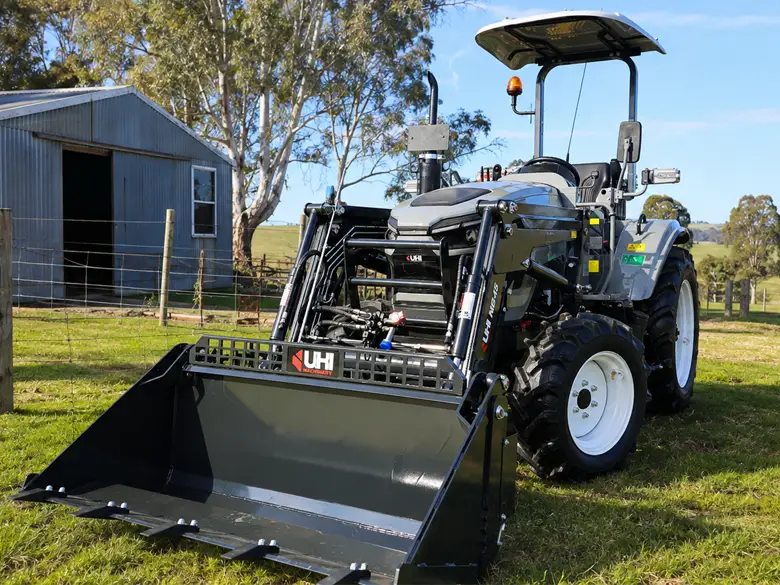

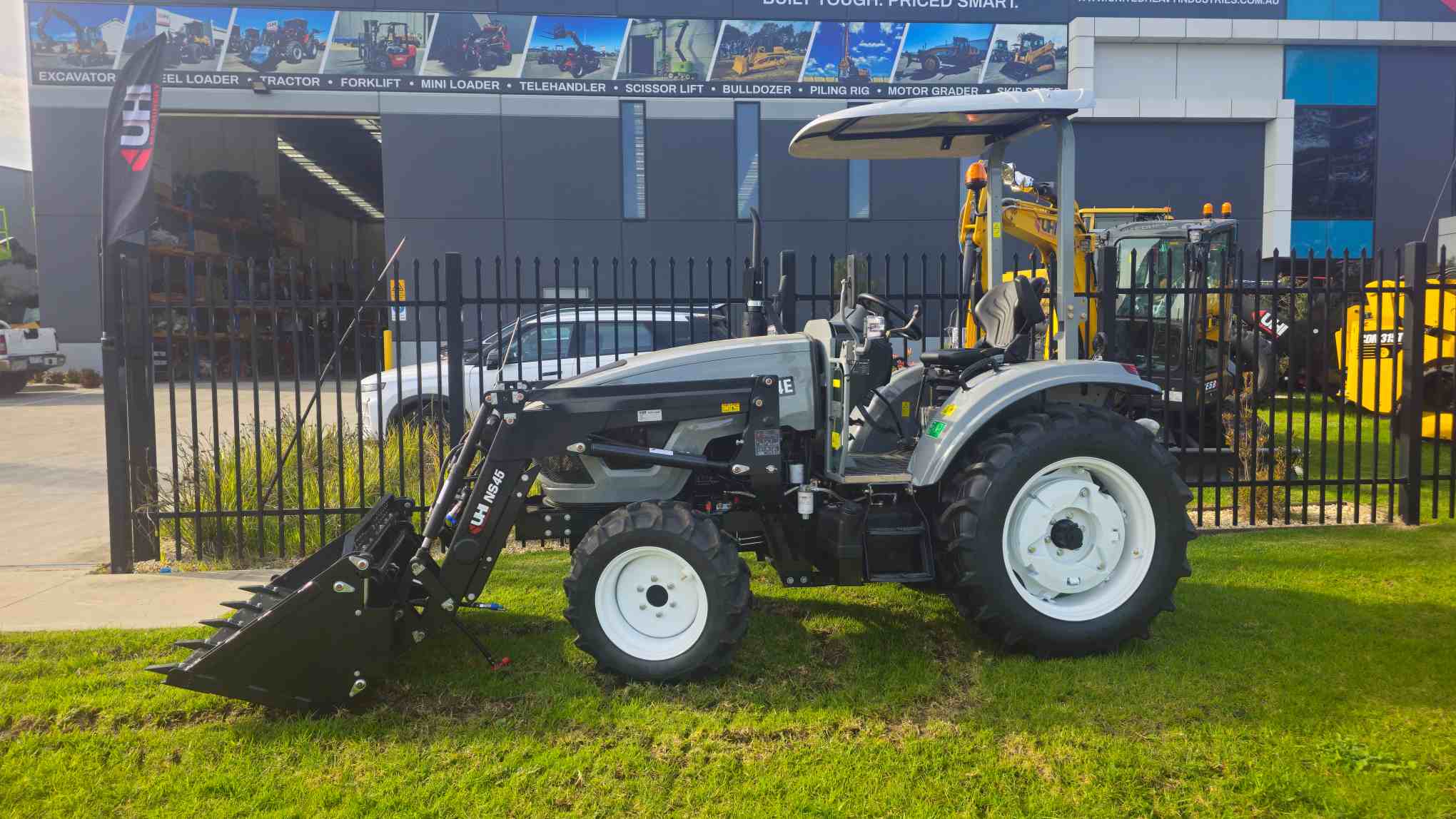

Premium Series Tractor
LGF454
Compact power. Practical versatility.
A high-clearance tractor combining a practical loader platform, strong rear linkage and operator-focused controls for productive day-to-day work.
Features
A refined compact platform focused on straightforward control, implement flexibility and dependable long-term operation.
High-Clearance Chassis
A compact, stable chassis supports confident access across uneven ground and restricted working areas.

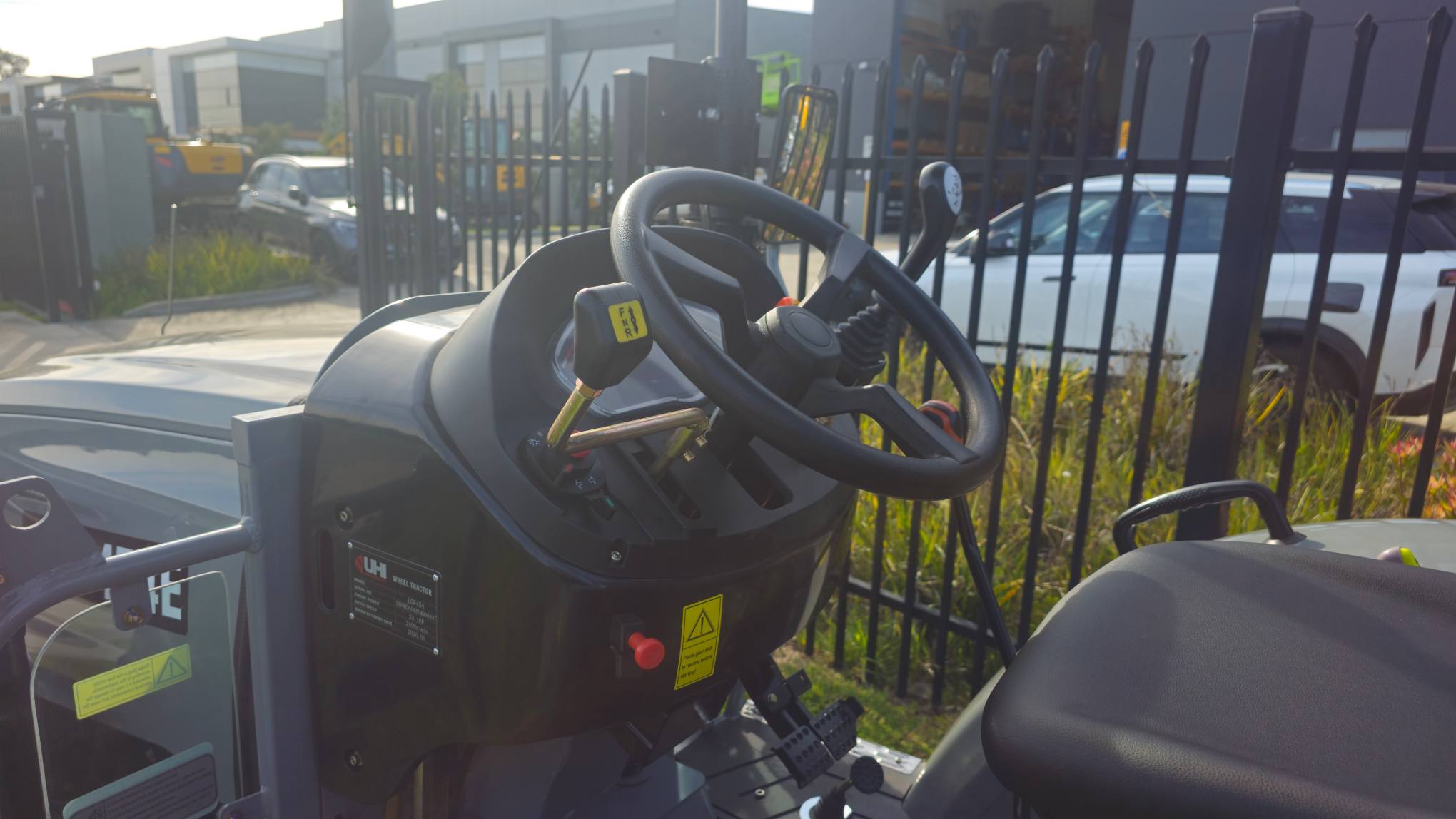

Shuttle Direction Control
Forward-reverse shuttle control and synchronisation support smooth, efficient direction changes during loader and field work.
Broad Implement Compatibility
Two practical PTO operating speeds support a broad range of compatible agricultural implements.

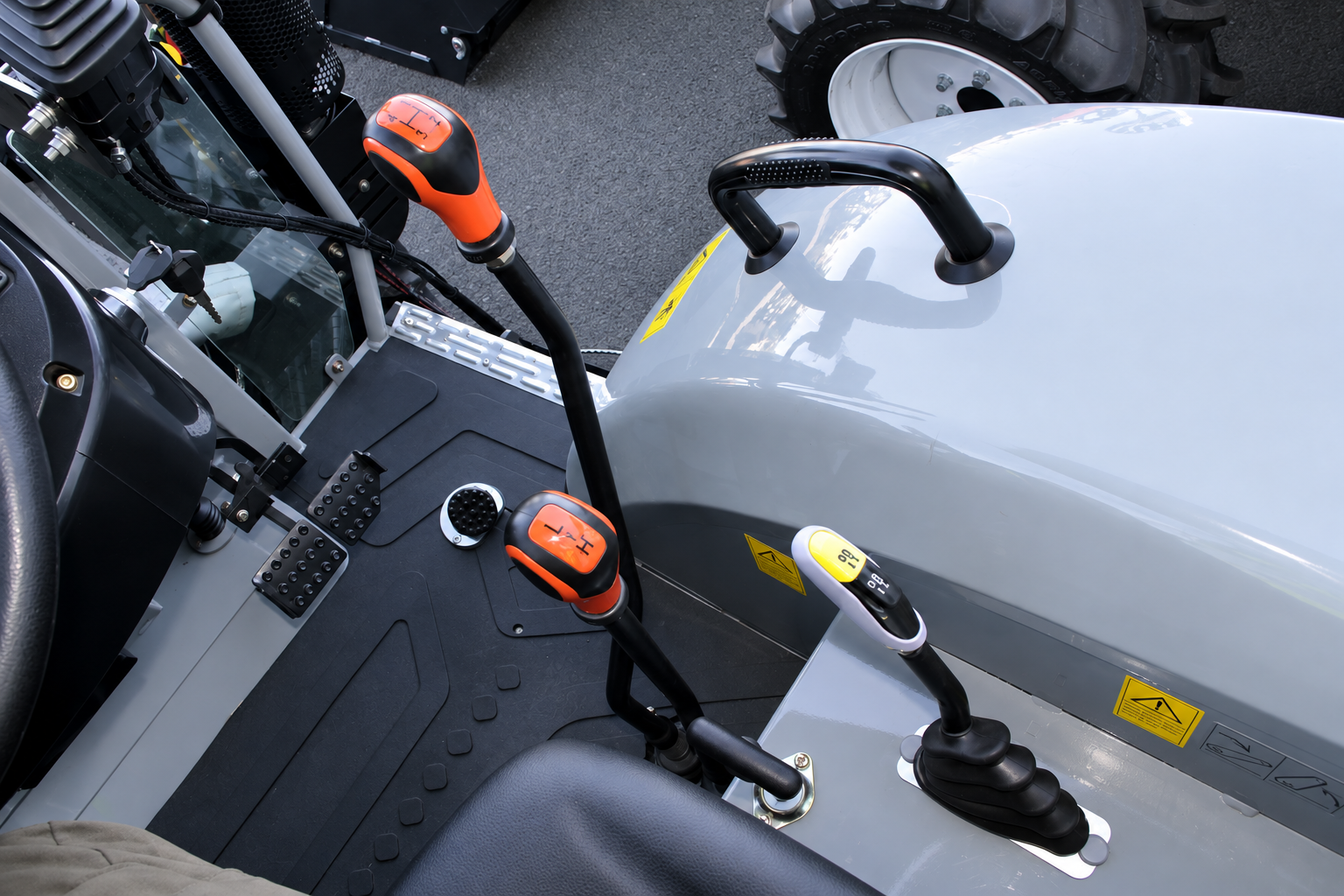

Staged Travel & PTO Control
Separate staged control supports dependable travel and PTO operation when changing between common working tasks.
Wet Brake System
Wet brakes are designed for consistent stopping performance, durability and reduced routine maintenance.

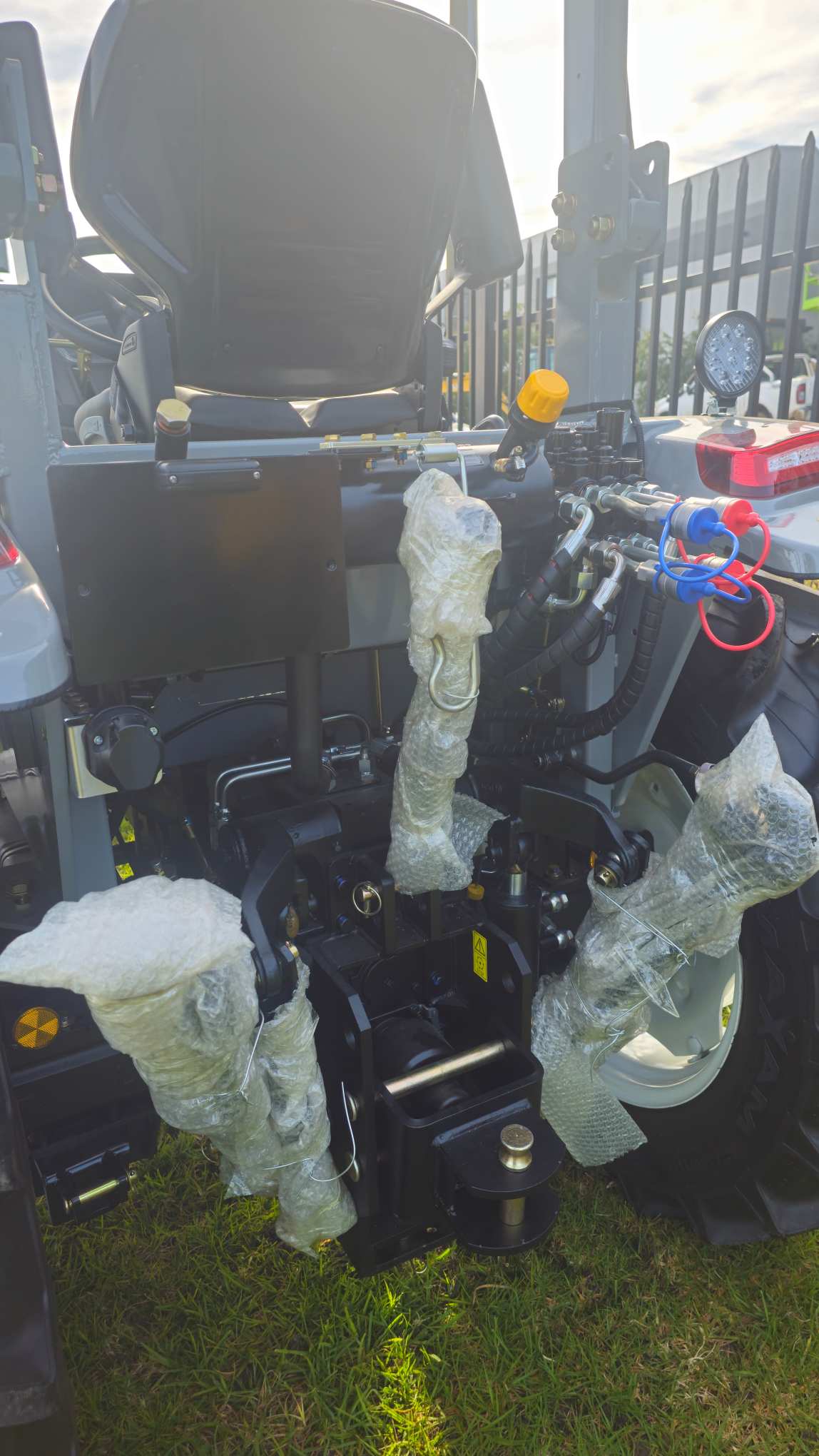

Dual-Cylinder Forced Lift
Twin lift cylinders provide stable loaded movement and positive implement penetration through the rear linkage.
External Lift Control
External controls simplify implement connection and rear-linkage adjustment from beside the machine.
Quick-Attach Flexibility
Quick-coupler lower links and a standardised attachment interface reduce changeover time between compatible implements.
Walvoil Loader Valves
Recognised Italian valve technology supports stable, precise and reliable front-loader control.
Reinforced Loader Cylinders
Large-diameter lifting and tilt cylinders support strong lift performance with controlled lowering.

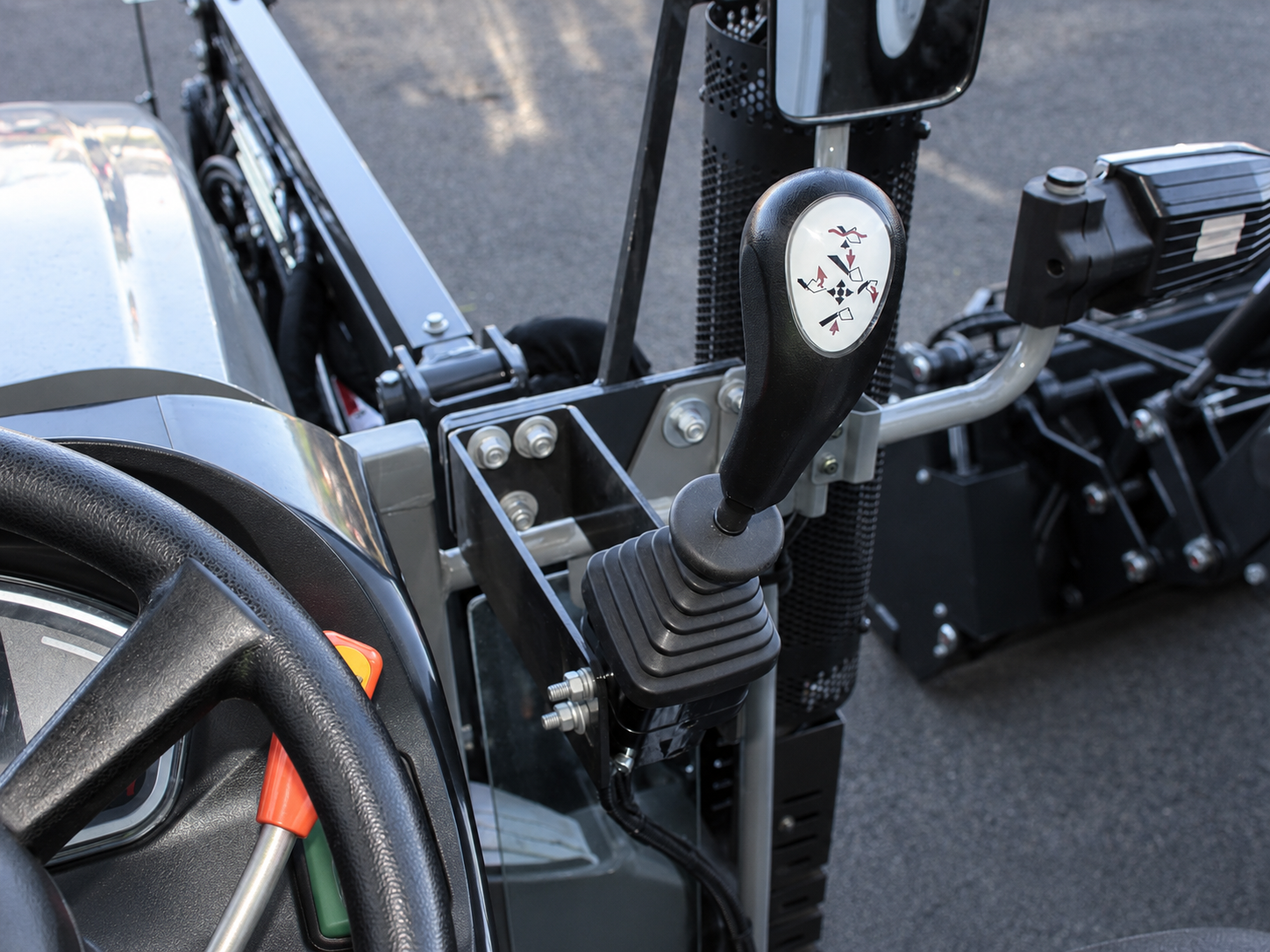

Multi-Function Joystick
An Italian-made single lever controls three hydraulic functions with push-button solenoid operation.
Protected Hydraulic Routing
Hose guards, stainless pipe joints and coated fasteners improve protection in demanding working conditions.

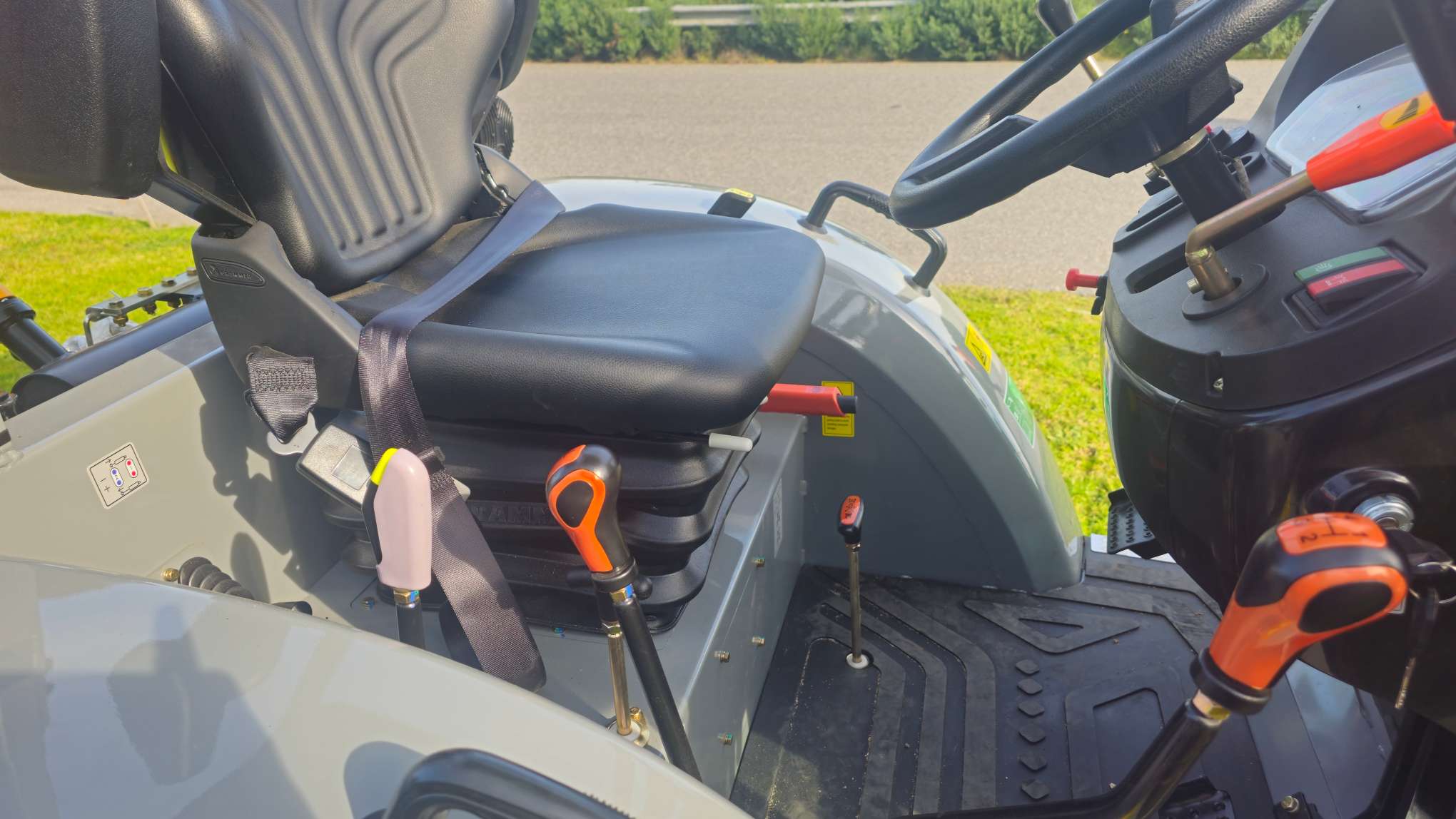

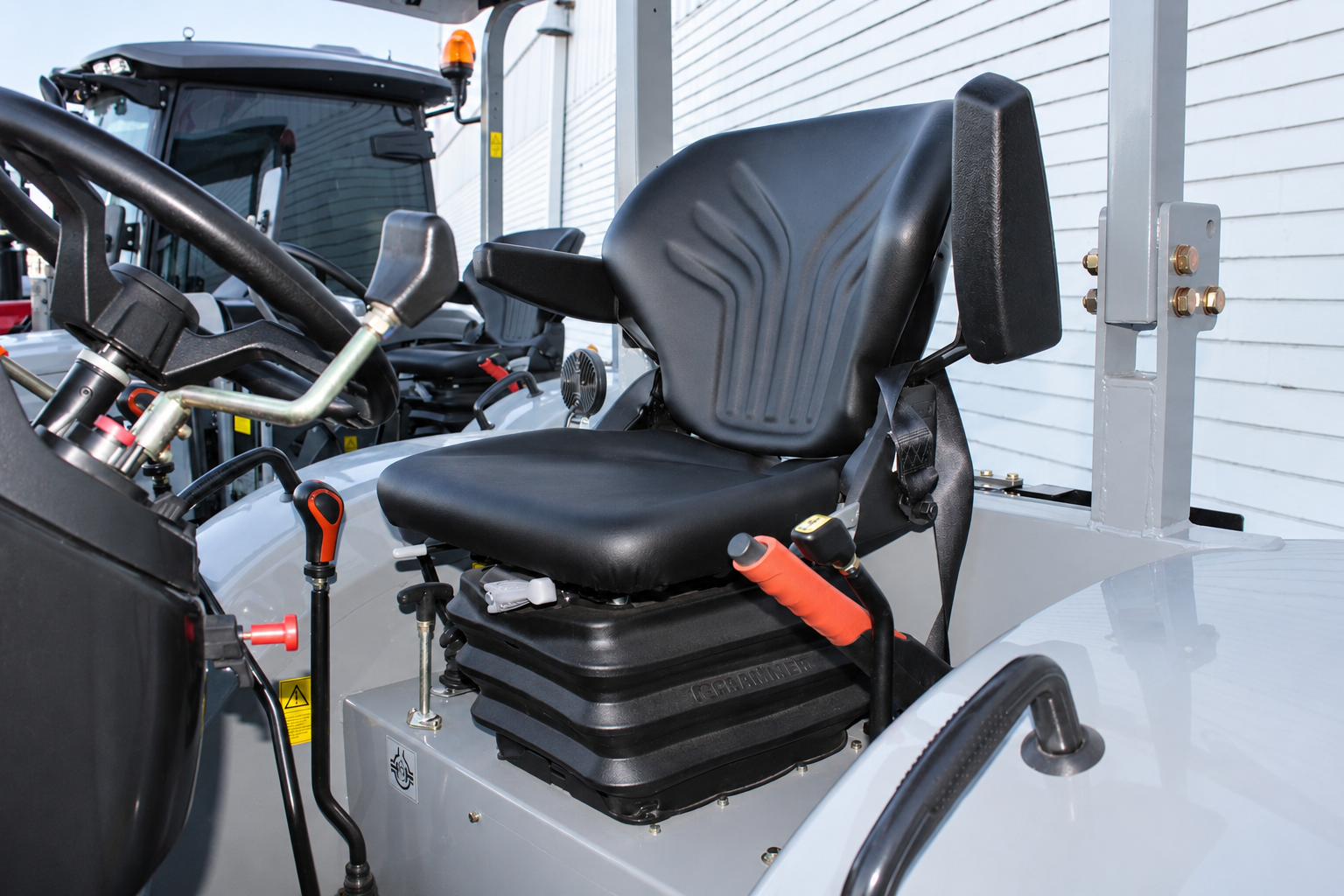

Grammer Suspension Seat
A wide backrest, armrests and multi-level damping improve operator support across rough ground.

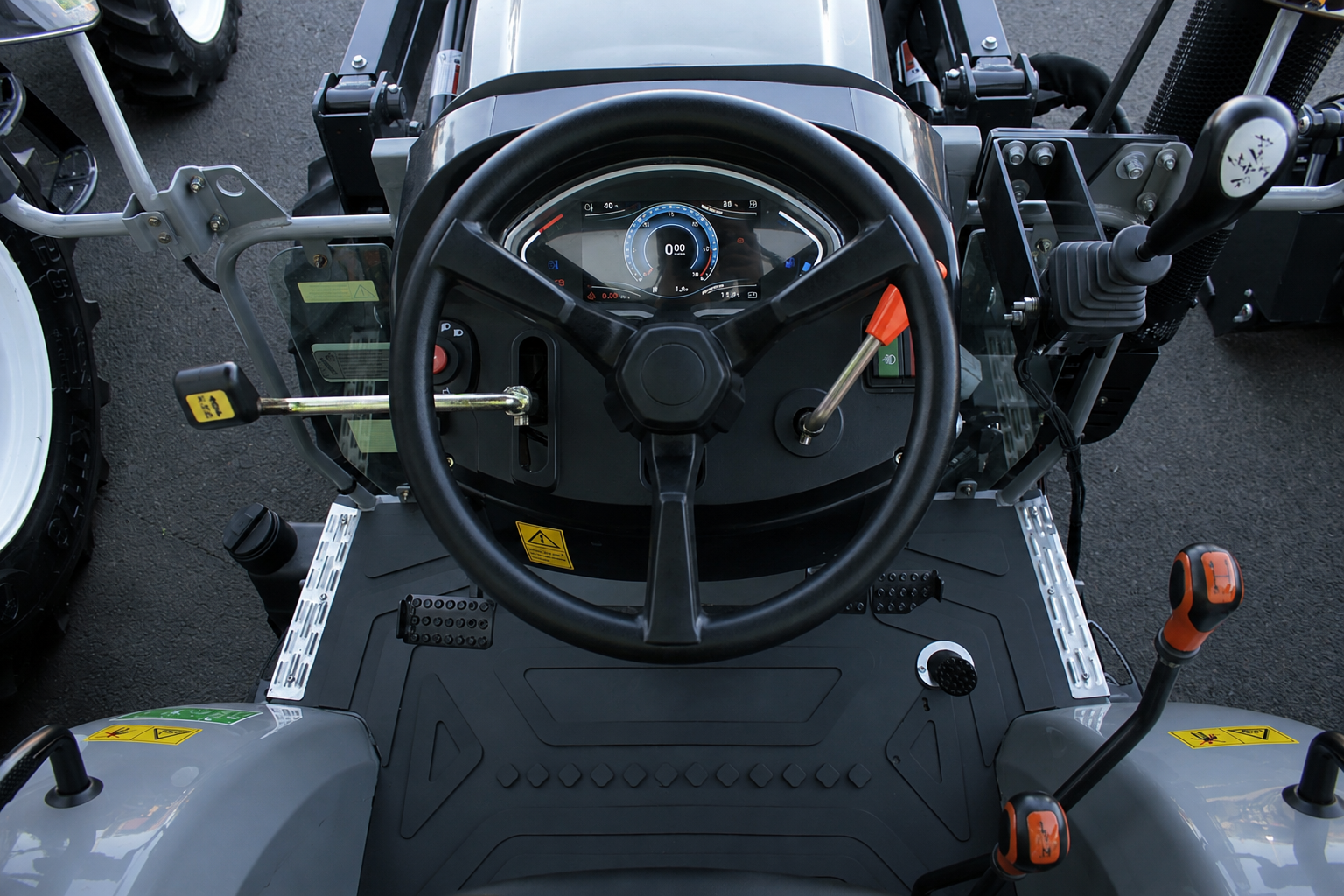

Flat Operator Floor
An open floor and seat-side controls support easy access and a natural working position.
LED Work Lighting
Low-energy, vibration-resistant work lights support visibility during low-light operation.

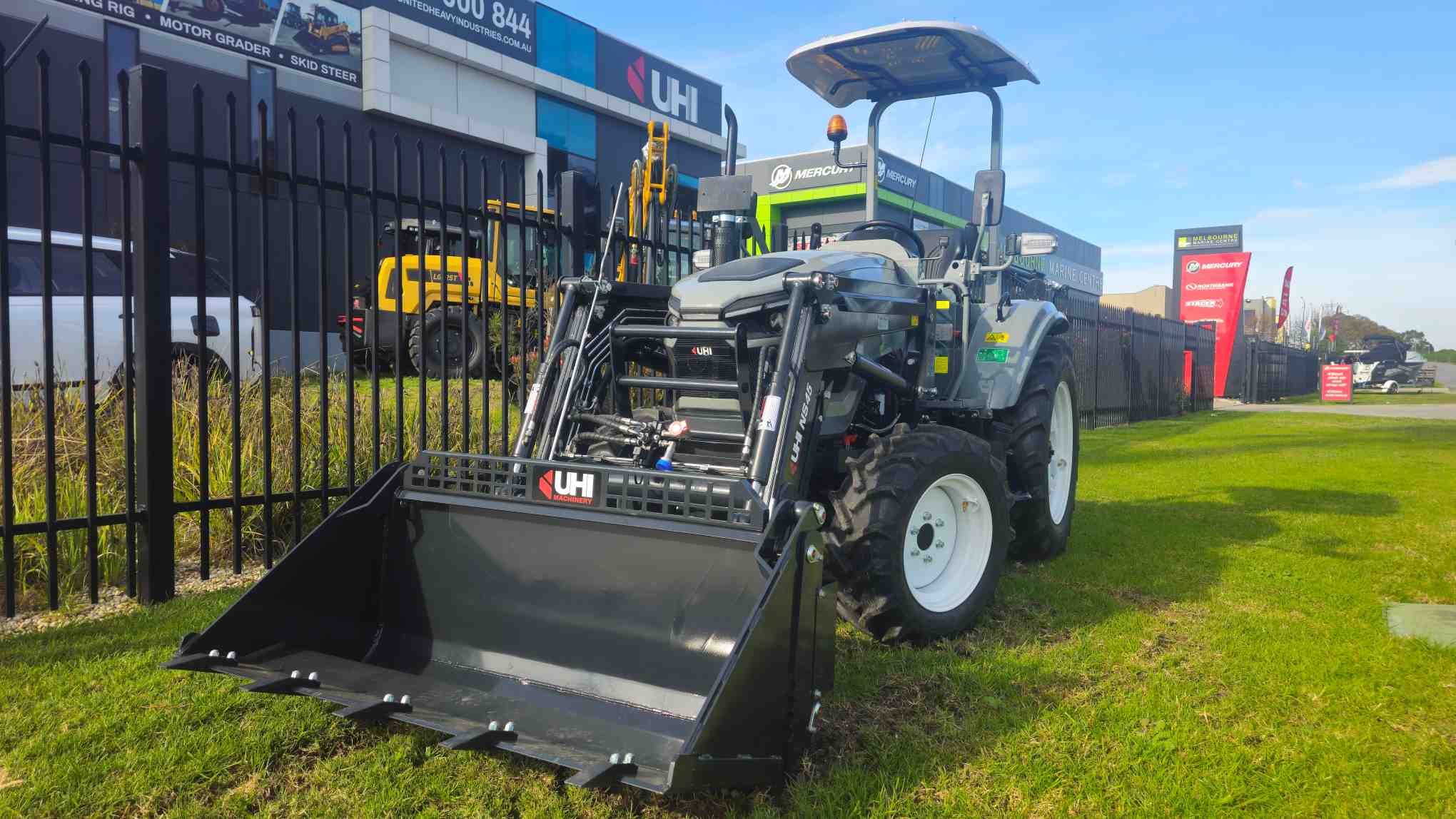

Multi-Function Bucket
The 4-in-1 bucket supports loading, grading, clamping and dozing with one versatile front attachment.
Varta Maintenance-Free Battery
A sealed, vibration-resistant battery supports dependable starting and lower routine care.
Built for a long working life
Electrophoretic-coated panels, cone-seal hydraulic fittings with FKM O-rings, waterproof connectors, gas struts, cooling guards and accessible filters reinforce durability and simplify routine servicing.

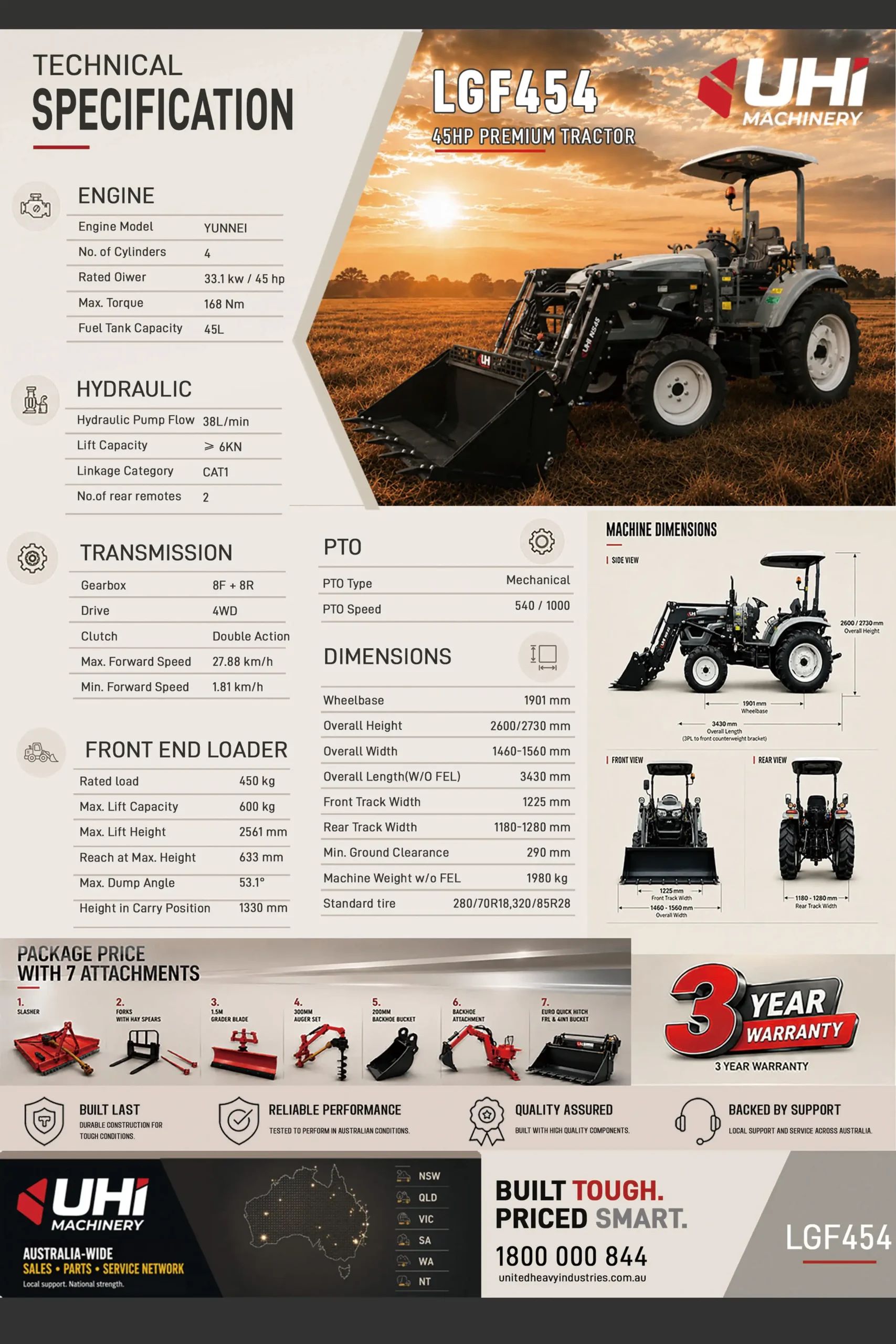

Technical Specifications
Performance and dimensional data are listed once below for quick reference.
Engine
- Engine model
- YUNNEI
- Number of cylinders
- 4
- Rated power
- 33.1 kW / 45 hp
- Maximum torque
- 168 Nm
- Fuel tank capacity
- 45 L
Transmission & Driveline
- Gearbox
- 8F + 8R
- Drive
- 4WD
- Clutch
- Double action
- Maximum forward speed
- 27.88 km/h
- Minimum forward speed
- 1.81 km/h
- 2WD traction, full load
- 1,050 kg
- 4WD traction, full load
- 1,490 kg
PTO & Hydraulic System
- PTO type
- Mechanical
- PTO speed
- 540 / 1,000 r/min
- Hydraulic pump flow
- 38 L/min
- Lift capacity
- ≥ 6 kN
- Linkage category
- CAT 1
- Rear hydraulic remotes
- 2
- 3PL capacity, rated / maximum
- 800 / 1,050 kg

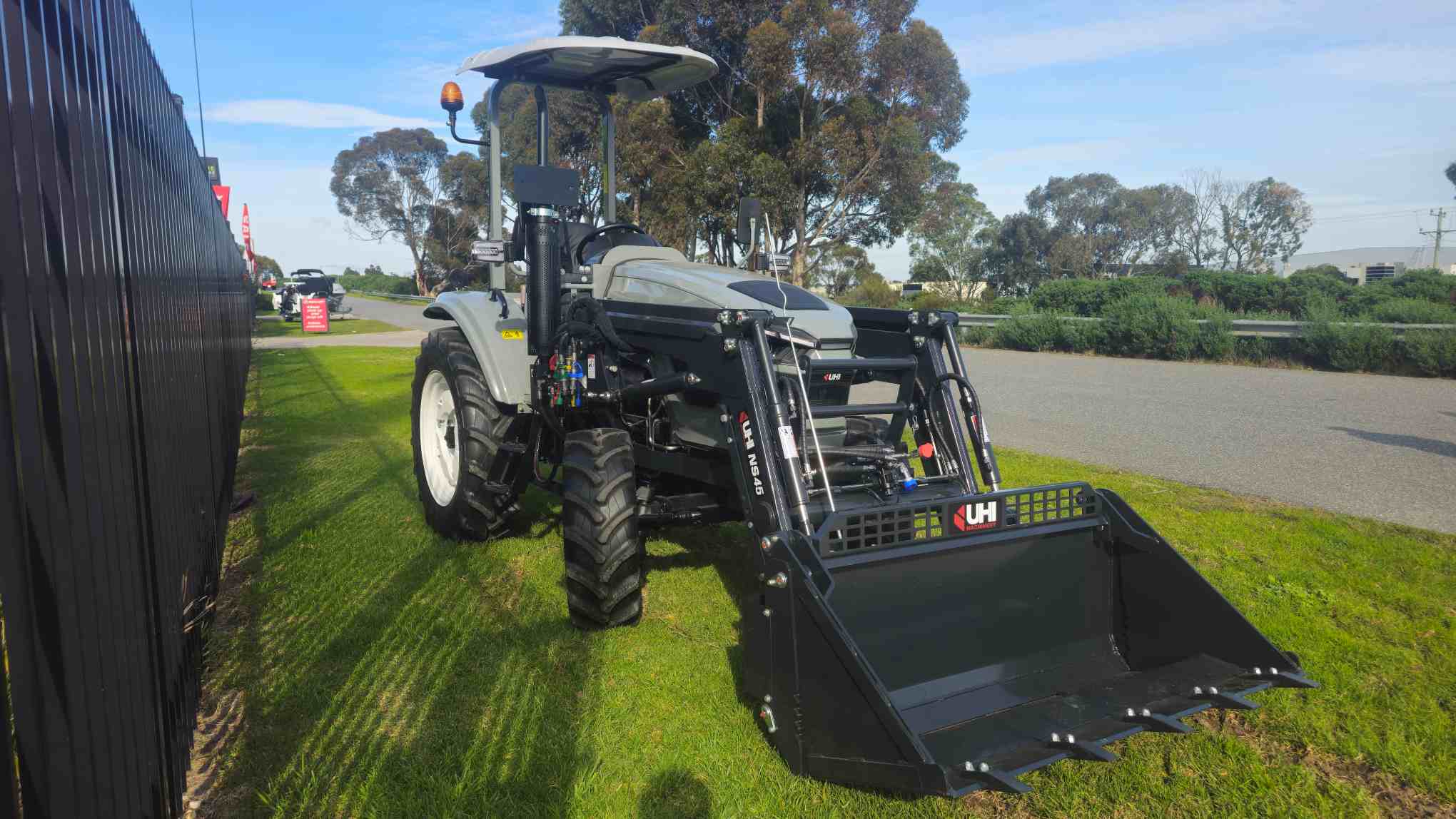

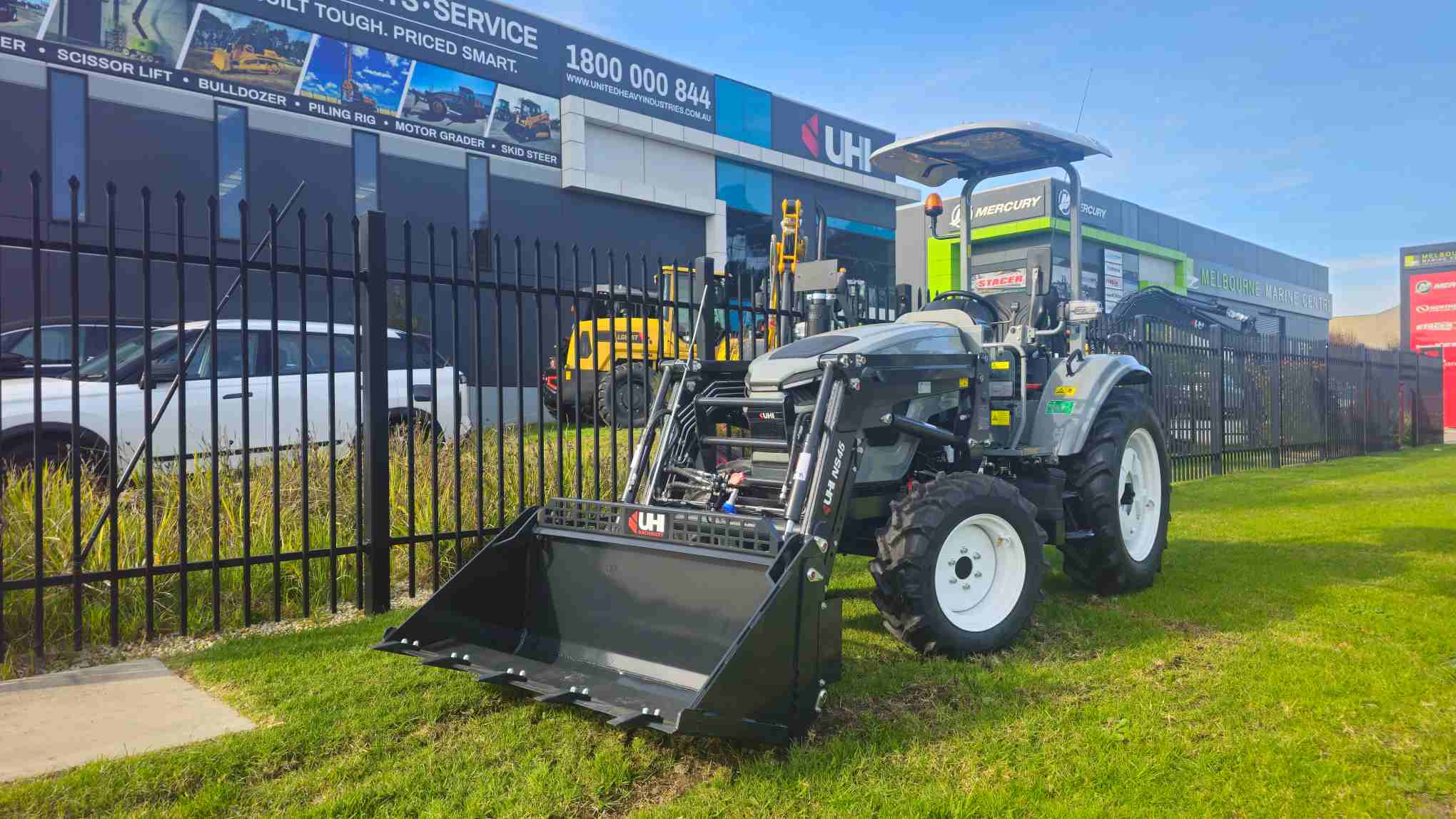

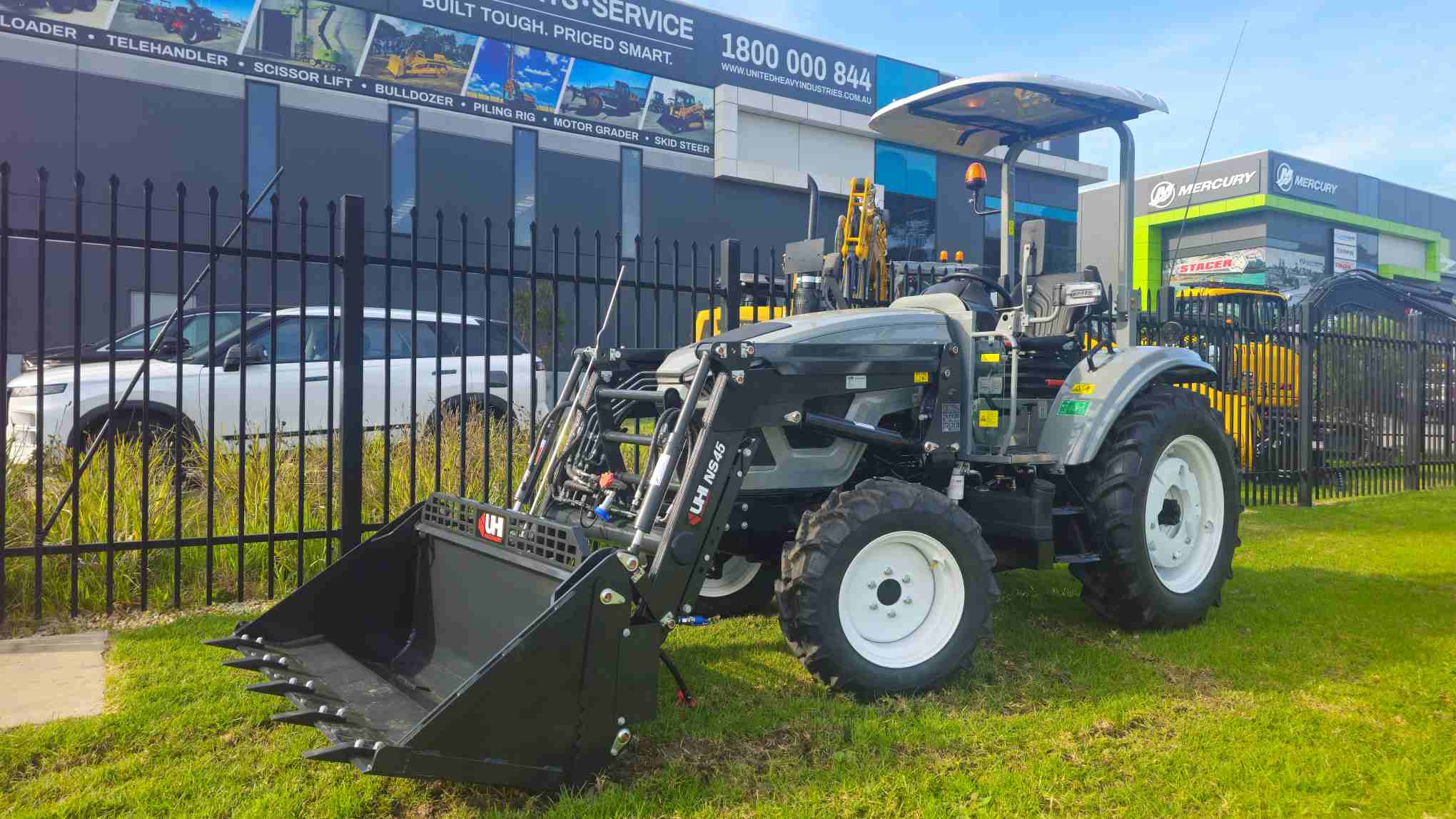

Front-End Loader
- Rated lifting capacity
- 500 kg
- Maximum lifting capacity
- 800 kg
- Maximum lift height
- 2,561 mm
- Reach at maximum height
- 633 mm
- Maximum dump angle
- 53.1°
- Height in carry position
- 1,330 mm
Machine Dimensions
- Wheelbase
- 1,901 mm
- Overall height
- 2,600 / 2,730 mm
- Overall width
- 1,460-1,560 mm
- Overall length without FEL
- 3,430 mm
- Front track width
- 1,225 mm
- Rear track width
- 1,180-1,280 mm
- Minimum ground clearance
- 290 mm
- Machine weight without FEL
- 1,980 kg
- Standard tyres, front / rear
- 280/70R18 / 320/85R28
Attachments shown or described may depend on the selected configuration. Specifications are based on supplied product data and may be updated without notice.
