Description

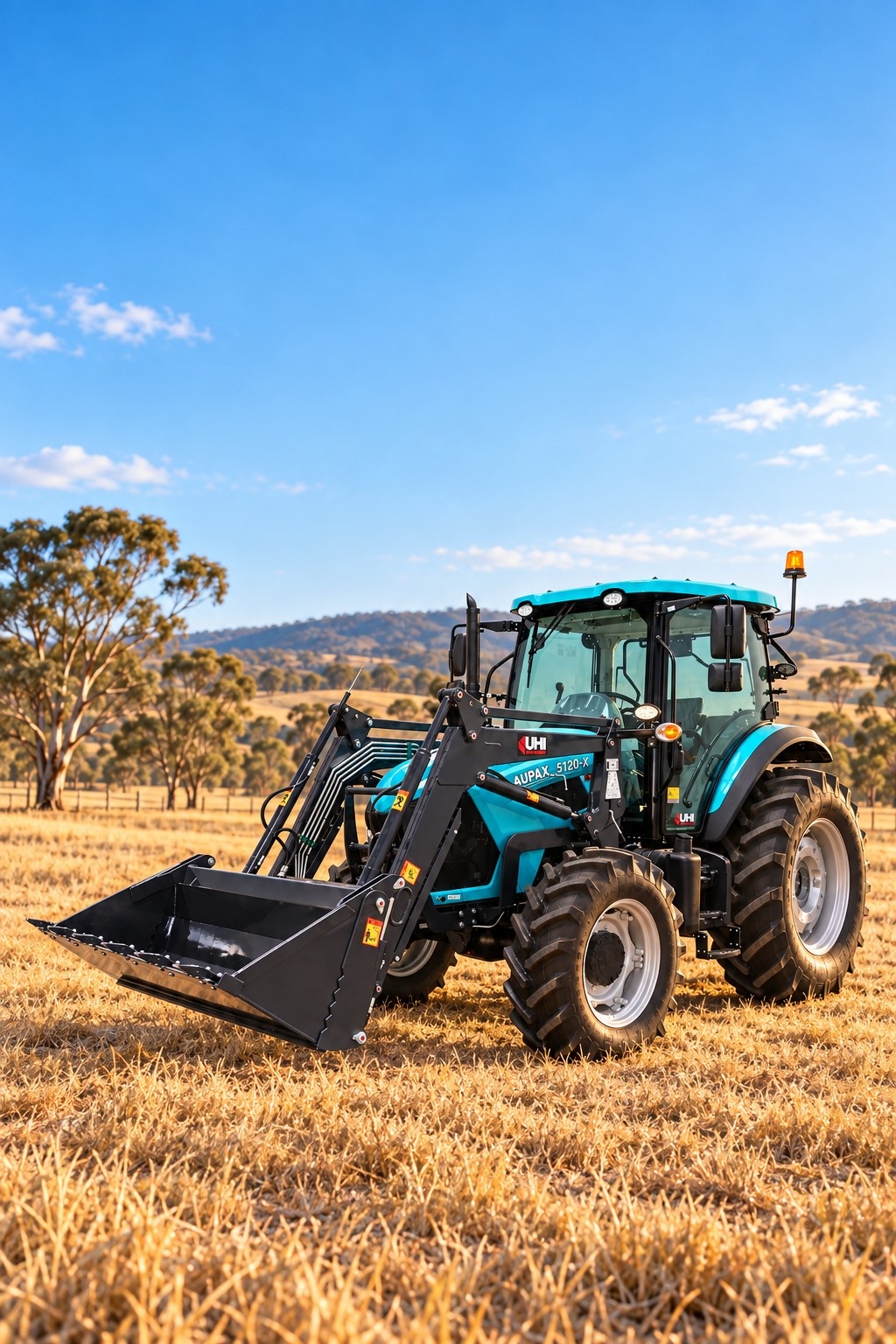

120 HP Elite Cab Tractor
Strong diesel torque, accessible service points and fitted loader versatility for Australian property and field work.
Powertrain & Service Access
120 HP WeiChai diesel with accessible servicing

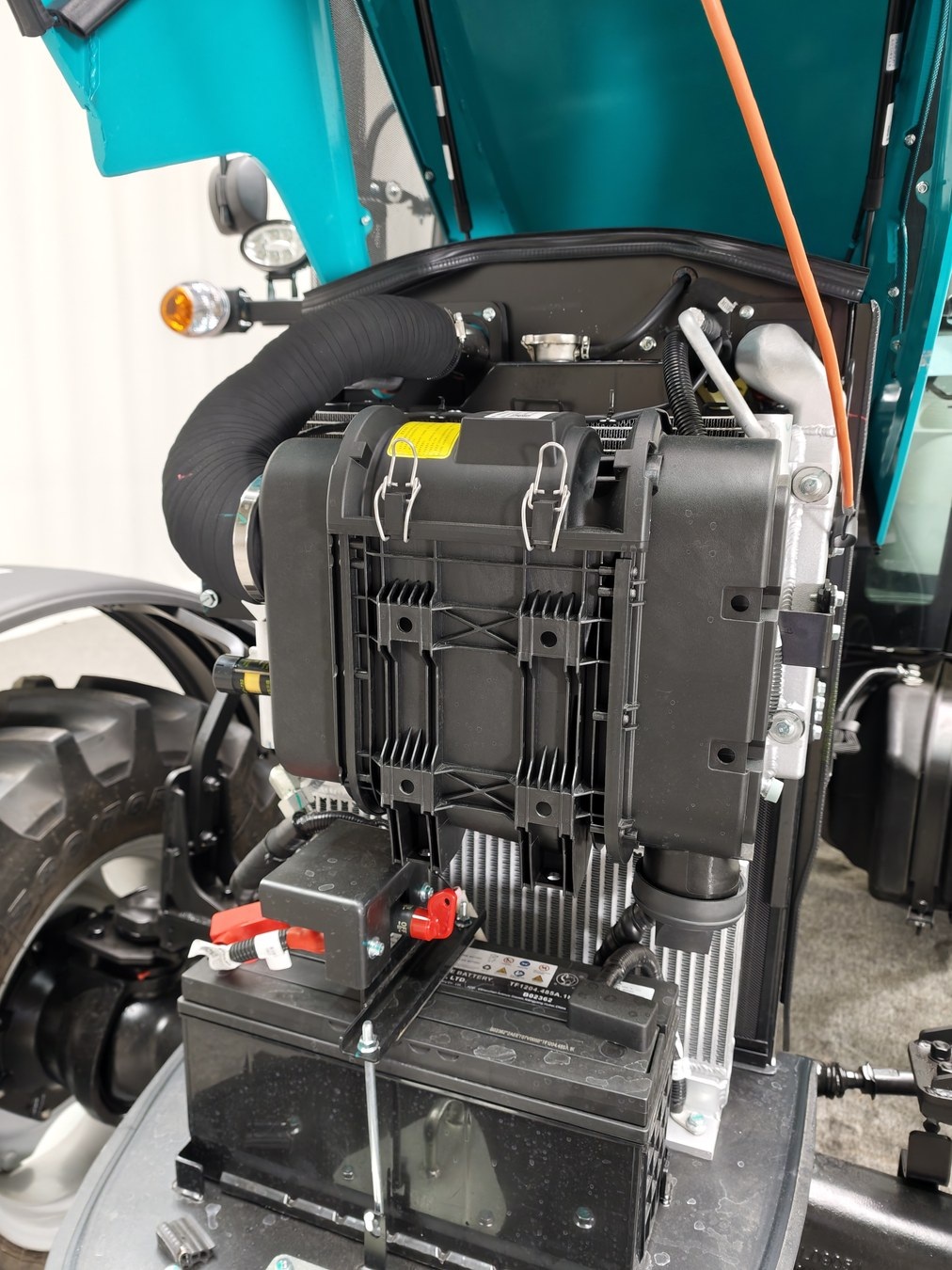

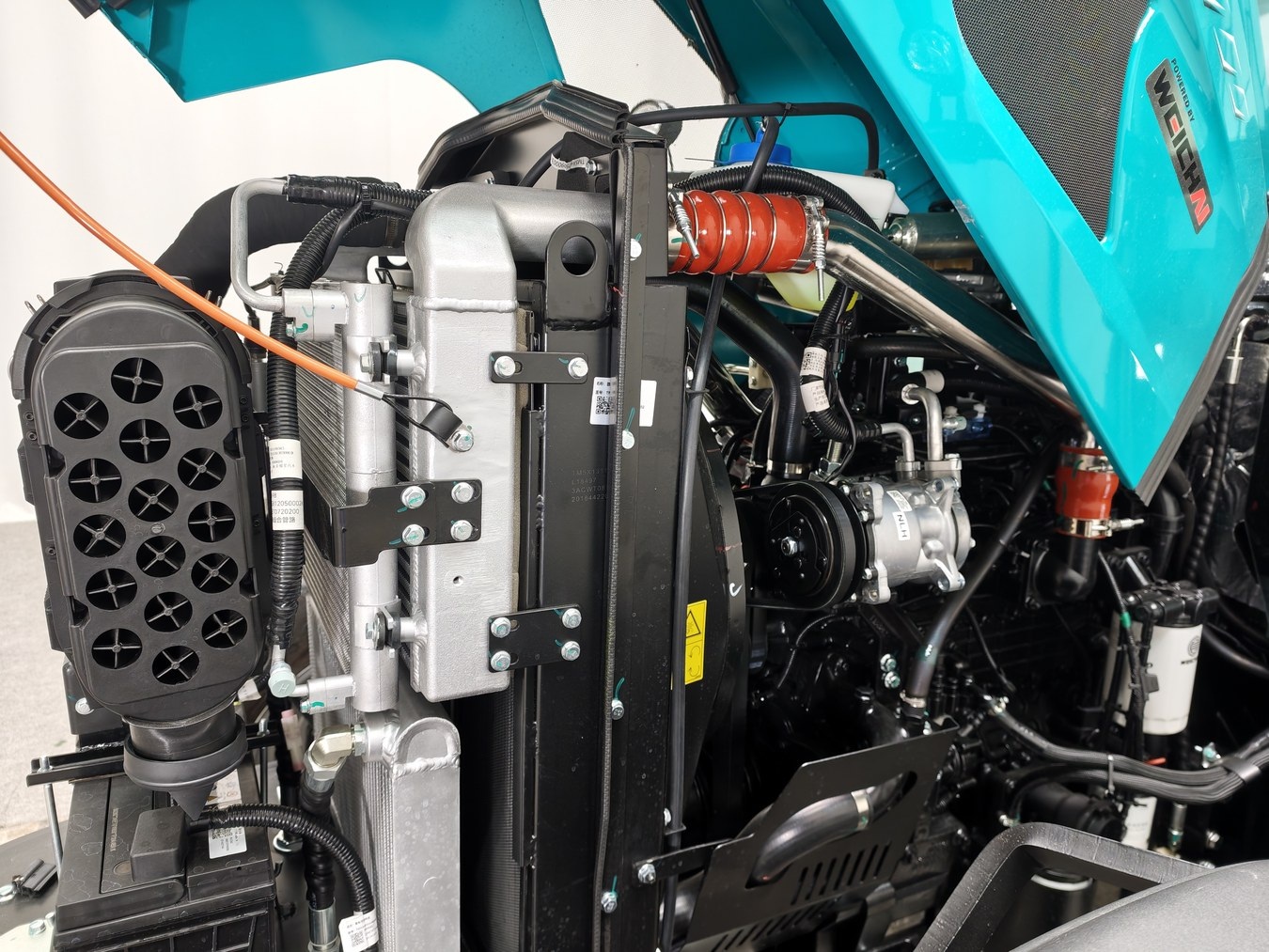

The 5120-X uses a 120 HP WeiChai diesel engine rated at 2200 rpm with up to 563 N·m of torque. Open-bonnet access, visible cooling components and accessible filtration points support routine inspection and maintenance.
- 120 hp rated power
- 563 N·m maximum torque
- 150 L fuel capacity
- 12F + 12R synchro shift

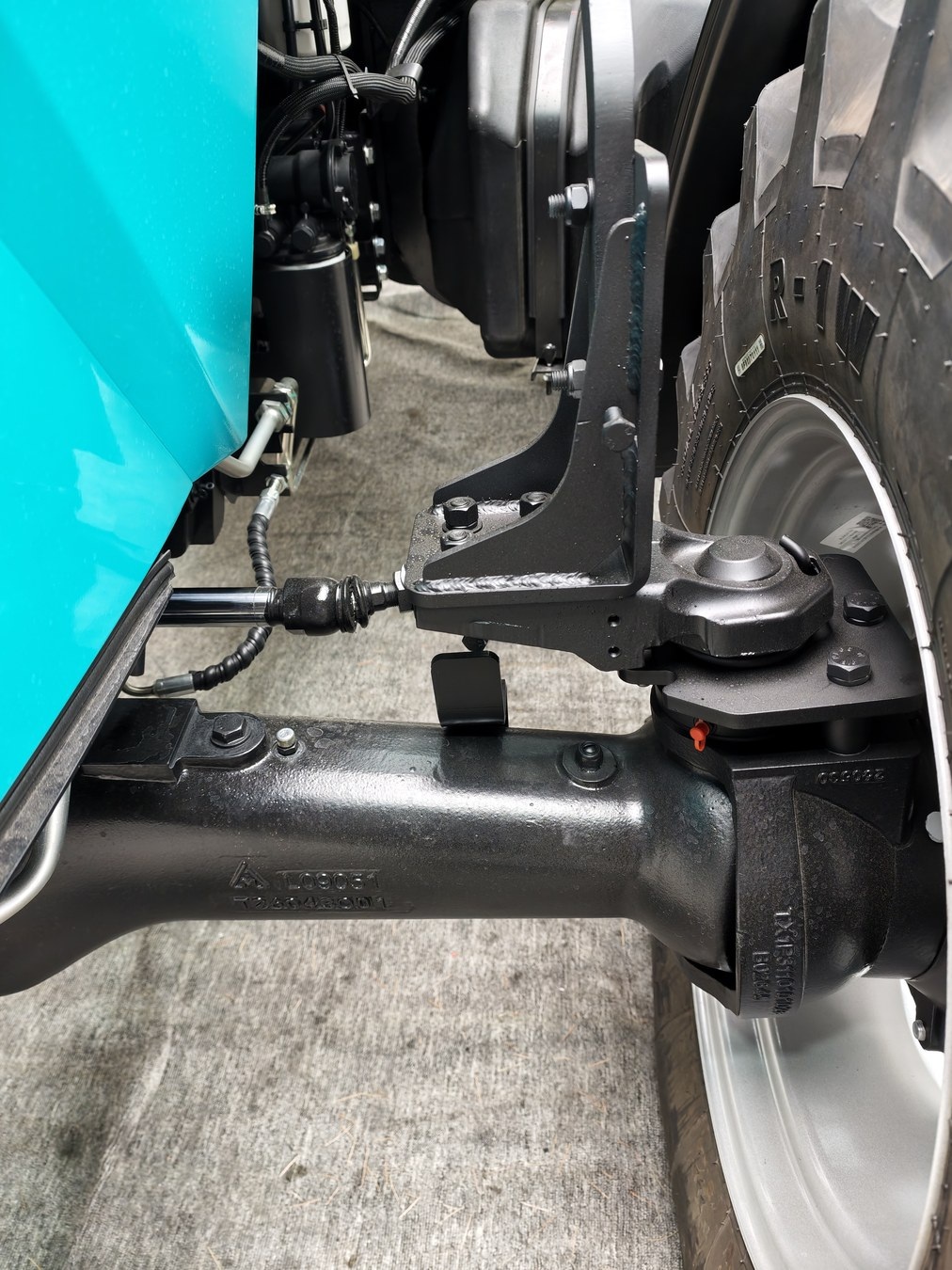

- Mechanical 4WD, mechanical differential lock and wet brakes
Hydraulics & Implement Versatility

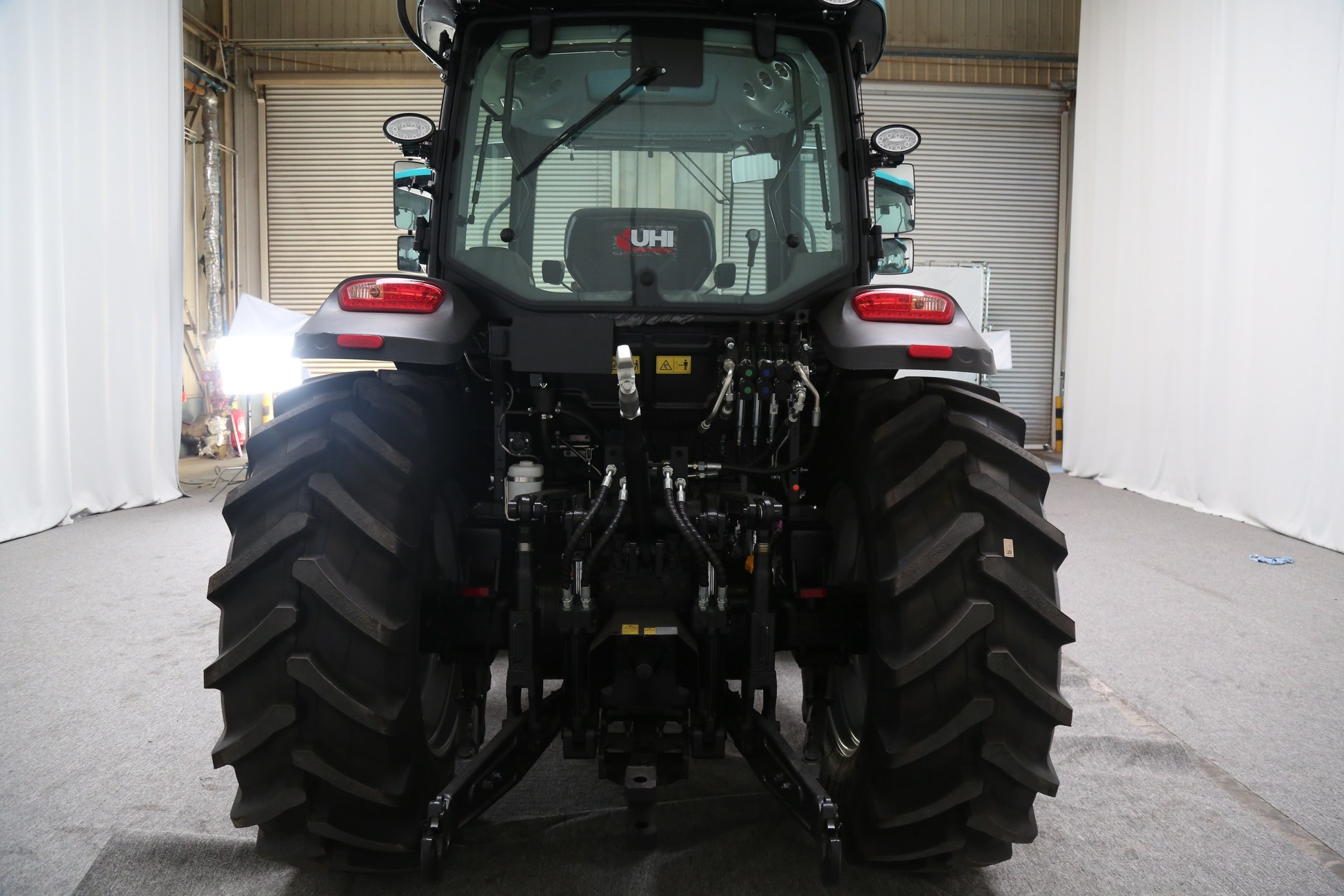

High-flow rear hydraulic support
The model-specific hydraulic pump rating of 51 L/min supports both tractor and front-loader hydraulic functions. The source material specifies three REXROTH rear hydraulic valve functions with float and powered pressure-down lift control.
The Rear 3PL @ 610 mm appears in two forms in the supplied material: the detailed sheet references at least 25 kN, while the overview feature page highlights 28 kN. Both values are preserved here pending final confirmation.
Cab Comfort, Visibility & Controls
The enclosed air-conditioned cab combines wide-step access, a Grammer seat, a visible colour LCD instrument cluster and grouped operating controls for daily use.

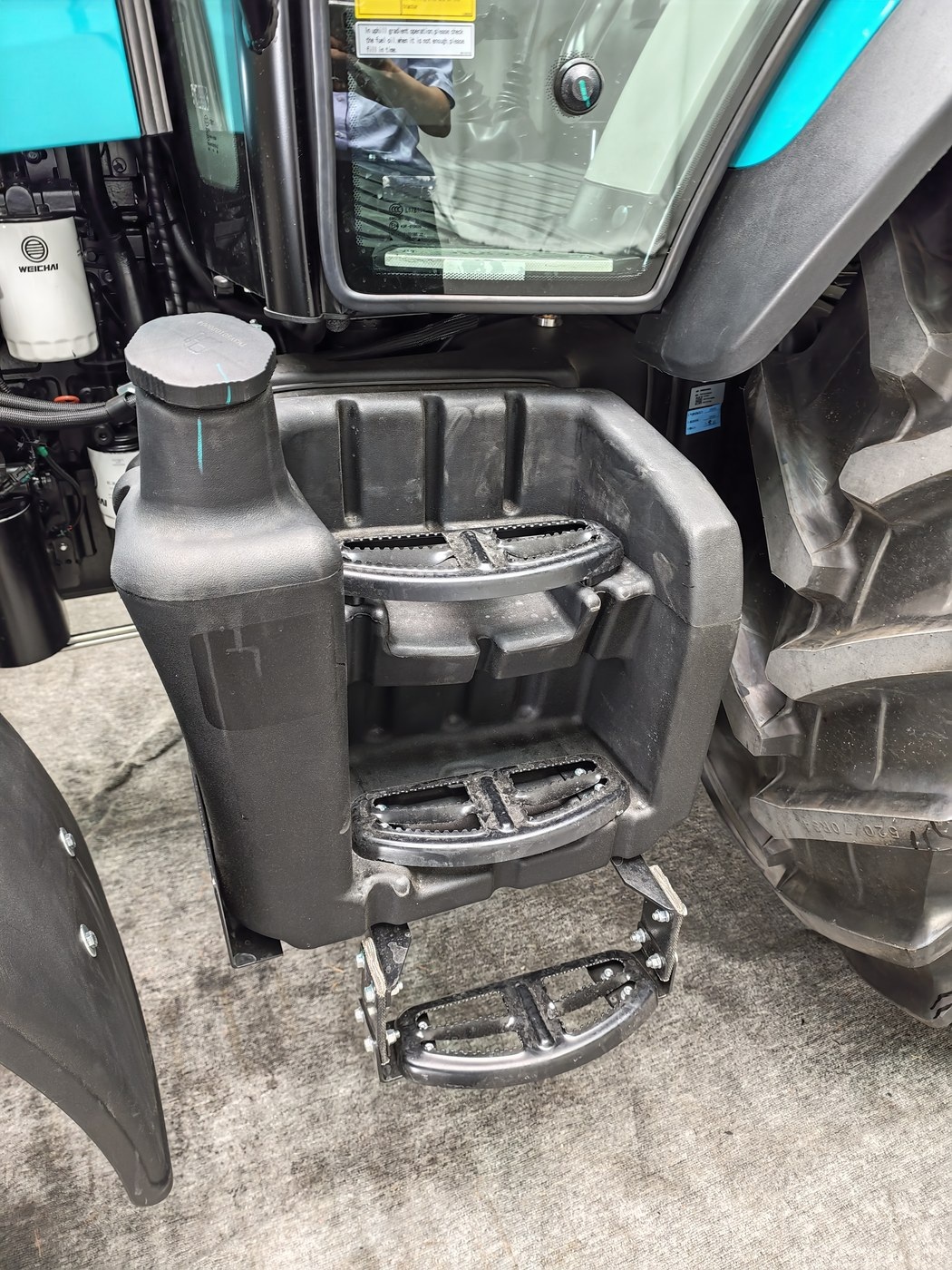

Multi-Step Cab Entry
Open tread steps beneath the glass cab door provide staged entry and exit.
Grammer Fabric Seat
The supplied feature material identifies a Grammer fabric seat for the enclosed operator station.

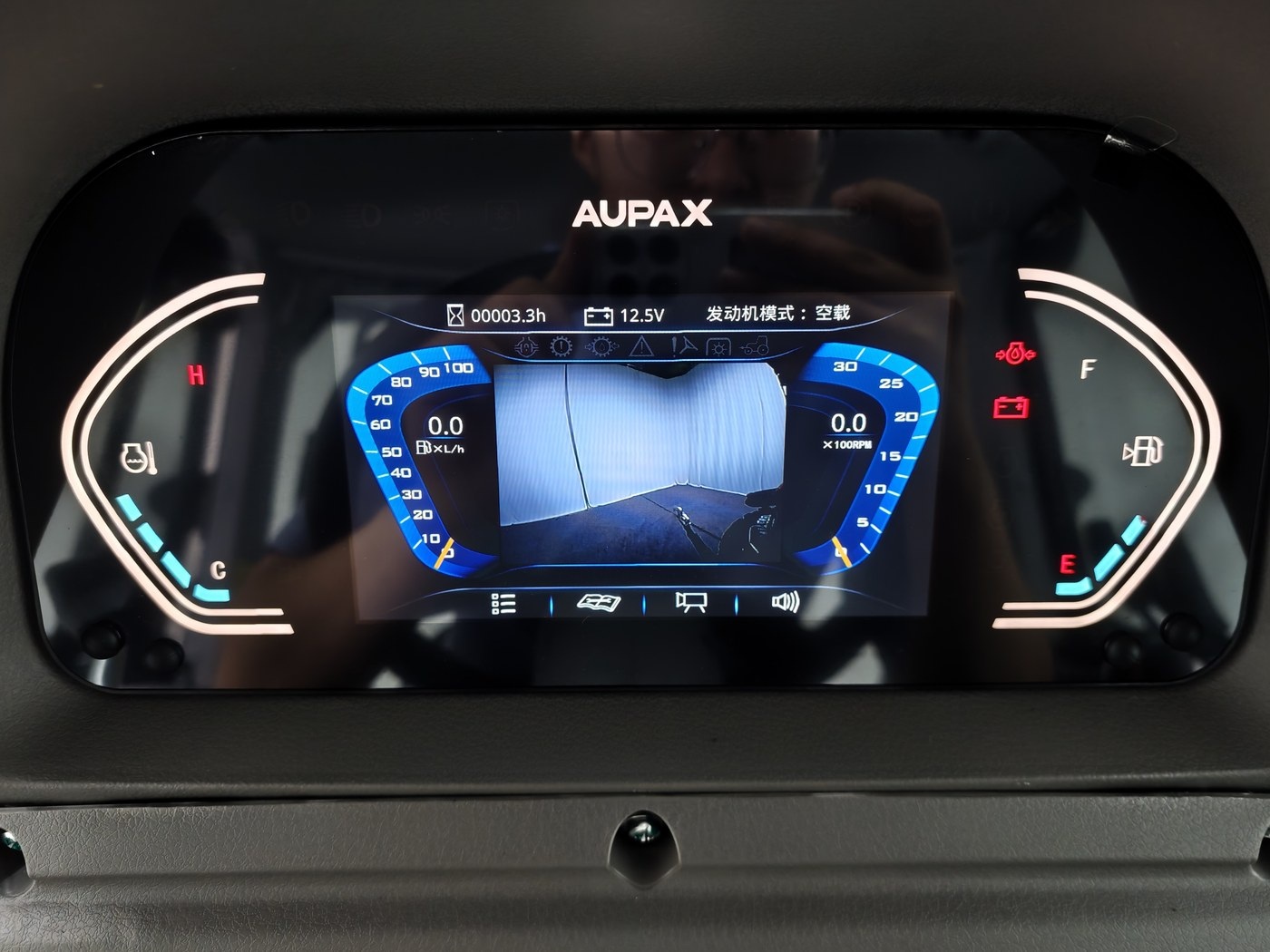

Colour LCD Display
The video-based source shows an illuminated central display with two curved instrument scales. Exact display functions should be confirmed from the operator manual.

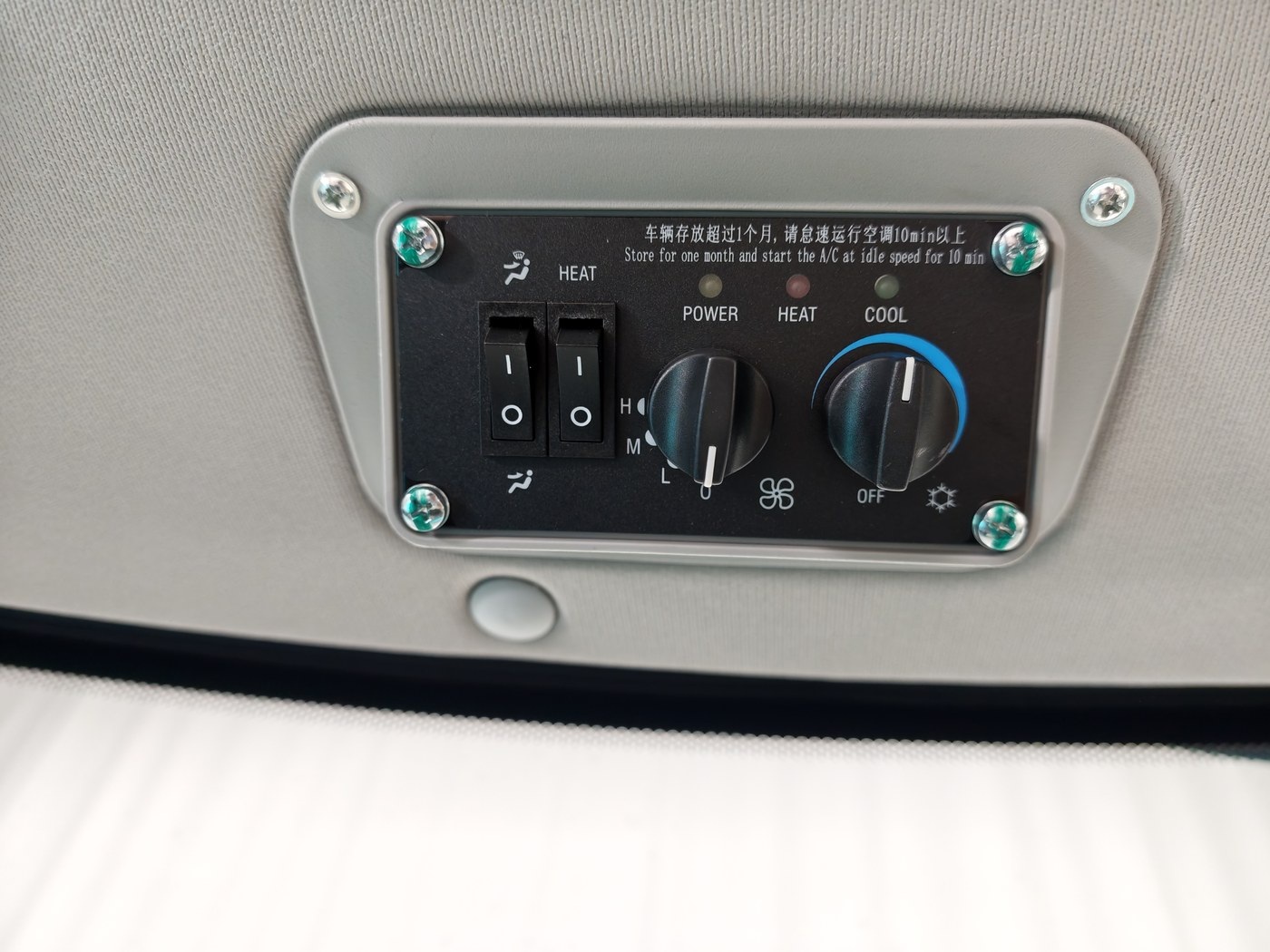

Air-Conditioned Cab
Roof HVAC controls and the specified A/C cabin support warm-weather operation, while large glass areas and side mirrors improve visibility.

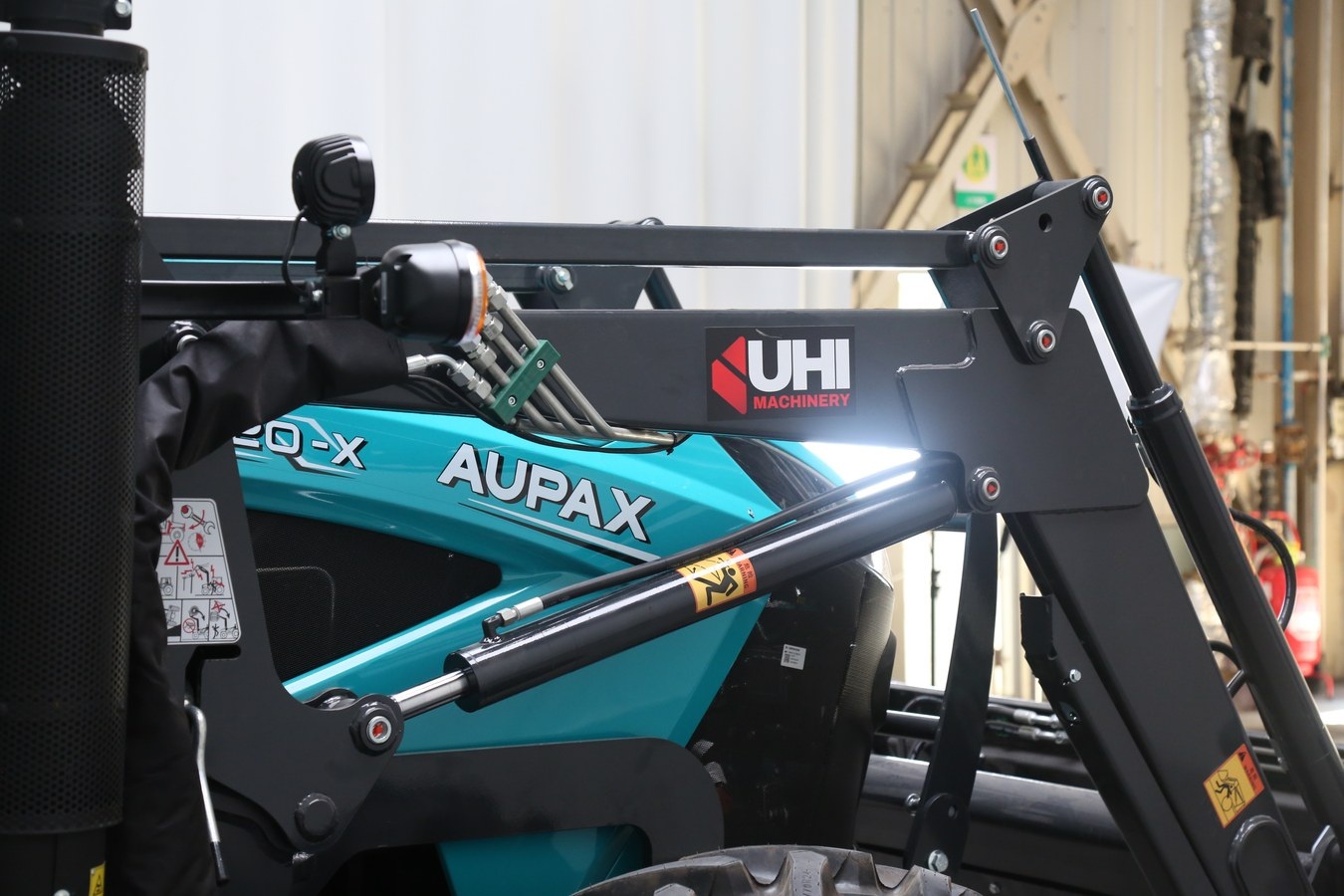

Front-End Loader Engineering

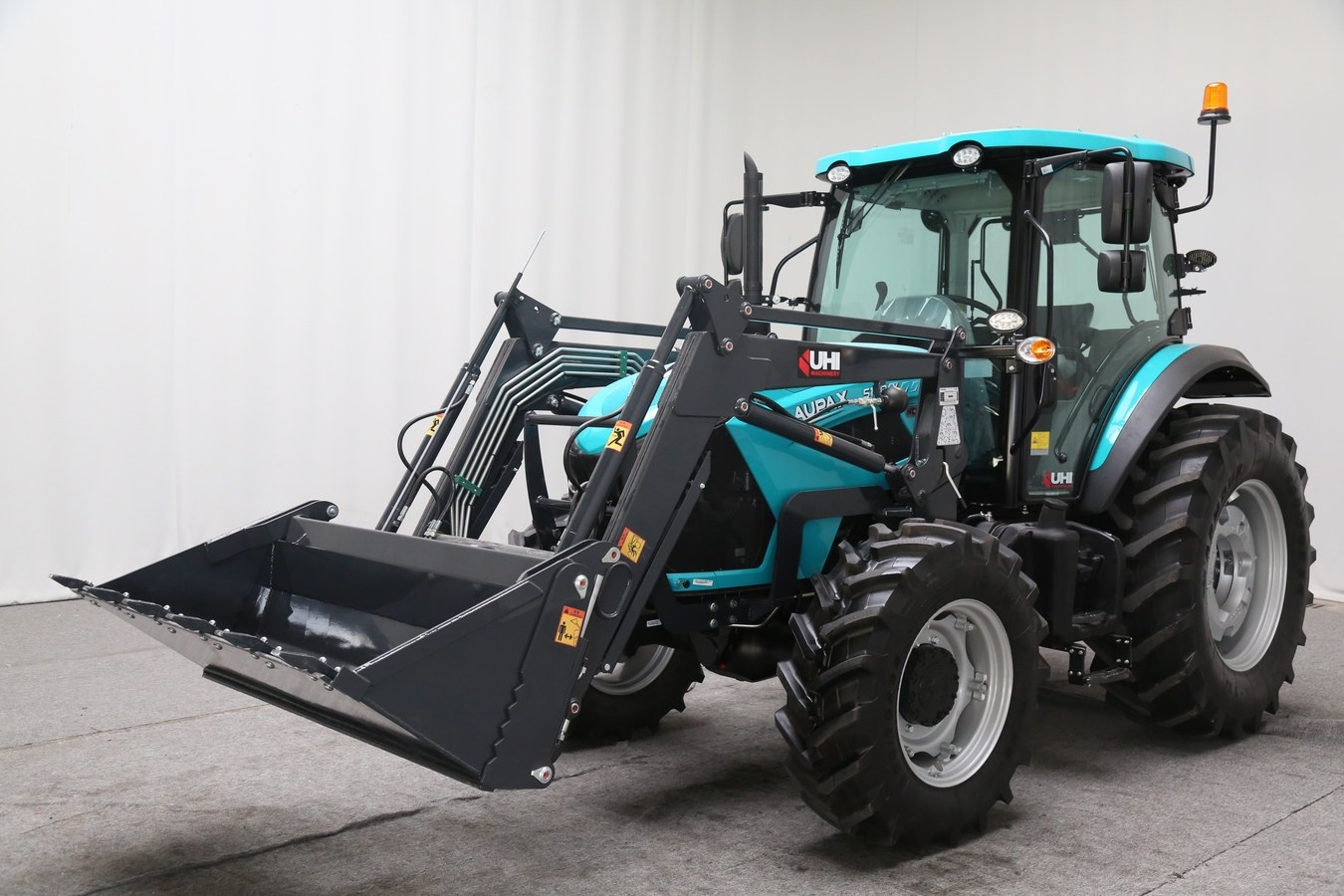

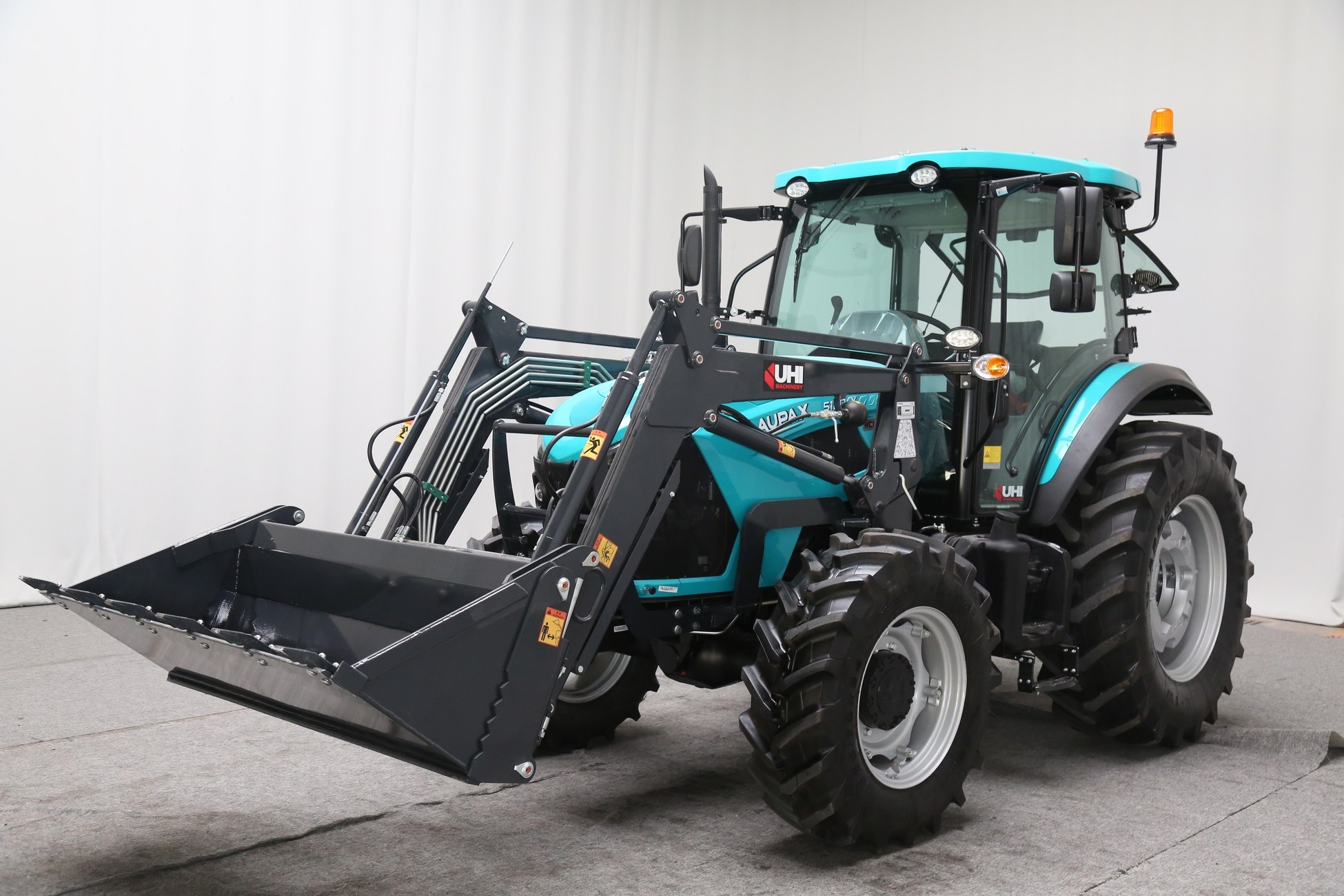

Matched TZ08D loader package
The supplied specification identifies a TZ08D front-end loader for the photographed configuration. It combines a 1200 kg rated load, 1,560 kg loader lift capacity and a specified four-in-one bucket with listed 250 kg bucket mass.
Technical Overview
Engine & Drivetrain
Hydraulics & Loader
Specifications and descriptions are based on the supplied AUPAX 5120-X Features PDF. Some statements reference supplied drive photos and video digest material. Rear 3PL lift at 610 mm appears as both ≥25 kN on the detailed sheet and 28 kN on the feature overview; confirm the final published value before external use.
