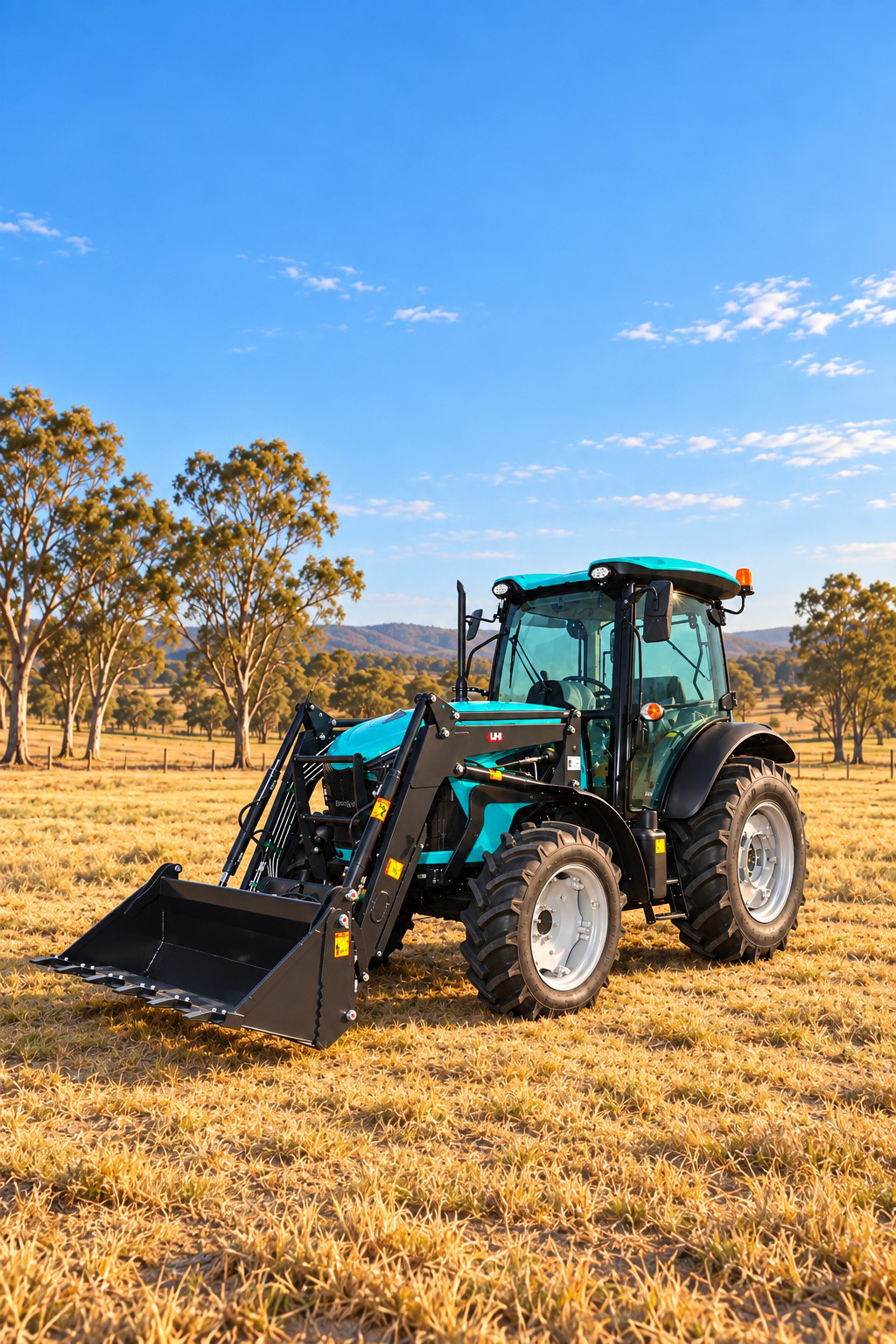

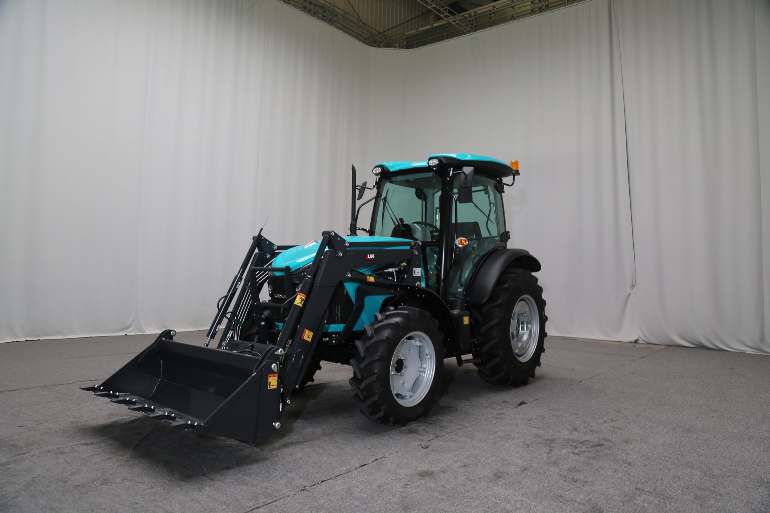

75 HP Elite Cab Tractor
A versatile 4WD tractor with a XinChai diesel engine, synchronised transmission, climate-controlled cab and fitted front-end loader.
Power & Field Performance
75 HP XinChai diesel engine
The 4.32 L four-cylinder XinChai A4K43T75 diesel is rated at 75 HP at 2,400 rpm and produces up to 280 N·m of torque. Selectable mechanical four-wheel drive and rear differential lock support traction on varied ground.
- 12 forward and 12 reverse gears
- Double-acting clutch
- 540 / 1000 rpm rear PTO
- 120 L fuel tank
- Maximum forward travel speed: 34.13 km/h
Cooling, Filtration & Fuel System
Engine & Torque
XinChai 75 HP diesel power with 280 N·m maximum torque for demanding field and front-loader tasks.

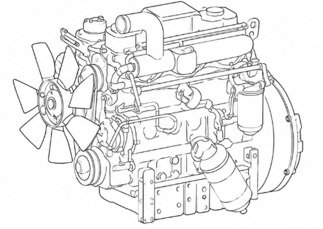

Cooling System
Larger cooling surfaces and a separate chassis-oil cooler help manage heat under sustained workloads.
Donaldson Dry Air Filter
Dry-type air filtration helps keep dust and particles away from critical engine components.
Large 120 L Fuel Tank
High fuel capacity helps reduce refuelling stops; a protective under-tank structure shields the tank.

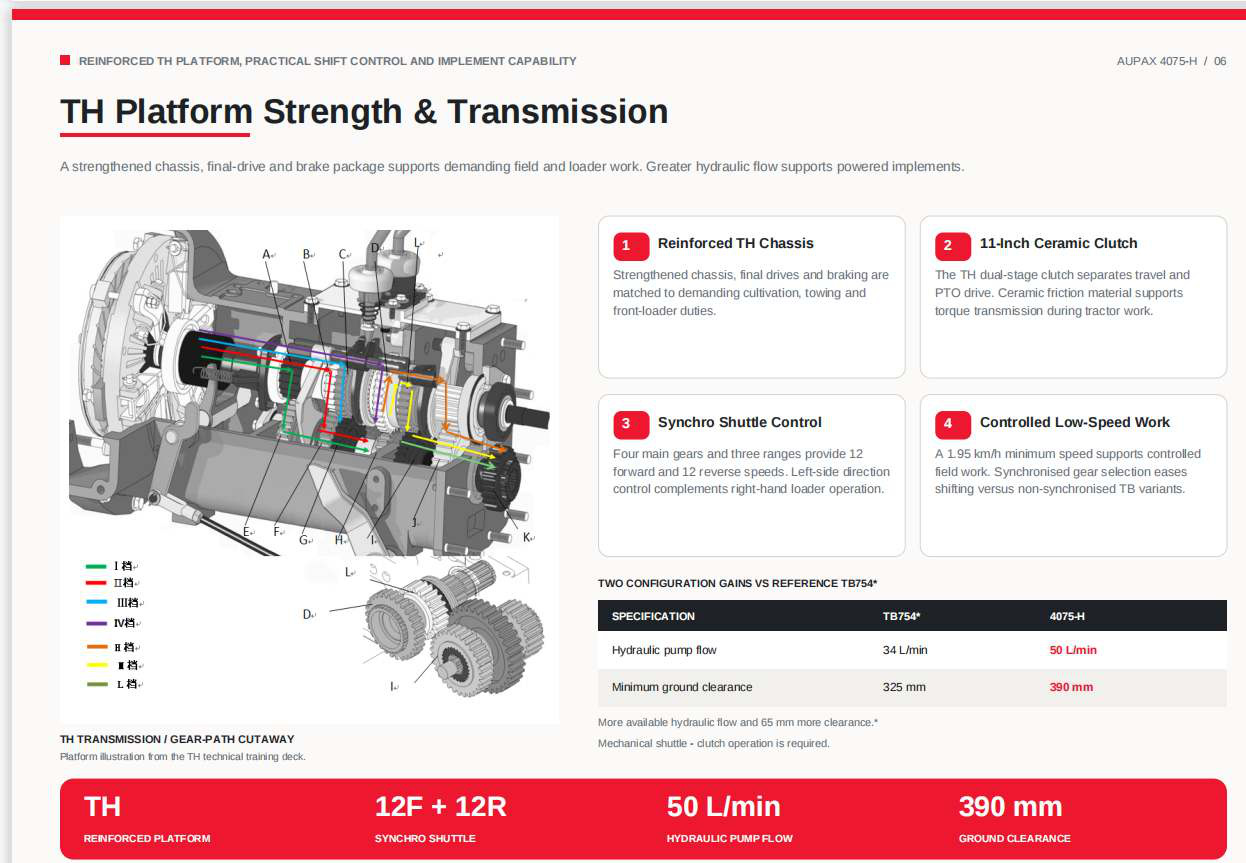

Synchronised Transmission & PTO

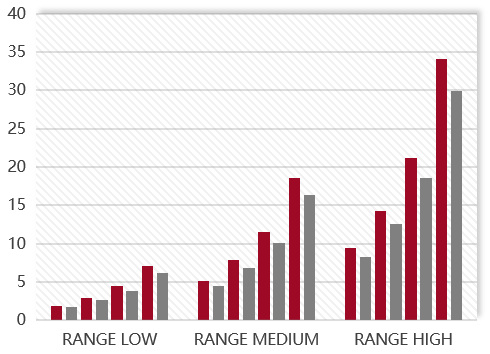

Four main gears, three speed ranges and a forward / reverse shuttle provide 12 speeds in each direction, covering slow implement work through to on-property travel.
Field-ready gearing
The synchronised 12F + 12R transmission combines low, medium and high ranges with four main gears. Side-mounted levers make selecting gears straightforward.
Clutch, Axles & TH Platform
Double-Acting Clutch
Clutch design supports both tractor propulsion and PTO-driven implement work.
Two-Speed PTO
Mechanical PTO speed selection provides 540 and 1000 rpm on the 4075-H.

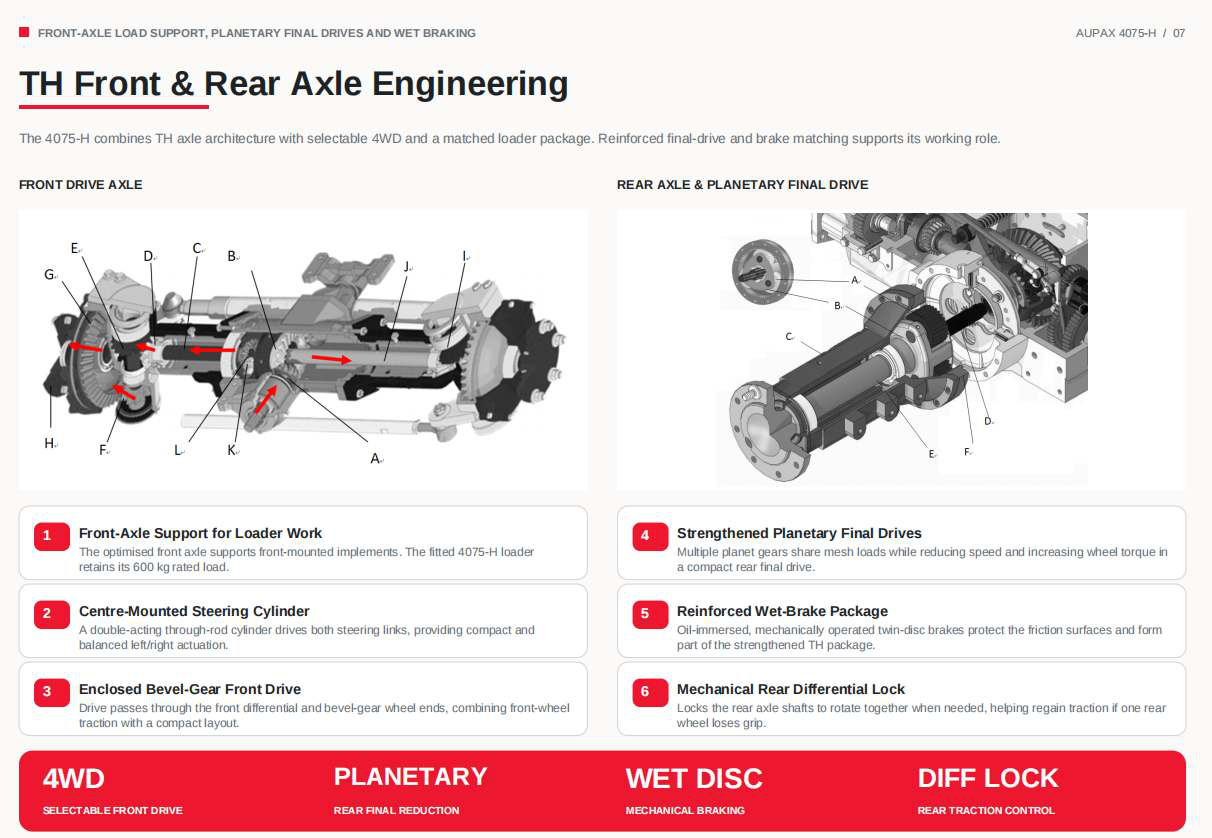

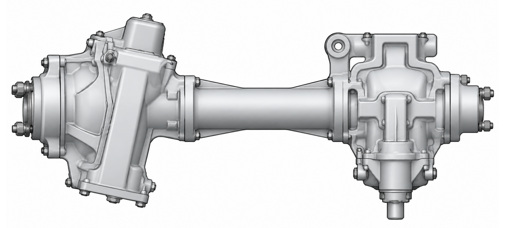

Front Axle Design
TH platform axle construction combines enclosed reduction gearing with a front-drive configuration for loader and field duties.
Hydraulics & Rear Implement Control

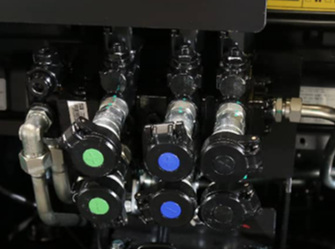

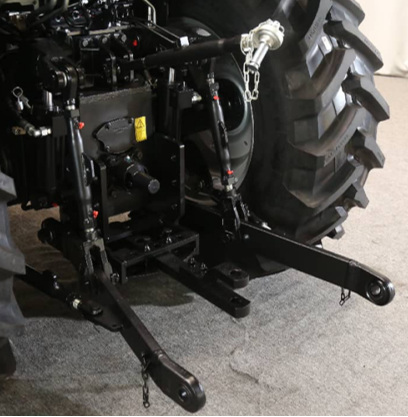

Three pairs of rear remotes
With a 50 L/min hydraulic flow rate, three pairs of rear hydraulic couplers and a Rexroth multi-way valve with adjustable flow, the 4075-H can support a broad range of rear-mounted implements.

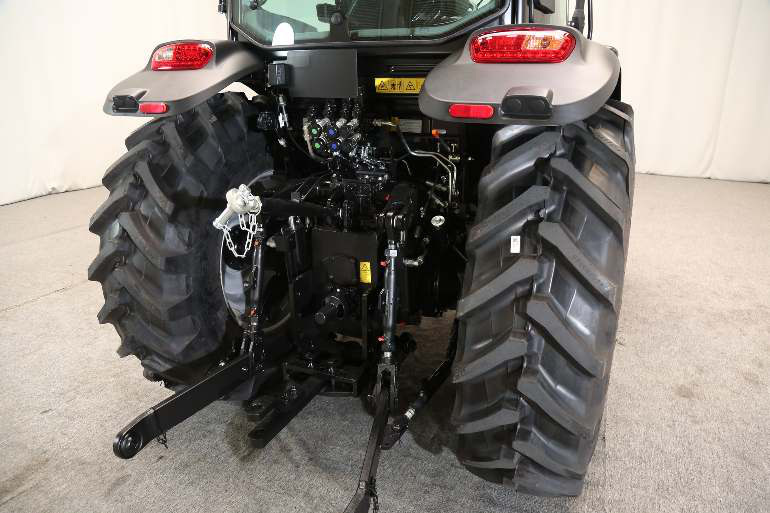

Twin external rear lift cylinders assist with controlled implement movement. The specified three-point linkage lift is 24 kN measured 610 mm behind the hitch.
Cab Comfort & Control
The enclosed air-conditioned cab provides climate control, clear visibility and practical access to commonly used tractor controls.
Armrest Seat
Fabric armrest-equipped seating provides a comfortable operator position; the Grammer brand is referenced in TH-family material and should be confirmed for the delivered unit.

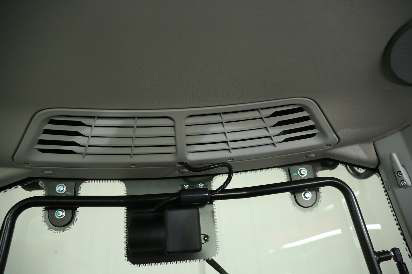

Roof HVAC
Integrated roof air-conditioning and ventilation outlets support cabin temperature control.

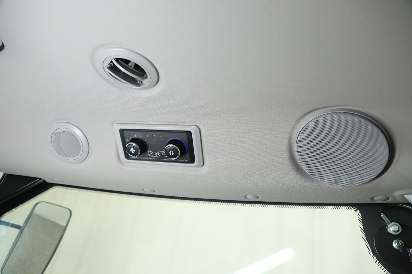

Overhead Console
Overhead radio and control equipment within easy reach. Bluetooth and USB equipment should be confirmed on the specific tractor.

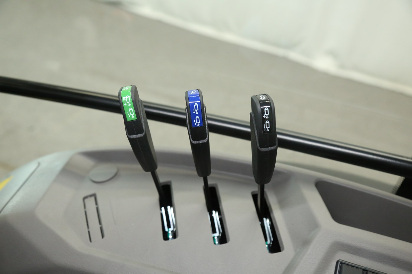

Side-Mounted Controls
Grouped hydraulic and gear controls make routine machine operations easier to reach.

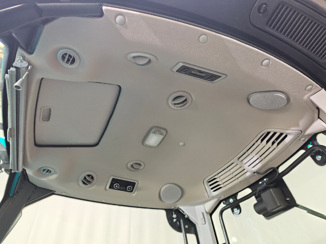

Heating & Skylight
Roof-mounted climate-control equipment and an integrated skylight improve the cab environment.
Panoramic Visibility
Sealed cab, broad glass coverage and a front wiper support day-to-day visibility.
Suspension Seat
Armrests and suspension-style seating help reduce operator fatigue over extended working periods.
Bonnet & Service Access
Opening bonnet panels give practical access for checks around the engine and cooling systems.

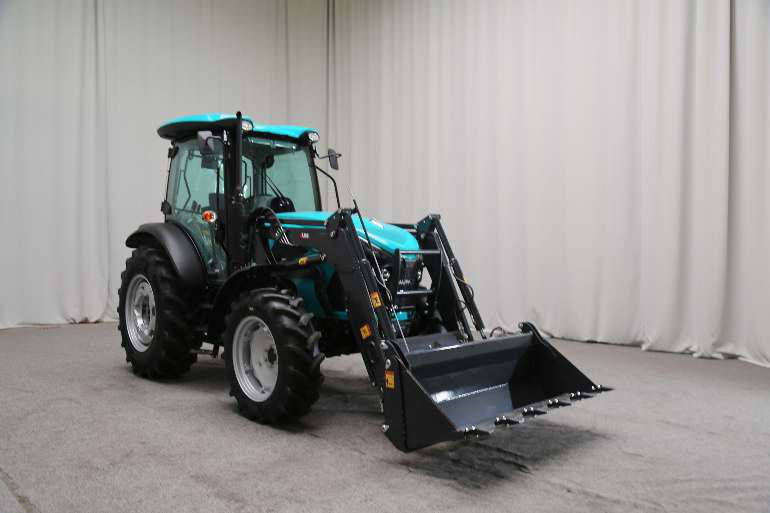

Front-End Loader Engineering
Strong everyday loader performance
The tractor is supplied with a front-end loader and hydraulic bucket control for handling, moving and light grading applications.
Technical Specification
Engine & Drivetrain
Chassis & Hydraulics
Specifications are drawn from the supplied AUPAX 4075-H Features PDF. Illustrated TH-platform engineering and some cab equipment are family-reference materials; equipment and final configuration should be confirmed against the delivered machine. The 3,250 kg figure in the source is a structural mass reference, not presented here as operating weight.
