Name: UWL825HT 2.3T Telescopic Boom Loader with 101HP Cummins Engine | UHI Machinery | UHI Machinery
SKU: m250-1
Price: 48990.00 AUD
Availability: InStock

Description

Telescopic Wheel Loader

REACH HIGHER.
WORK SMARTER.

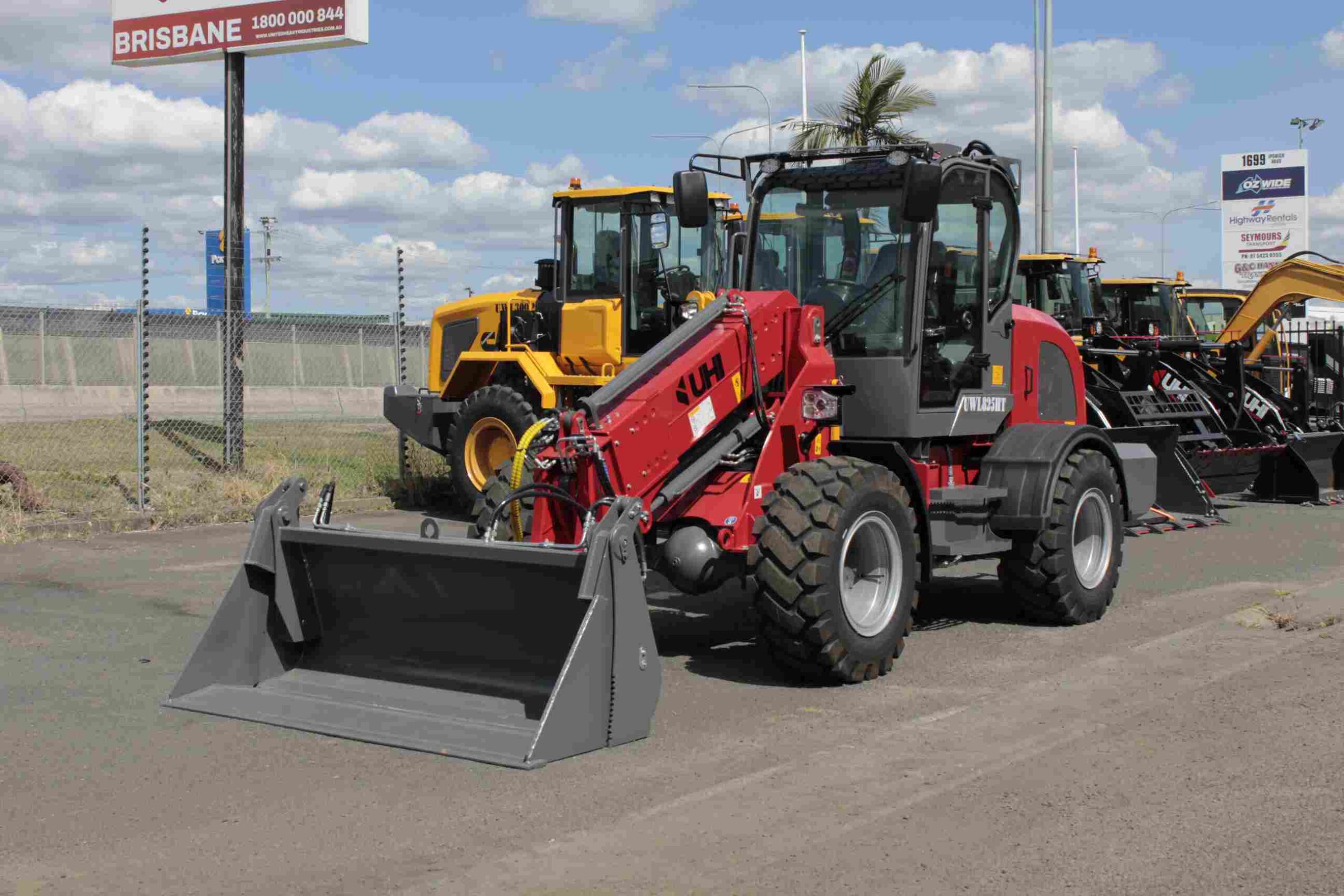

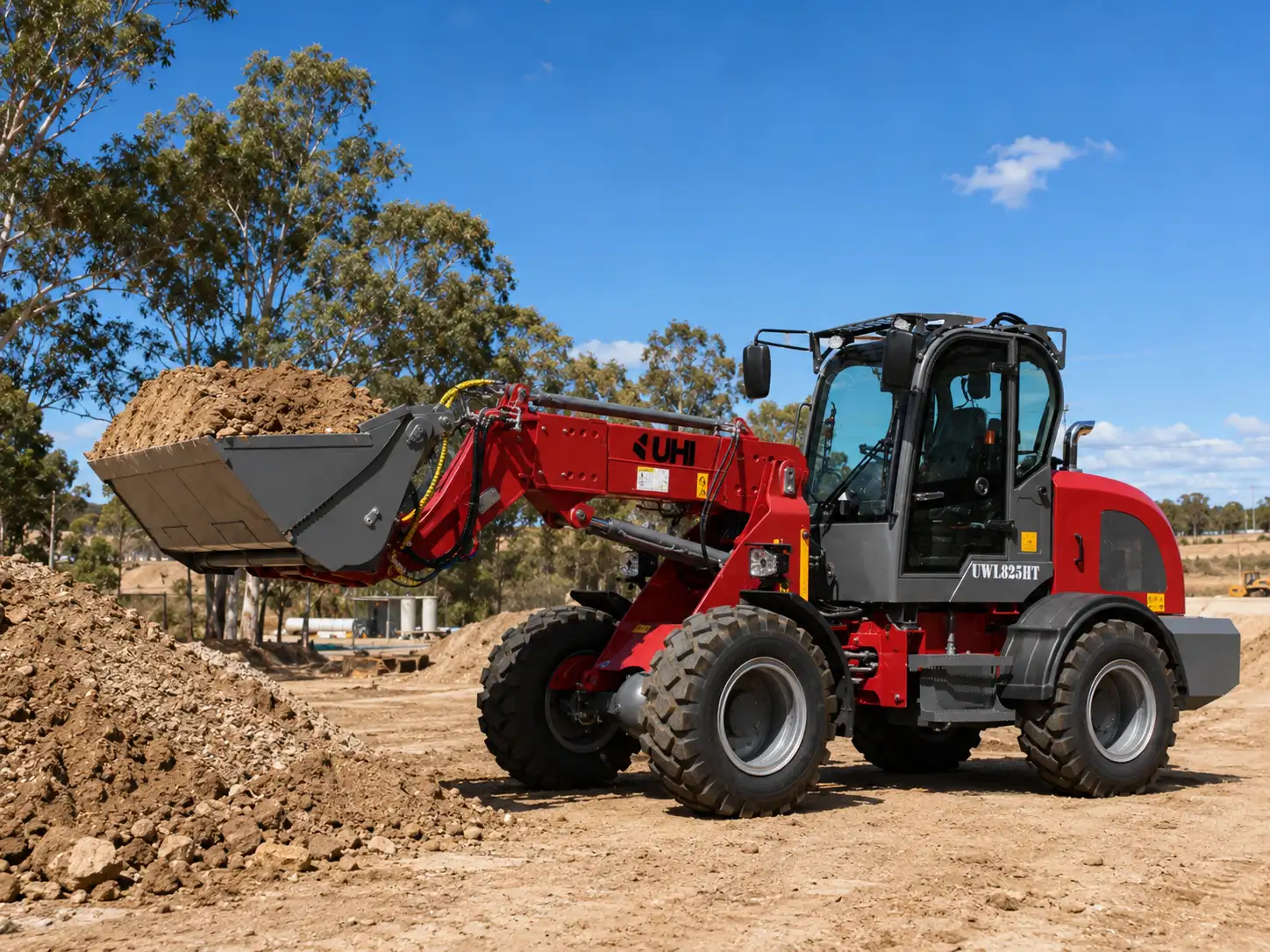

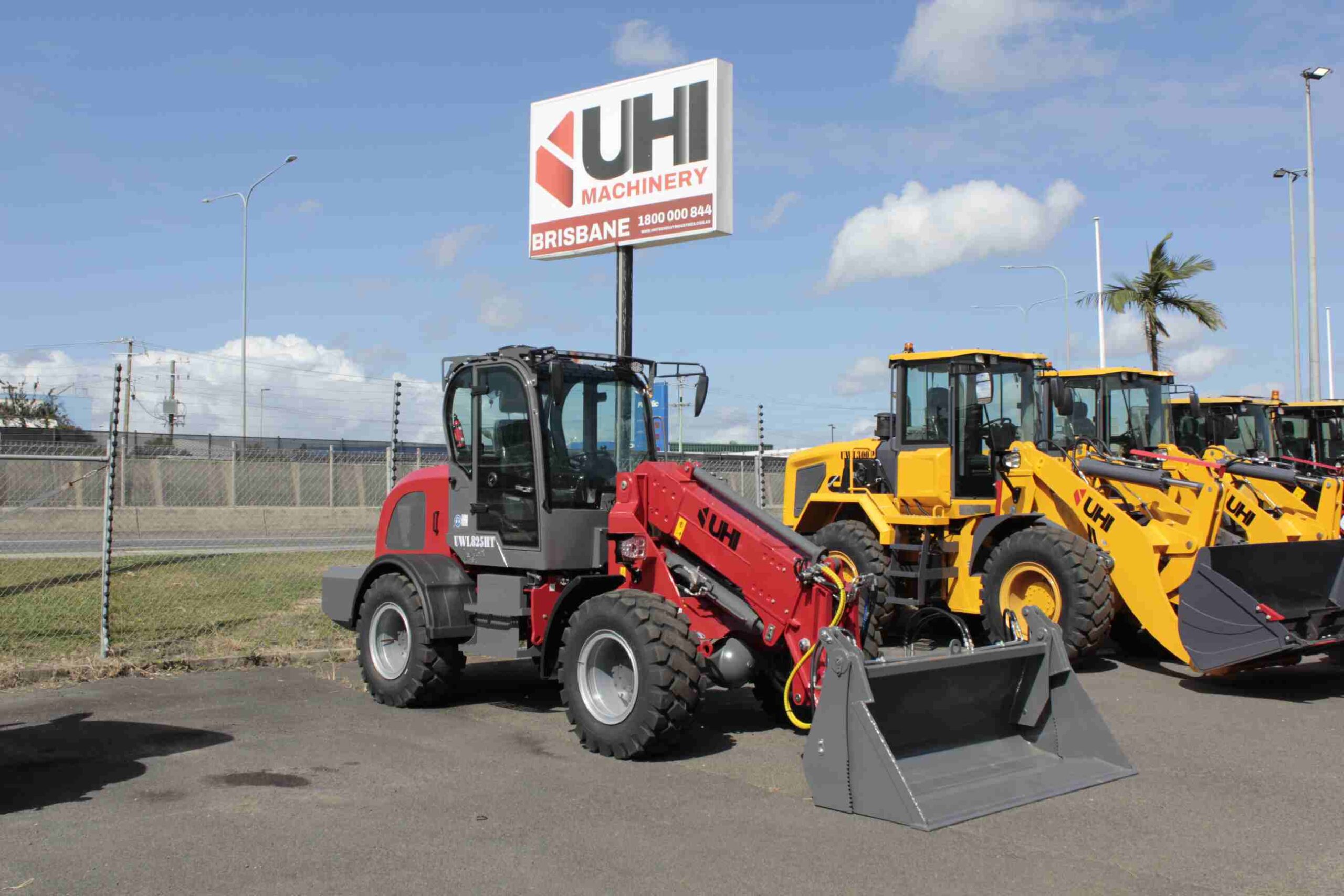

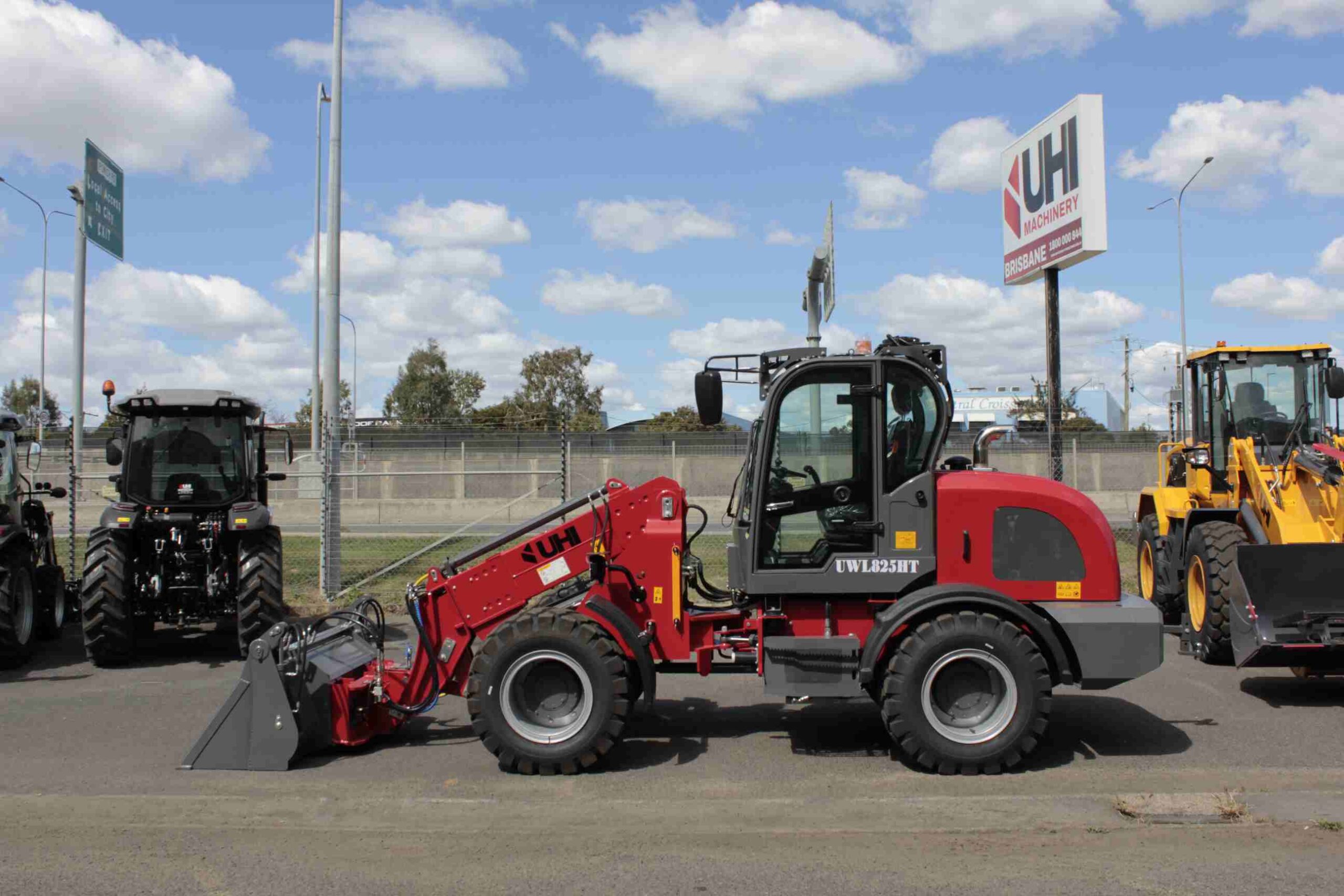

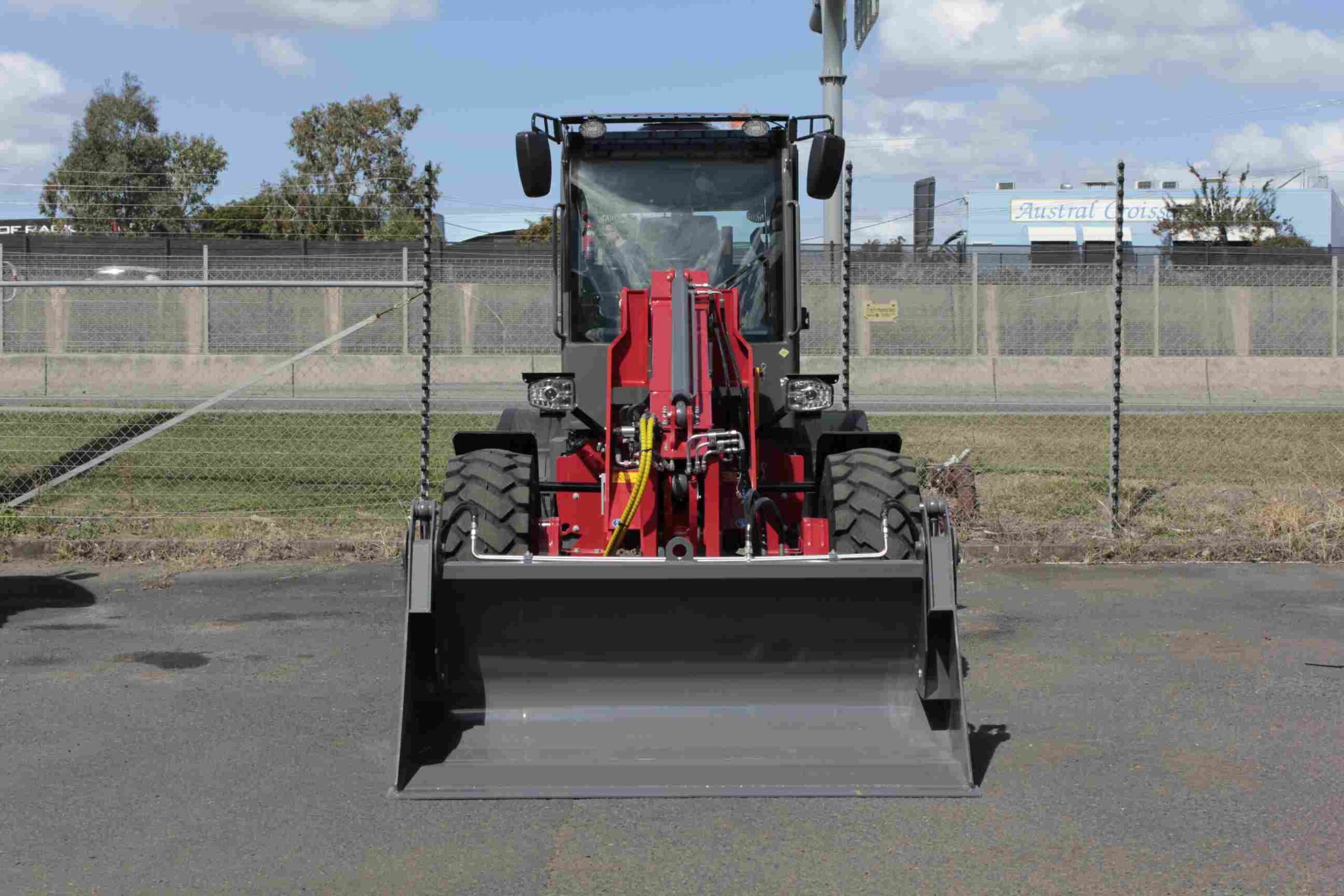

The UWL825HT is a compact telescopic wheel loader combining impressive lifting reach, Cummins power and heavy-duty hub-reduction axles for demanding material handling applications.

2,300 kg Rated Load

1.0 m³ Bucket Capacity

5,600 kg Operating Weight

75 kW Cummins Power

4,007 mm Dump Clearance

UWL825HT

TELESCOPIC REACH.
WHEEL LOADER VERSATILITY.

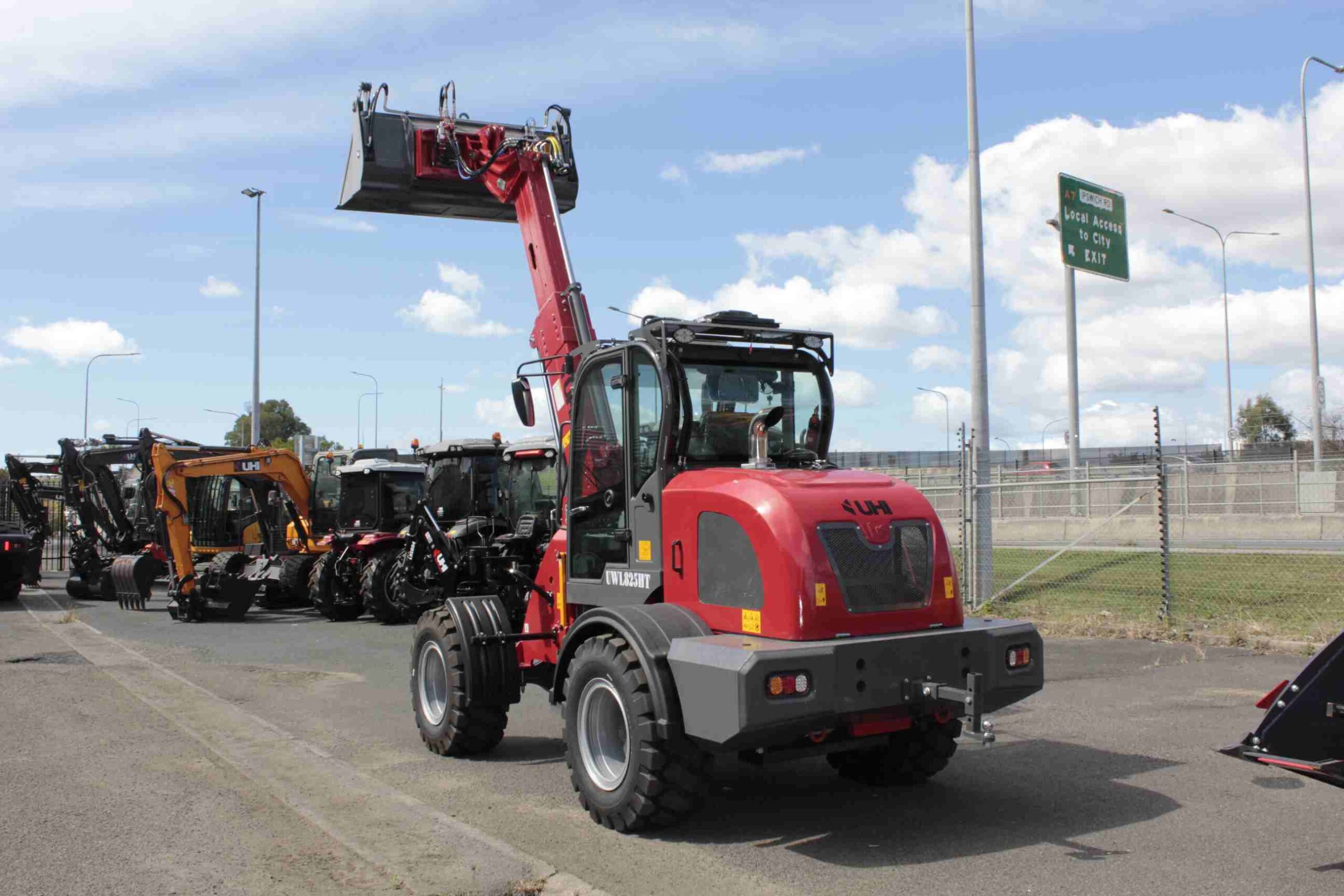

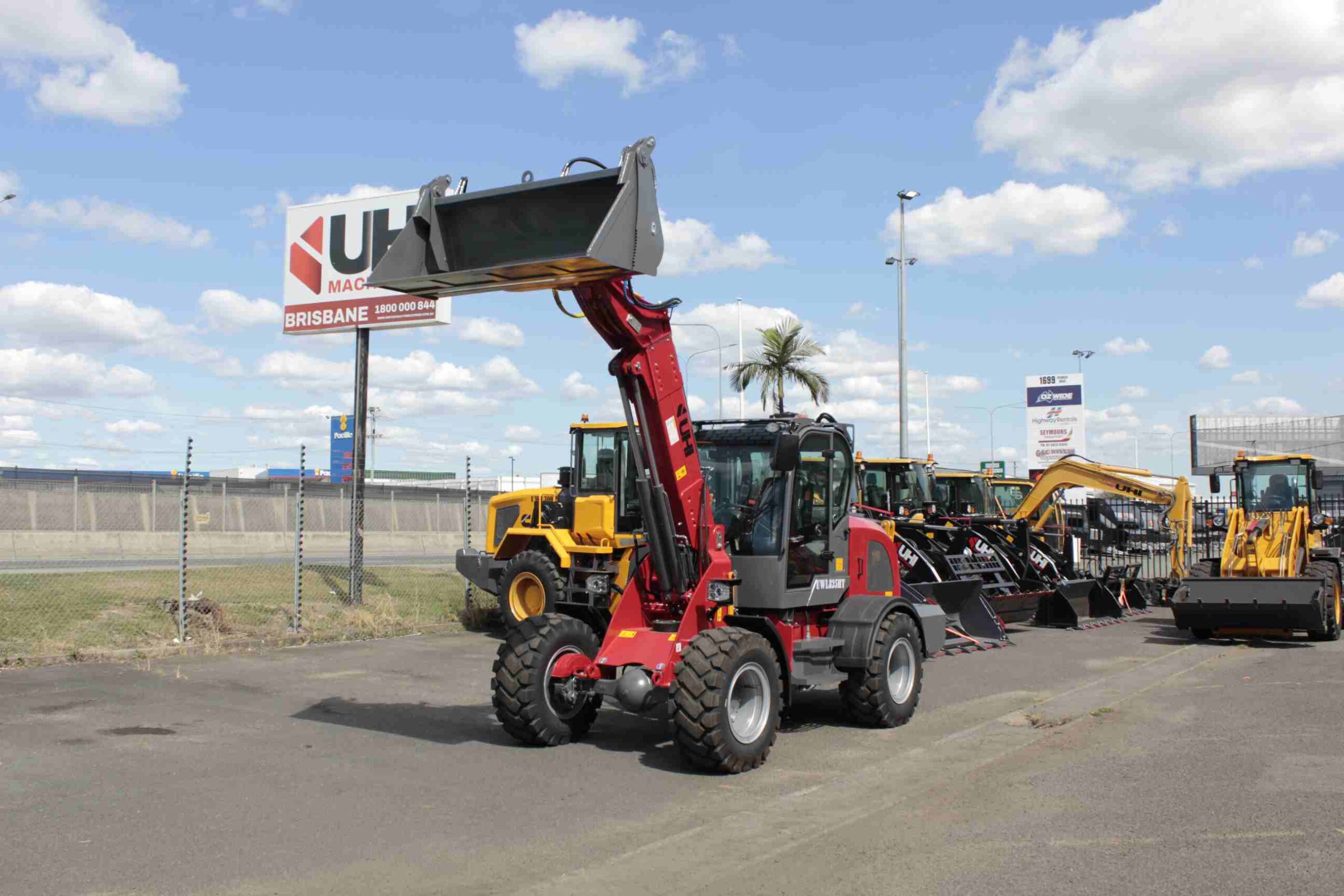

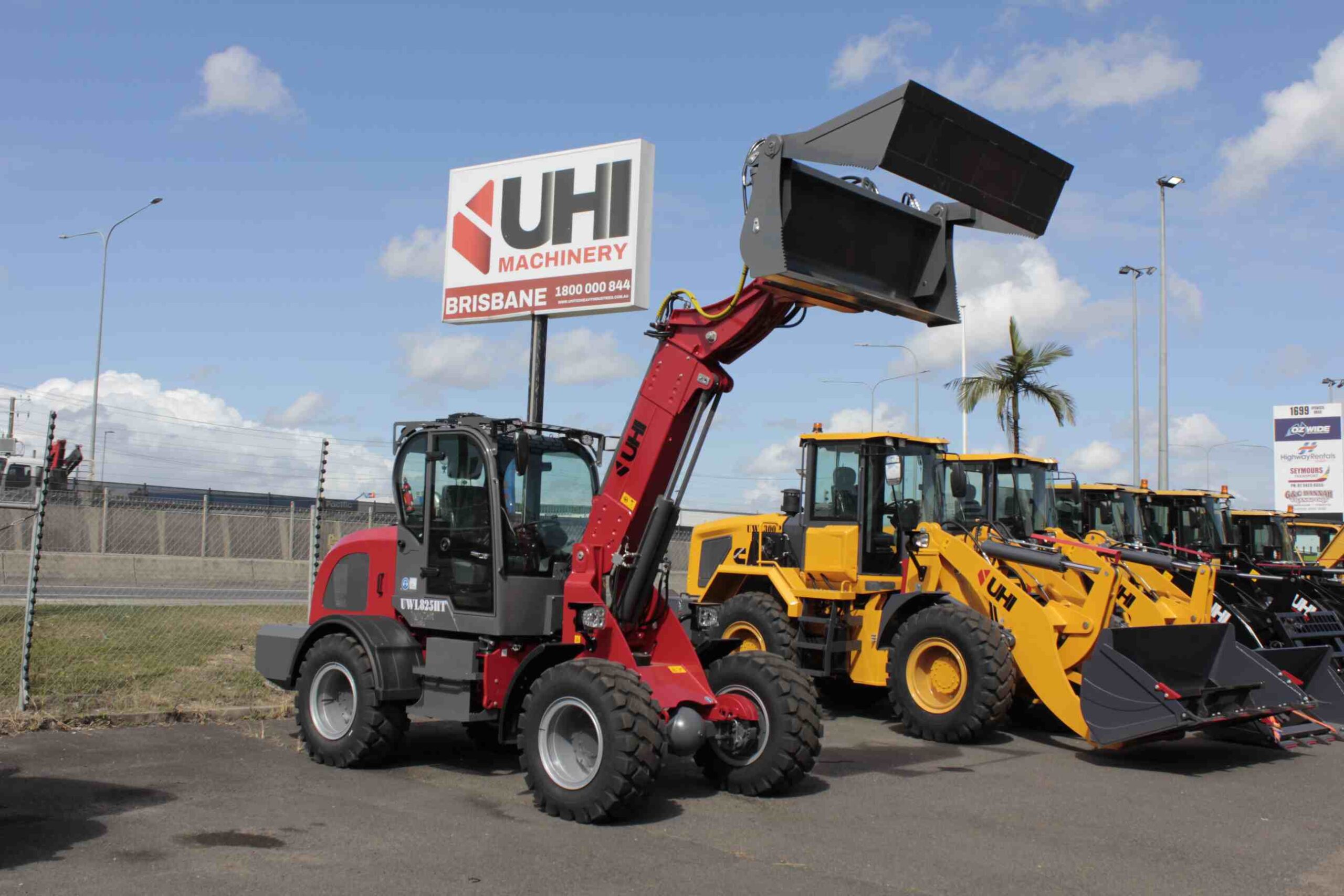

Designed to combine conventional wheel-loader manoeuvrability with extended telescopic lifting capability. The UWL825HT provides up to 4,813 mm hinge-pin height and 4,007 mm dump clearance while retaining a compact 5.6-tonne operating platform.

4,813 mm Maximum hinge-pin height for increased loading and stacking reach.

4,007 mm Dump clearance at full height for loading higher-sided vehicles.

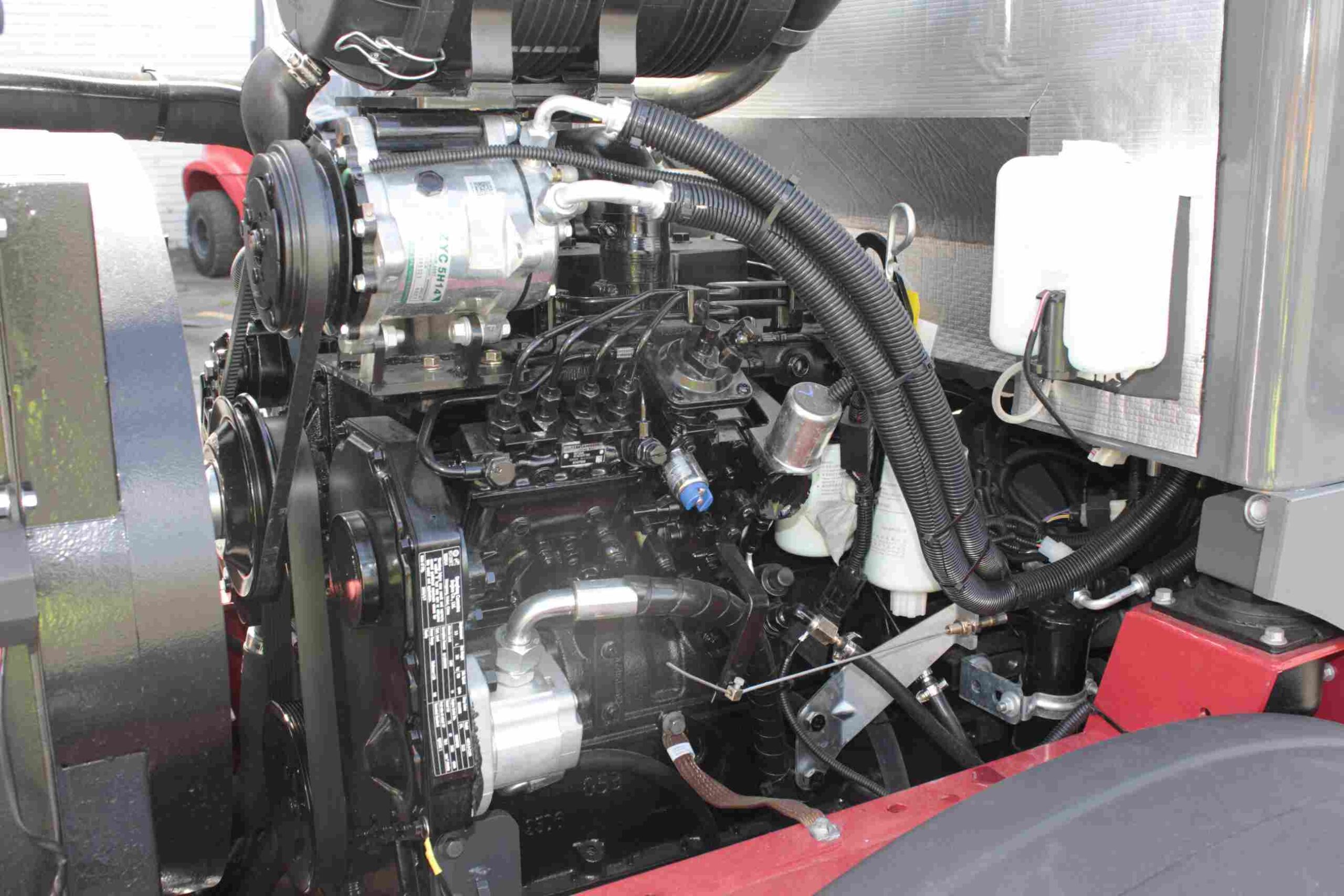

Cummins 4BT3.9-C100 four-cylinder diesel engine producing 75 kW.

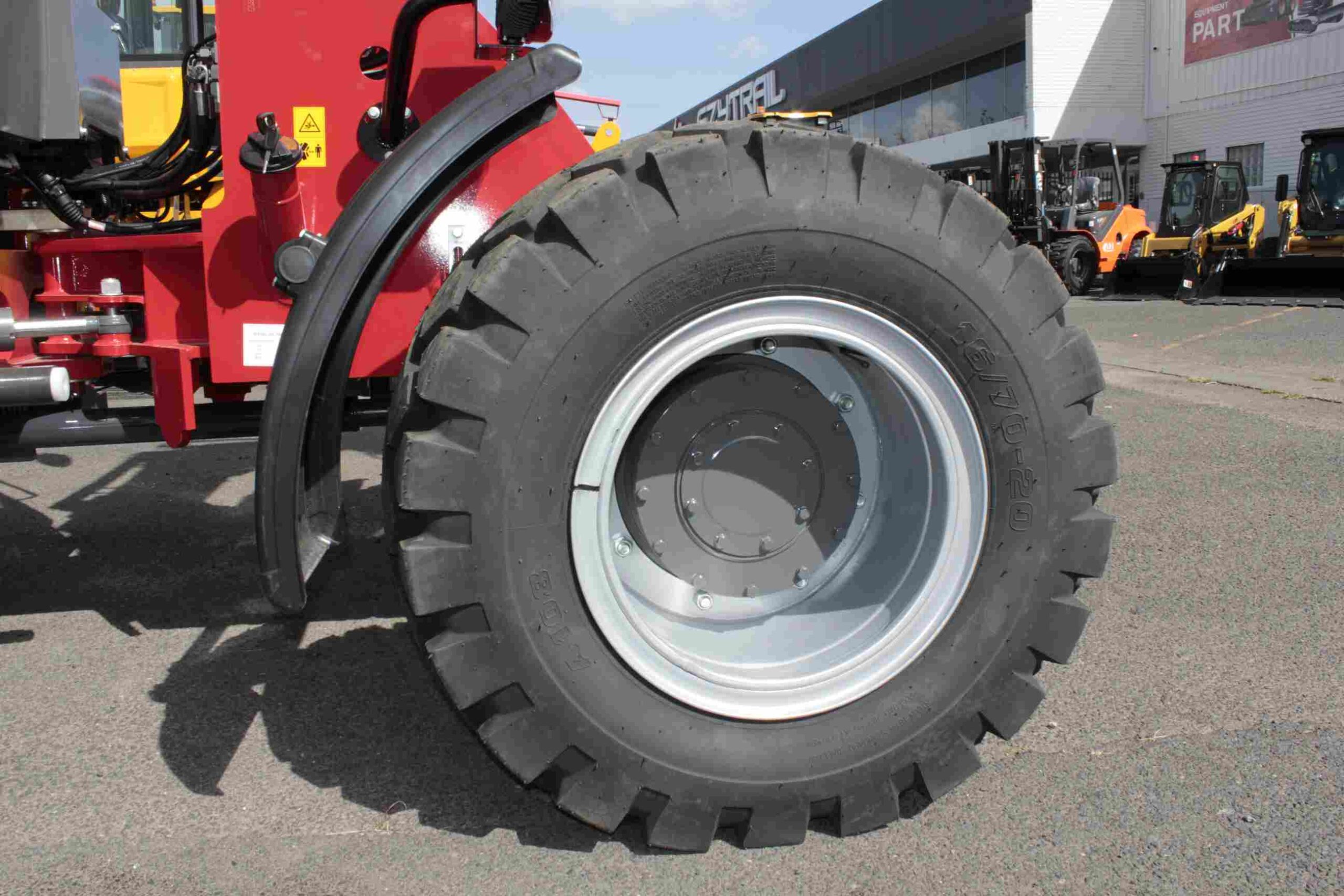

Heavy Duty Heavy-duty air-brake axles with wheel-hub final reduction.

Working Geometry

Dimensions & Reach

Maximum Hinge Pin Height

4,813 mm

Dump Clearance at Full Height

4,007 mm

Dump Reach at Full Height

849 mm

Ground Clearance

368 mm

Wheelbase

2,551 mm

Cab Height

2,617 mm

Width Over Tyres

2,082 mm

Length with Bucket Down

5,921 mm

Width Over Bucket

2,050 mm

Rear Angle of Departure

28°

Bucket Rollback at Carry

33°

Rollback at Maximum Height

50°

Dump Angle at Full Height

39°

Articulation Angle, Either Side

43°

Turning Radius – Bucket Carry

4,524 mm

Turning Radius – Outside Tyre

4,044 mm

All dimensions are shown in millimetres unless otherwise stated.

Powertrain & Systems

Technical Specifications

General

Rated Load 2,300 kg

Bucket Capacity 1.0 m³

Operating Weight 5,600 kg

Tyres 16/70-20

Machine Type Telescopic Wheel Loader

Engine

Emission Standard Tier 2 / Stage II

Manufacturer Cummins

Model 4BT3.9-C100

Rated Power 75 kW

Displacement 3.9 L

Number of Cylinders 4

Transmission

Transmission Model HZM265

Transmission Type Planetary Power-Shift

Torque Converter 2-Stage, 4-Element

Maximum Speed – FWD 30 km/h

Maximum Speed – REV 16 km/h

Forward Speeds 4

Reverse Speeds 4

Axles

Type Heavy-Duty Air-Brake Axle

Final Reduction Wheel Hub Reduction

Hydraulic System

Main Pump Type Hydraulic Gear Pump

Main Relief Pressure 16 MPa

Boom Raise Time 5.8 s

Bucket Dump Time 1.5 s

Float Lowering Time 3.0 s

Fastest Total Cycle 10.3 s

Steering

Steering Relief Pressure 16.5 MPa

Steering Type Hydraulic Articulated

Specifications are based on supplied product information and may vary by production configuration. Please confirm current specifications with UHI Machinery before purchase.

Cummins 4BT3.9-C100

Reach 4,813 mm Hinge-Pin Height

Axles Heavy-Duty Hub Reduction

Cycle 10.3 s Fastest Total Cycle
