Description

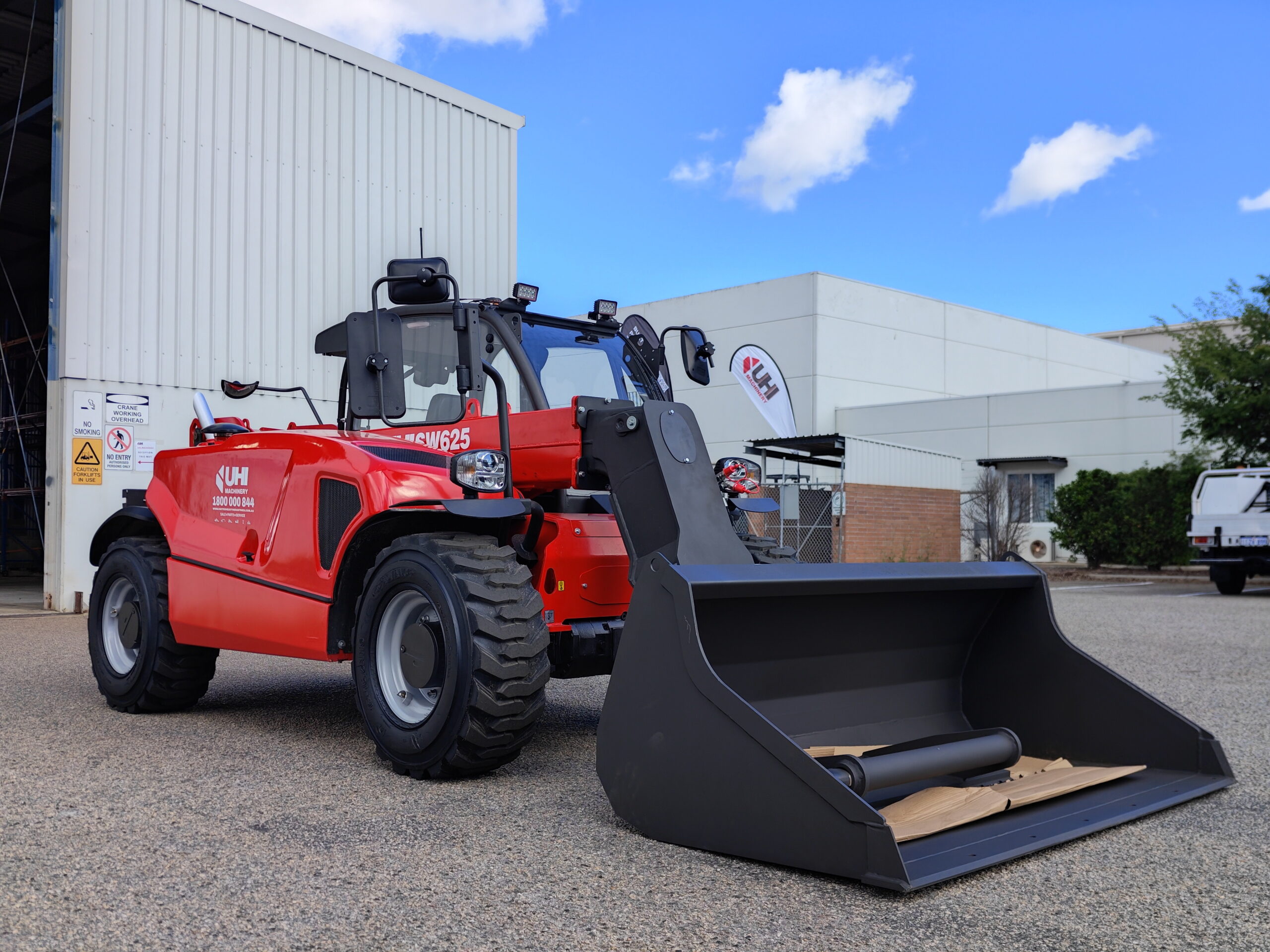

SW625TELEHANDLER
Compact handling performance for Australian construction, agriculture, trade and material-handling sites.
Power & Hydraulic Architecture
Recognised components for dependable performance

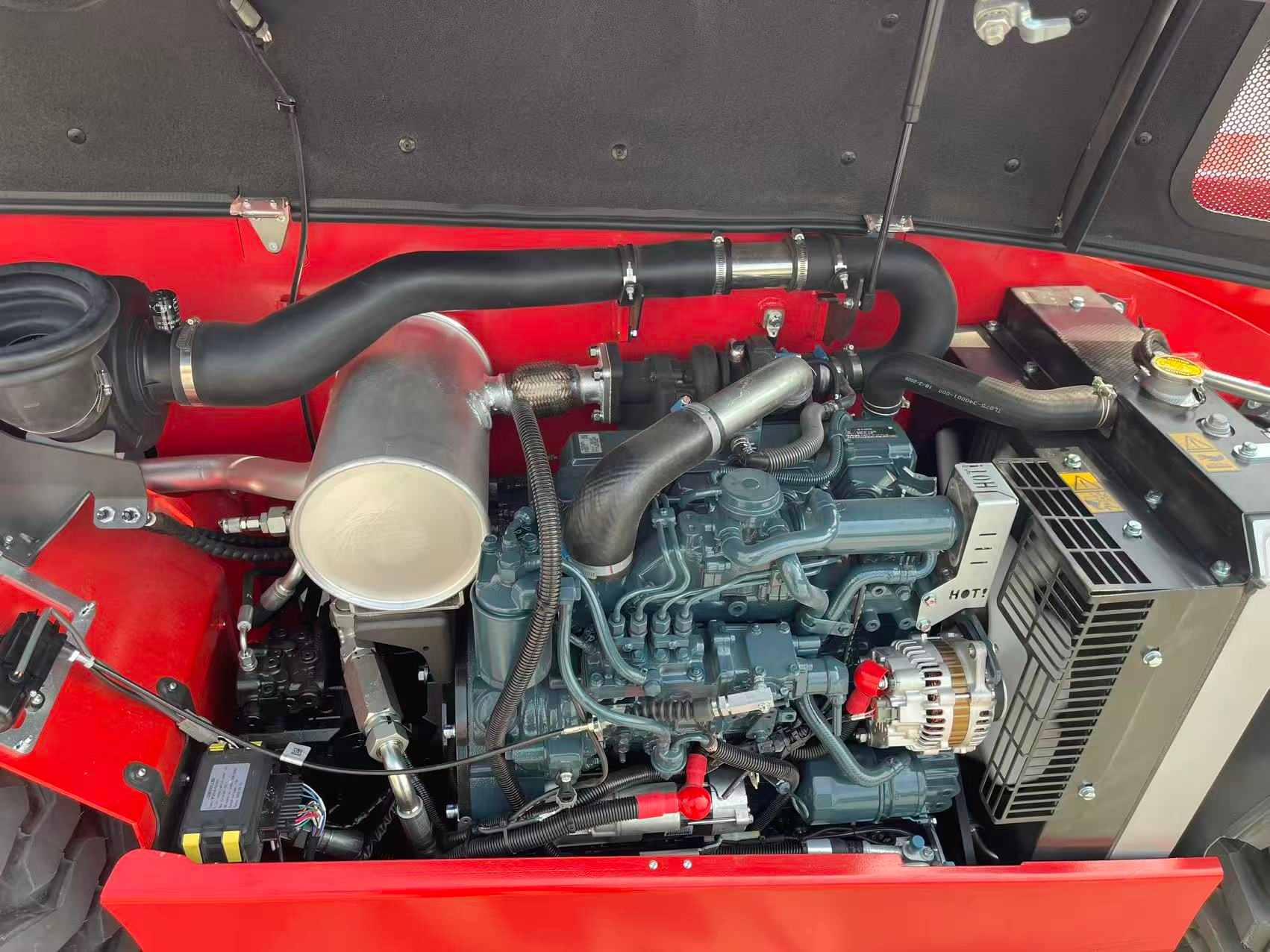

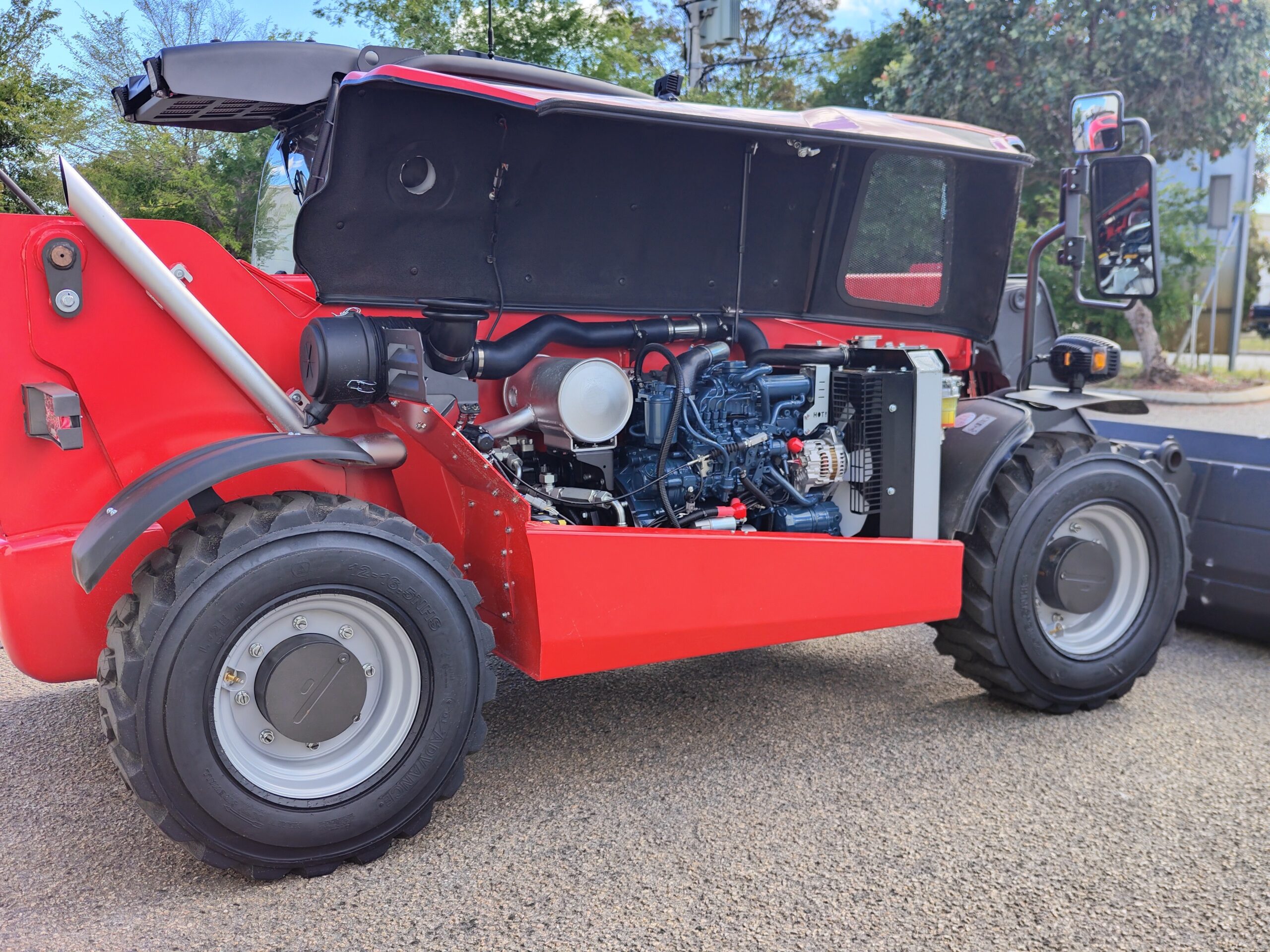

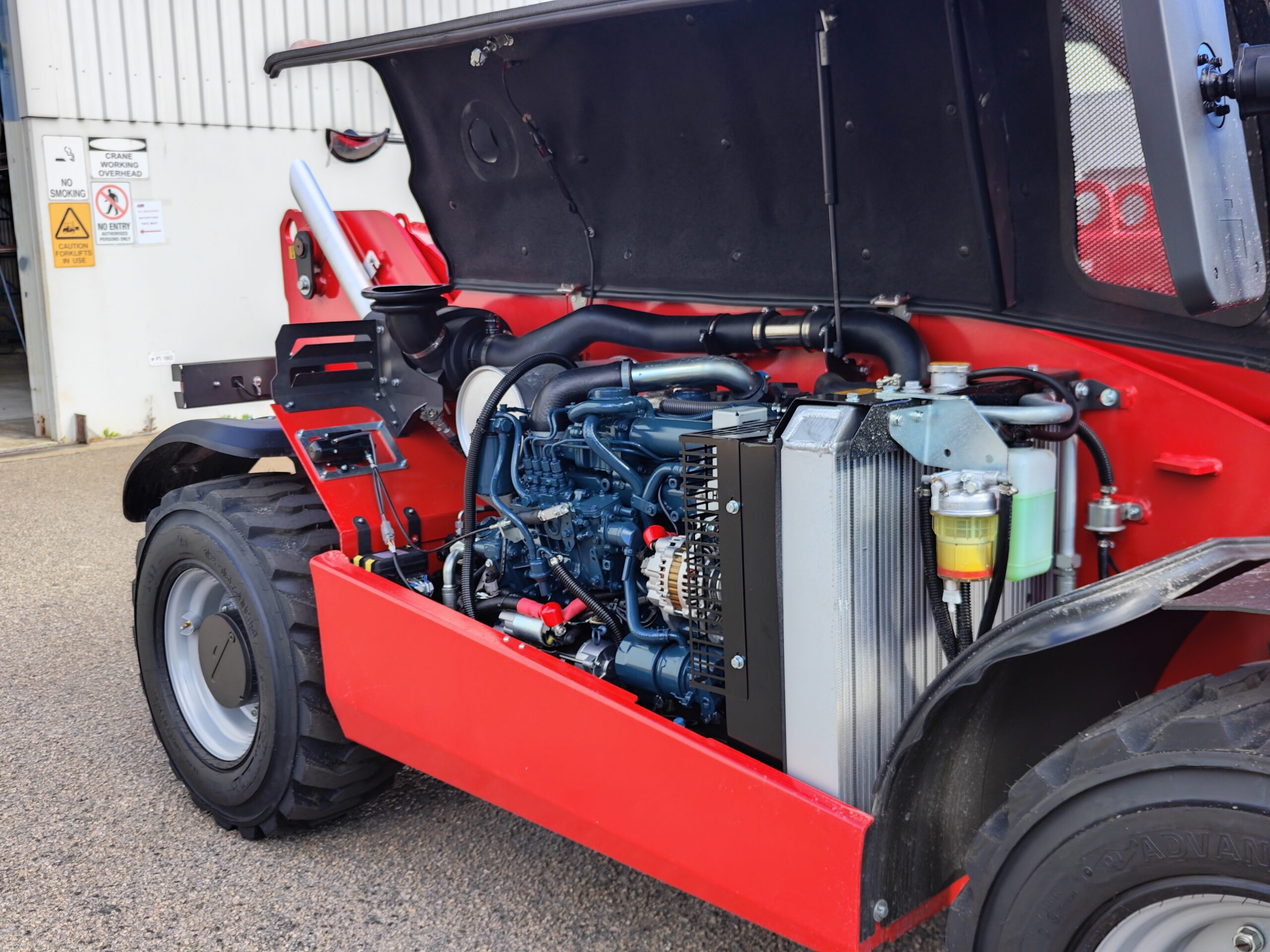

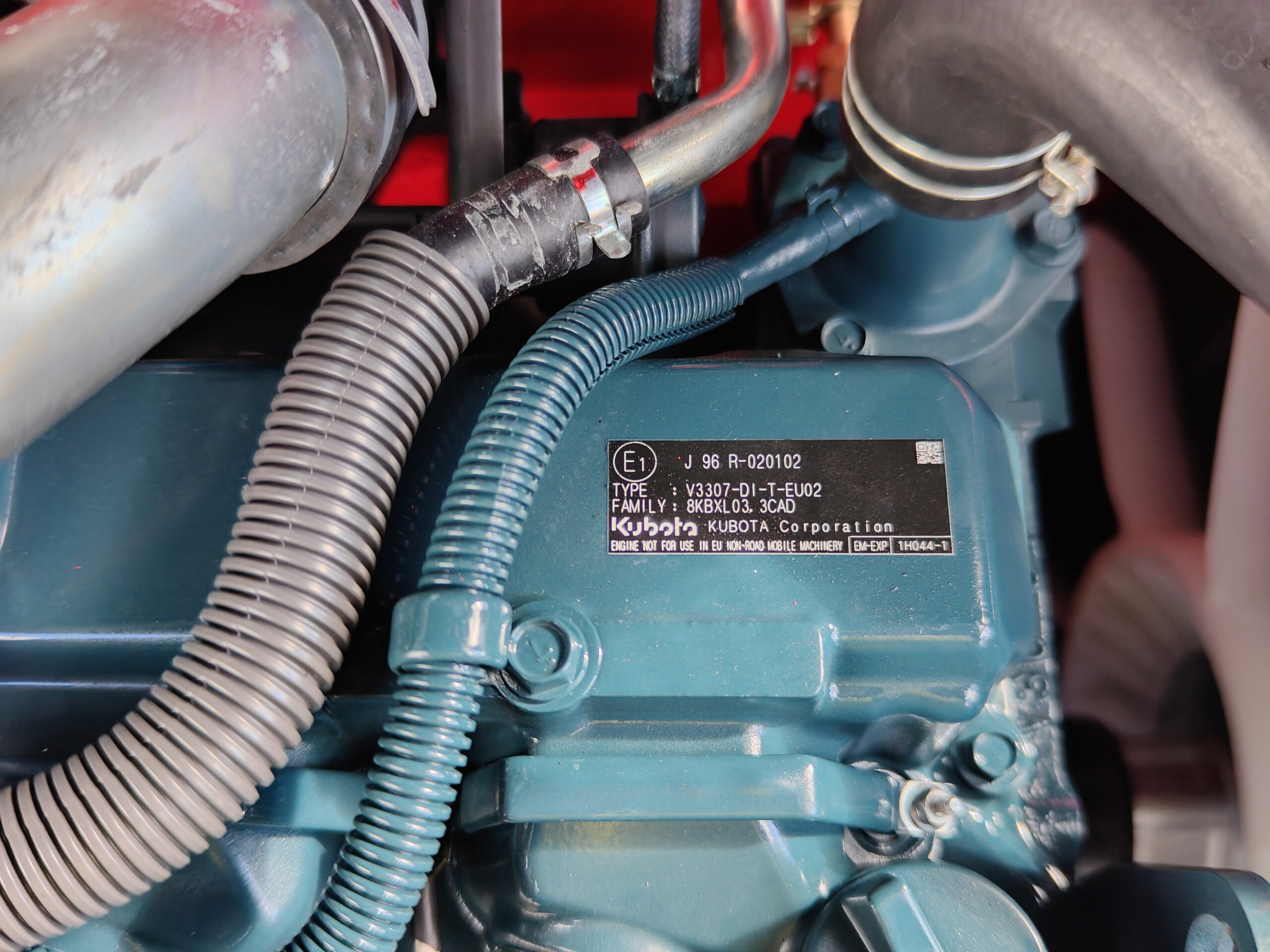

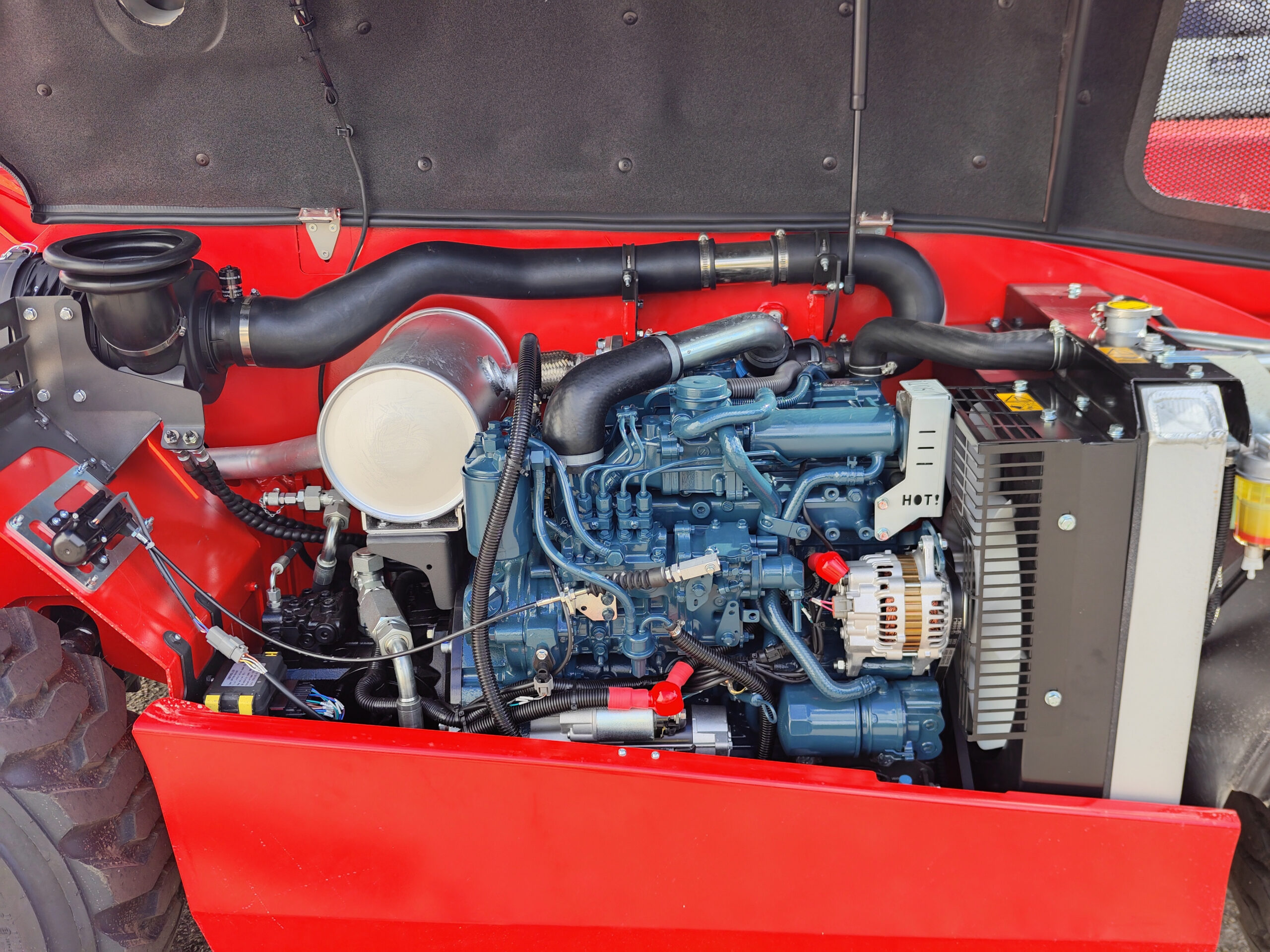

Kubota V3307 Diesel
4-cylinder, 3.331 L, water-cooled engine. The V3307-DI-T-E3B turbo-diesel platform delivers 55.4 kW for productive site operation.
Bondioli & Pavesi Pump Package
Variable-piston travel pump paired with a gear-type working hydraulic pump.
Husco Multi-Spool Valve
Recognised control-valve technology supports smooth, coordinated boom and attachment functions.
Bondioli & Pavesi Drive Motors
Hydrostatic drive components engineered to deliver controlled traction and efficient travel.
Rexroth Load-Holding Valve
Hydraulic lock and balancing-valve technology supports controlled boom movement and load retention.
Up to 90 L/min working flow at 23.5 MPa. Hydrostatic drive pressure up to 40 MPa.
Reach, Manoeuvrability & Site Productivity
Compact dimensions with practical lifting capability

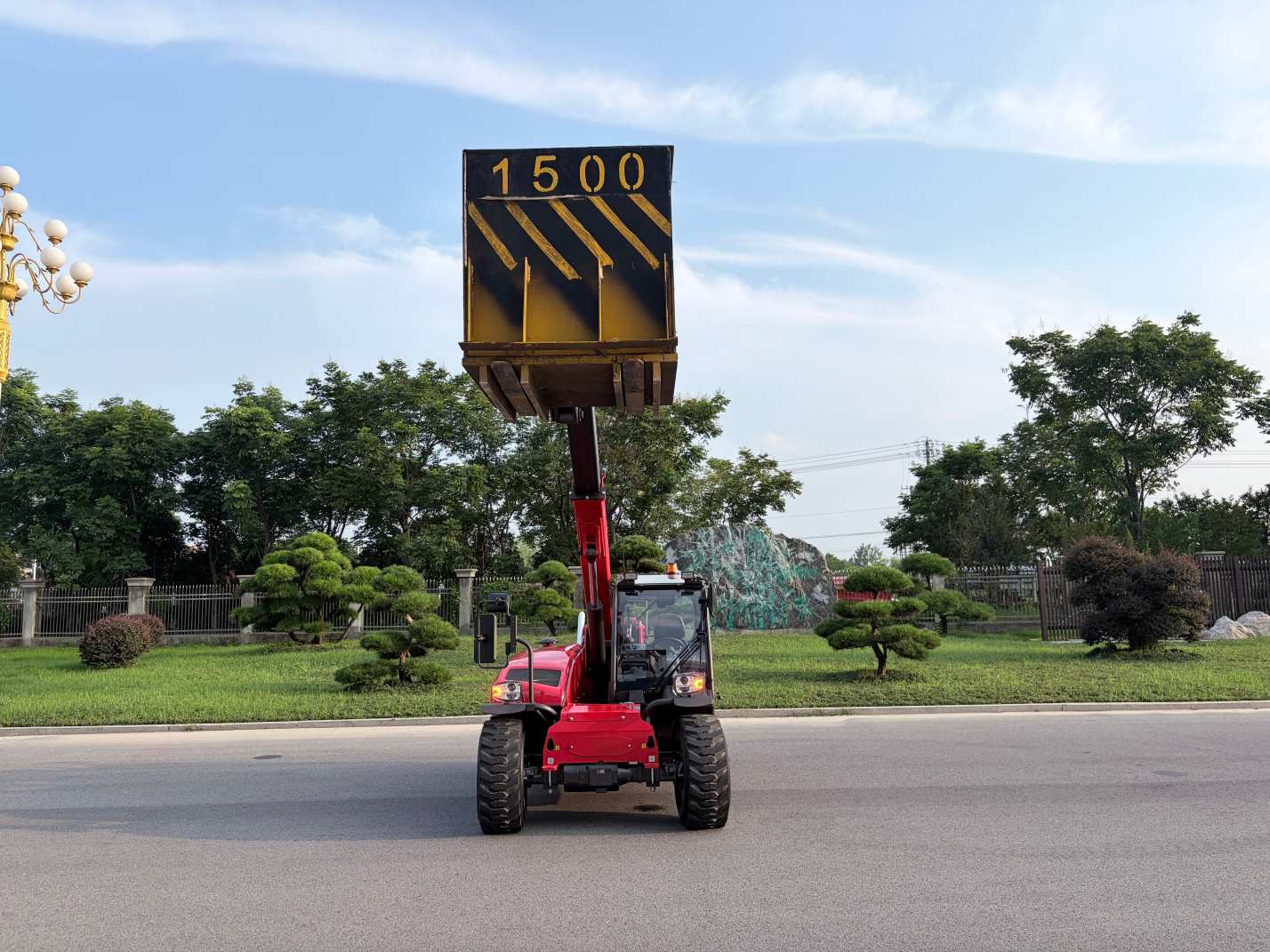

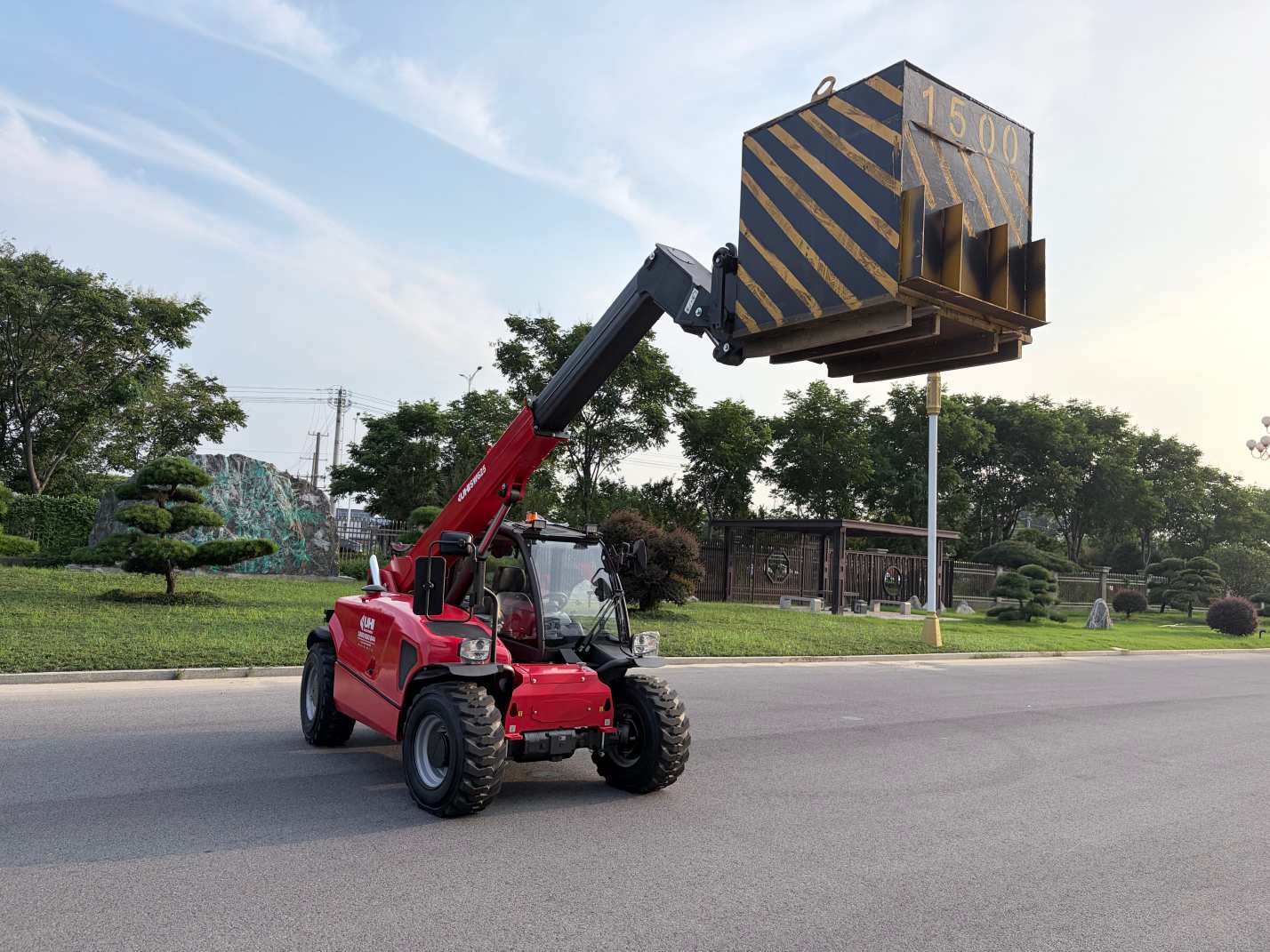

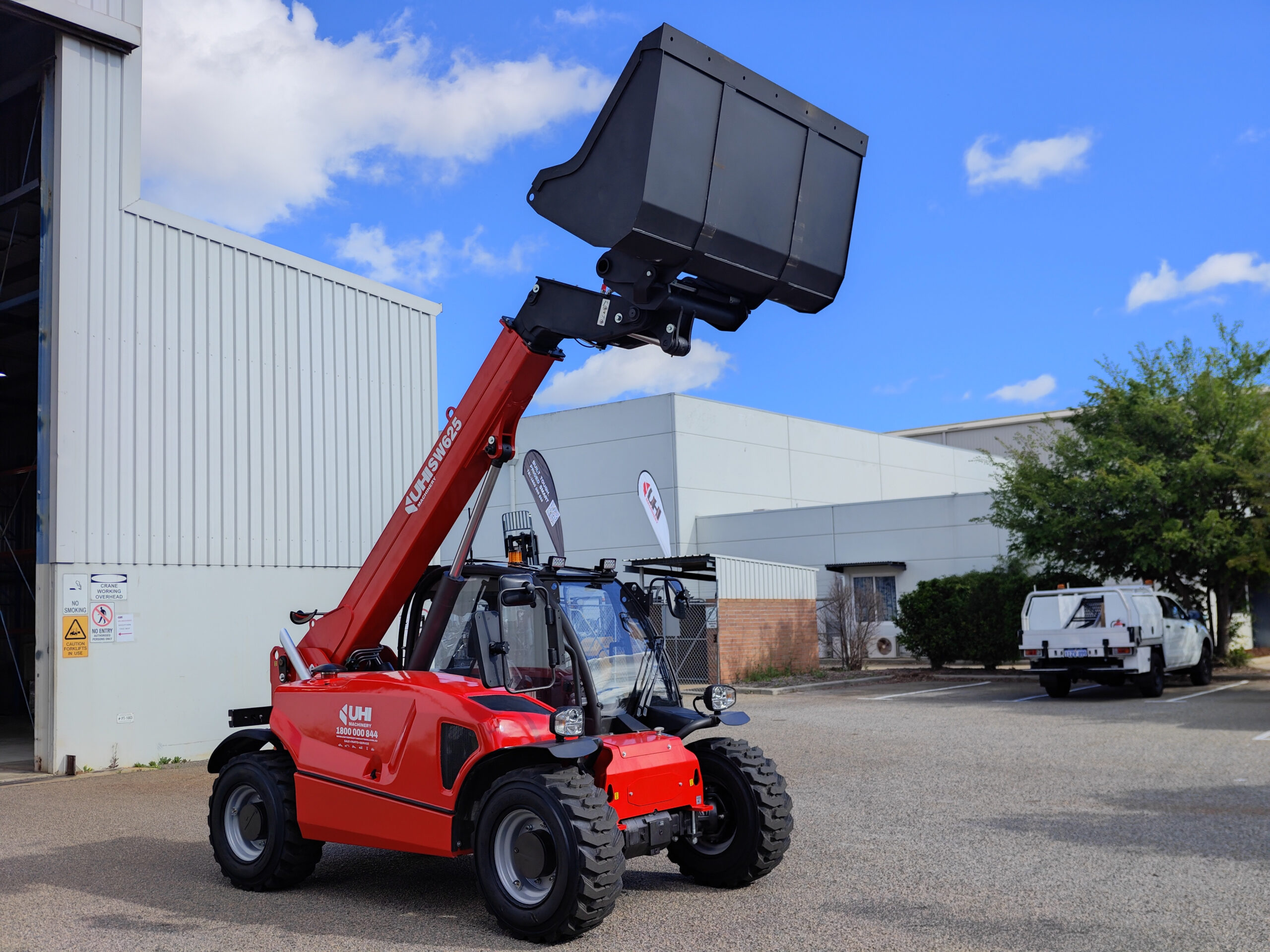

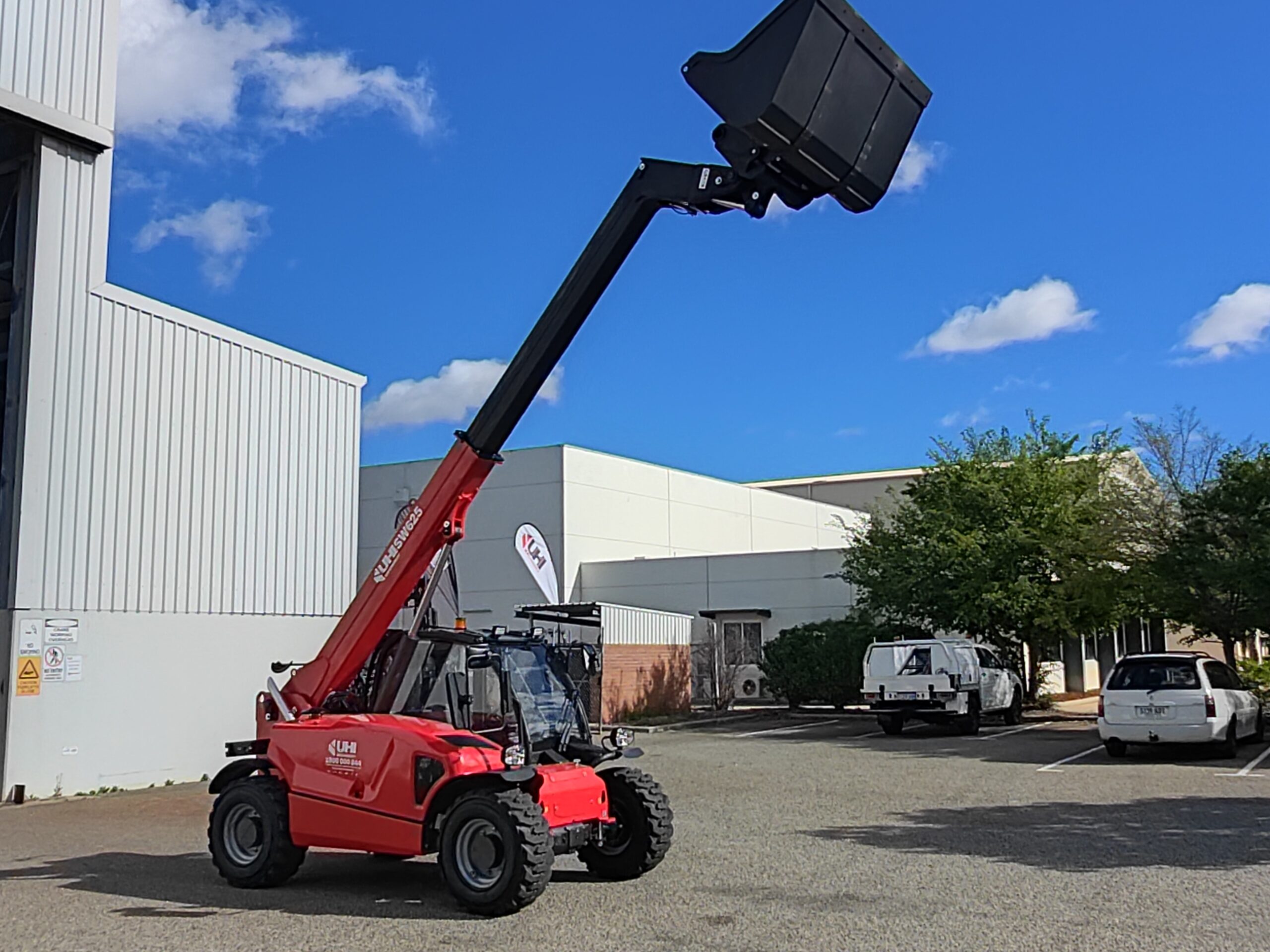

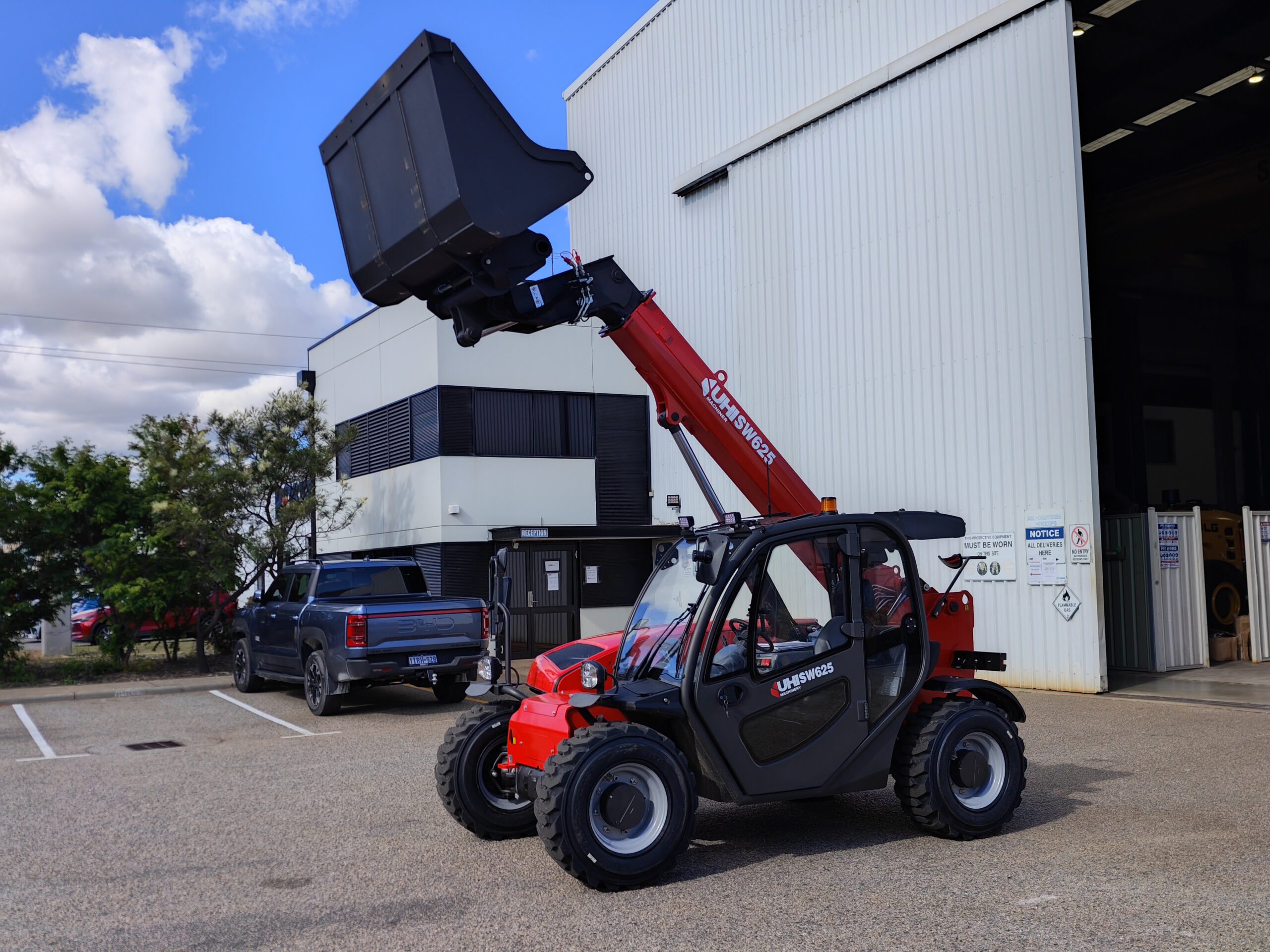

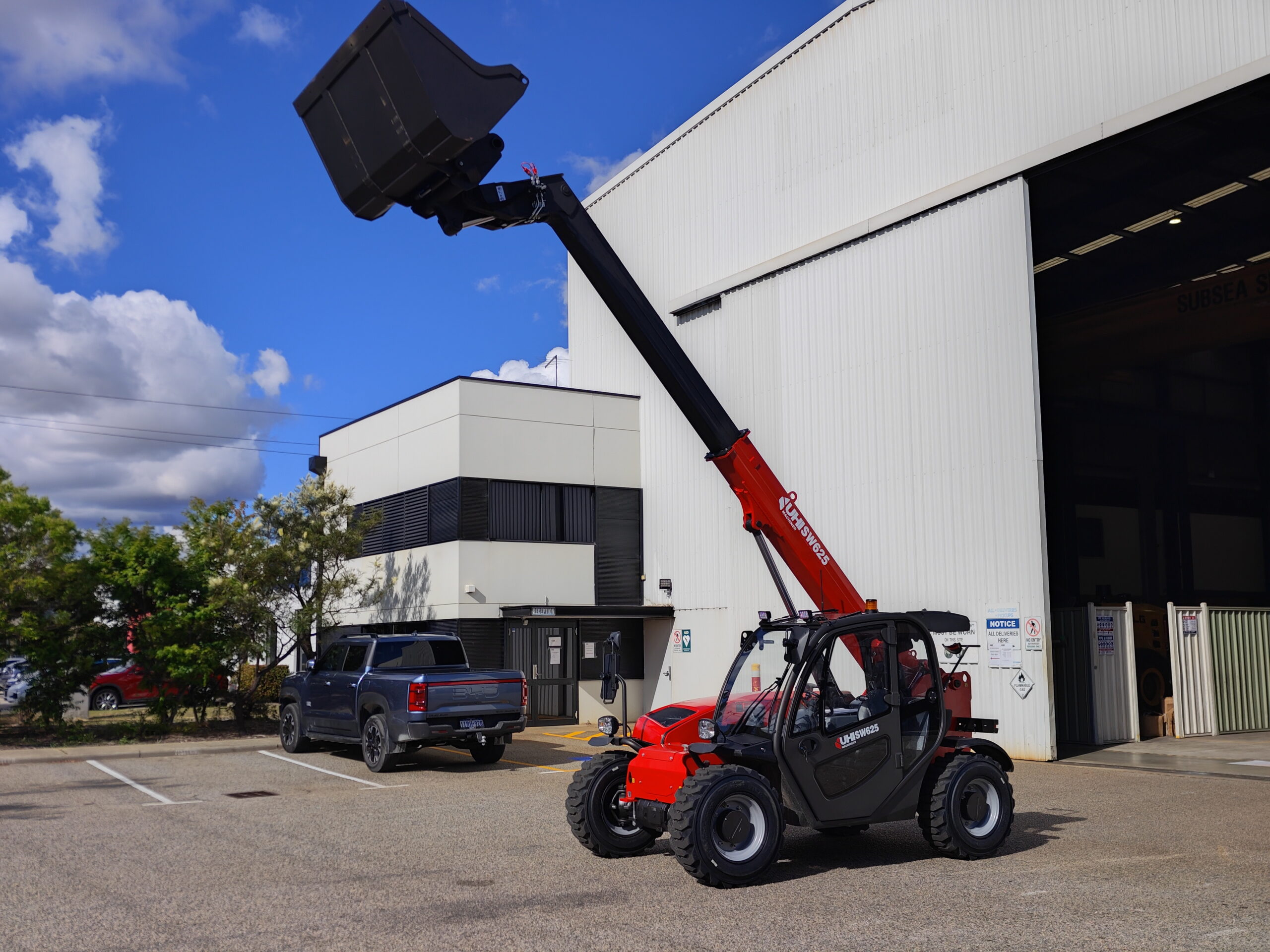

Reach with Confidence
A robust telescopic boom with parallel guides supports controlled lifting and reduced wear.
4-Wheel Drive & Steering
Four driven wheels and front/rear steering improve traction and manoeuvrability.
Compact Working Envelope
1,828 mm overall width and 3,180 mm outer tyre-edge turning radius.

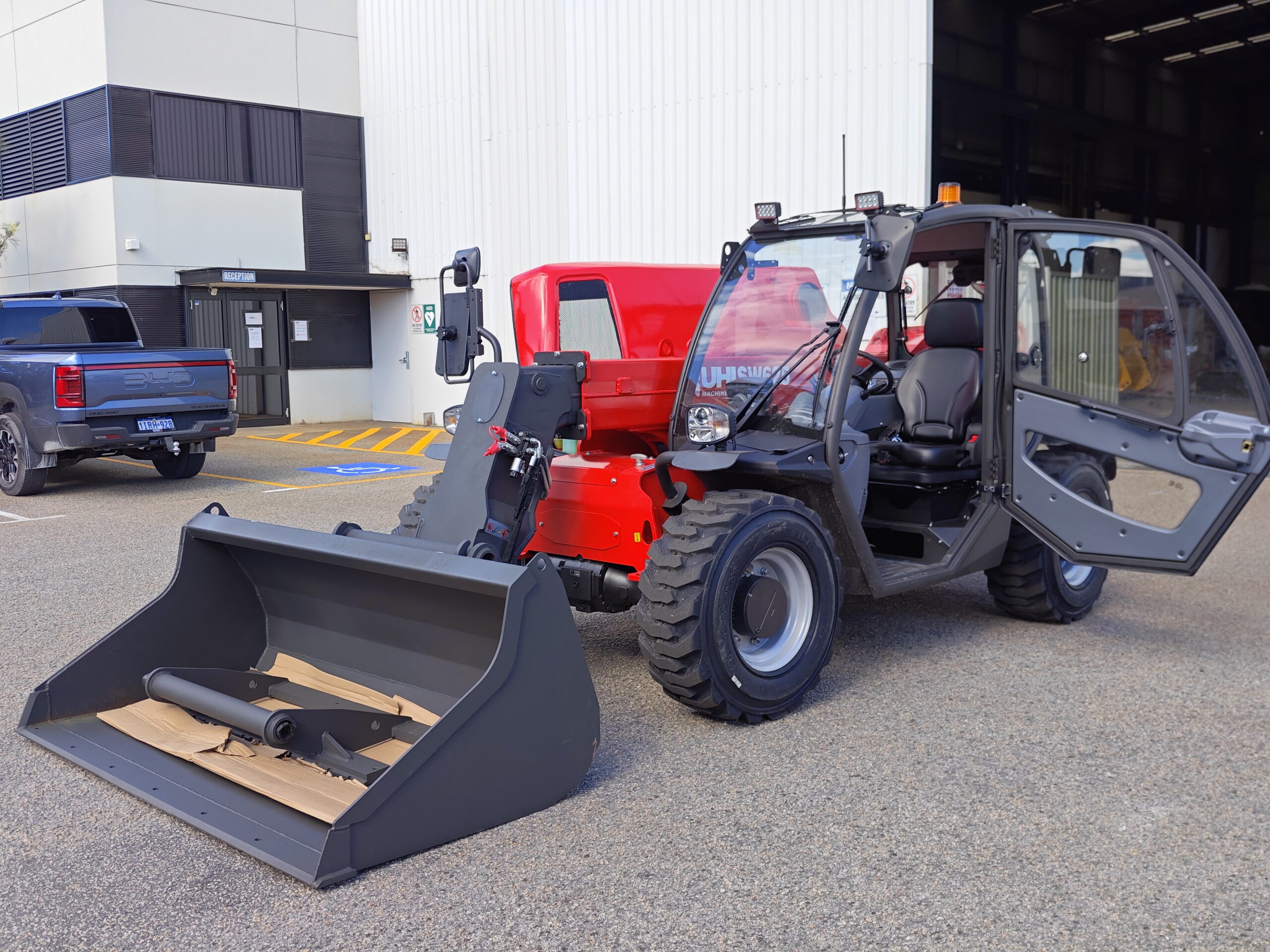

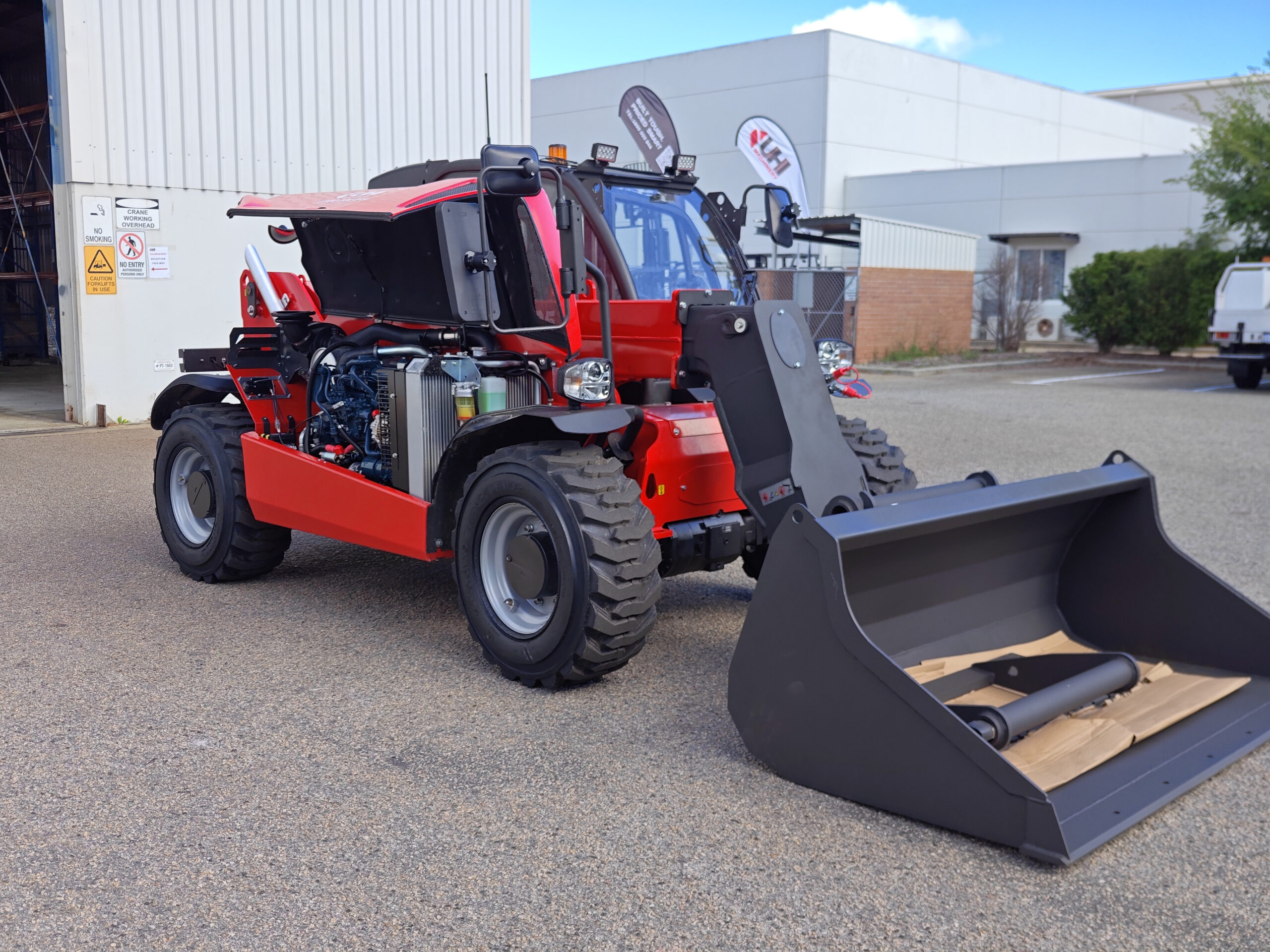

Front Auxiliary Circuit
Dedicated hydraulic supply supports compatible front-mounted attachments.

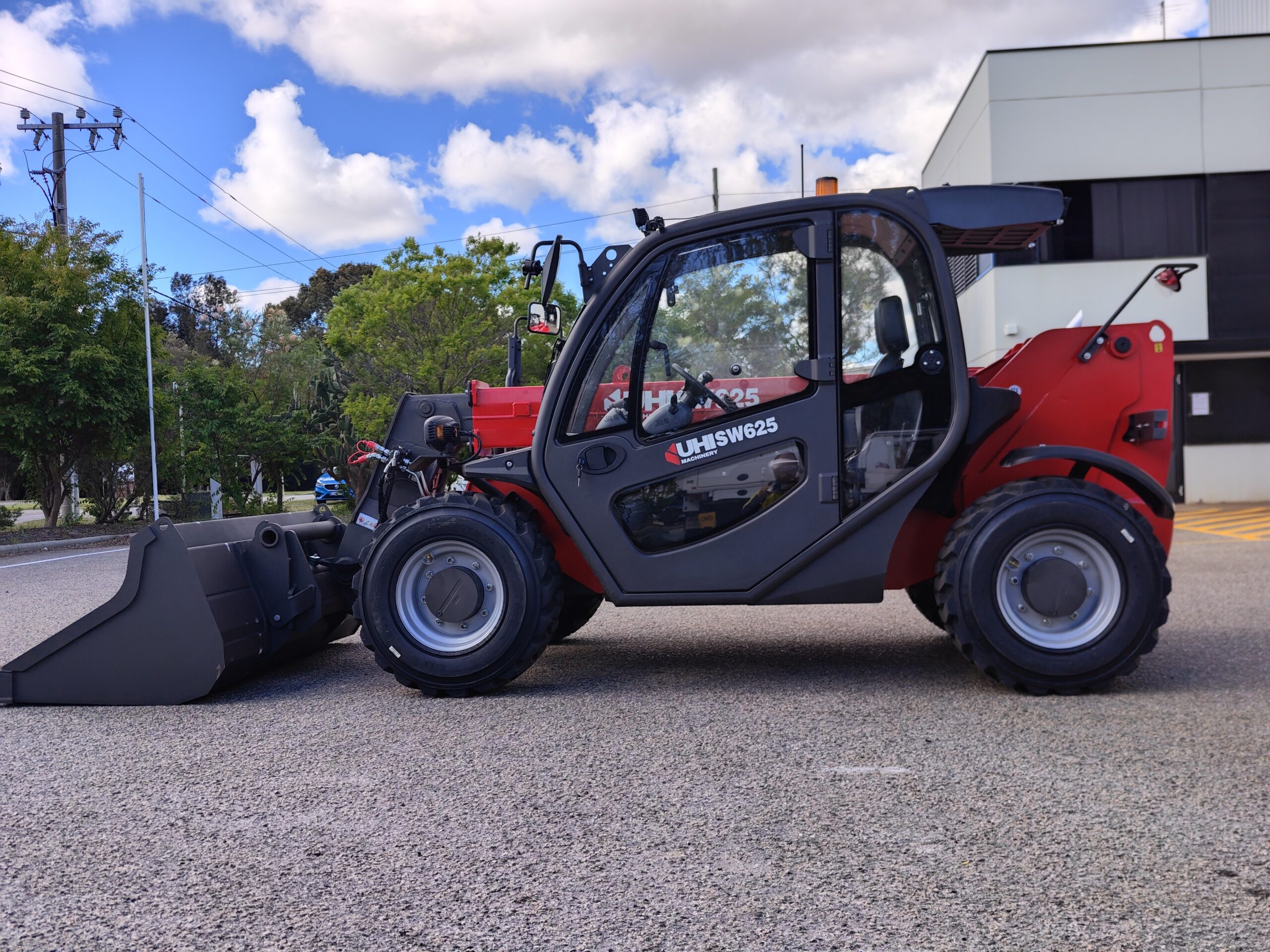

Transport & Site Dimensions
- Overall length without forks
- 3,882 mm
- Overall length with forks
- 5,090 mm
- Cab height
- 1,945 mm
- Wheelbase
- 2,300 mm
- Fork length
- 1,200 mm
- Outer tyre-edge turning radius
- 3,180 mm
Control, Safety & Operator Comfort
Clear information and practical day-long usability

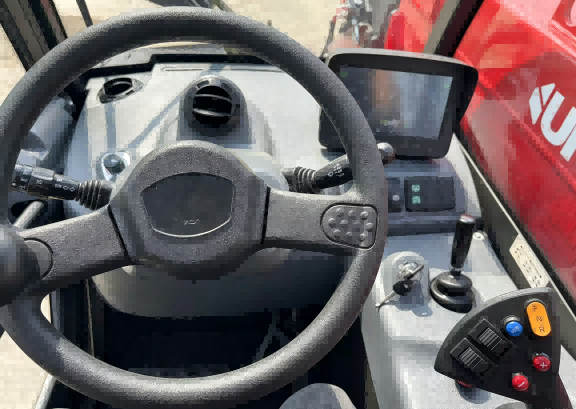

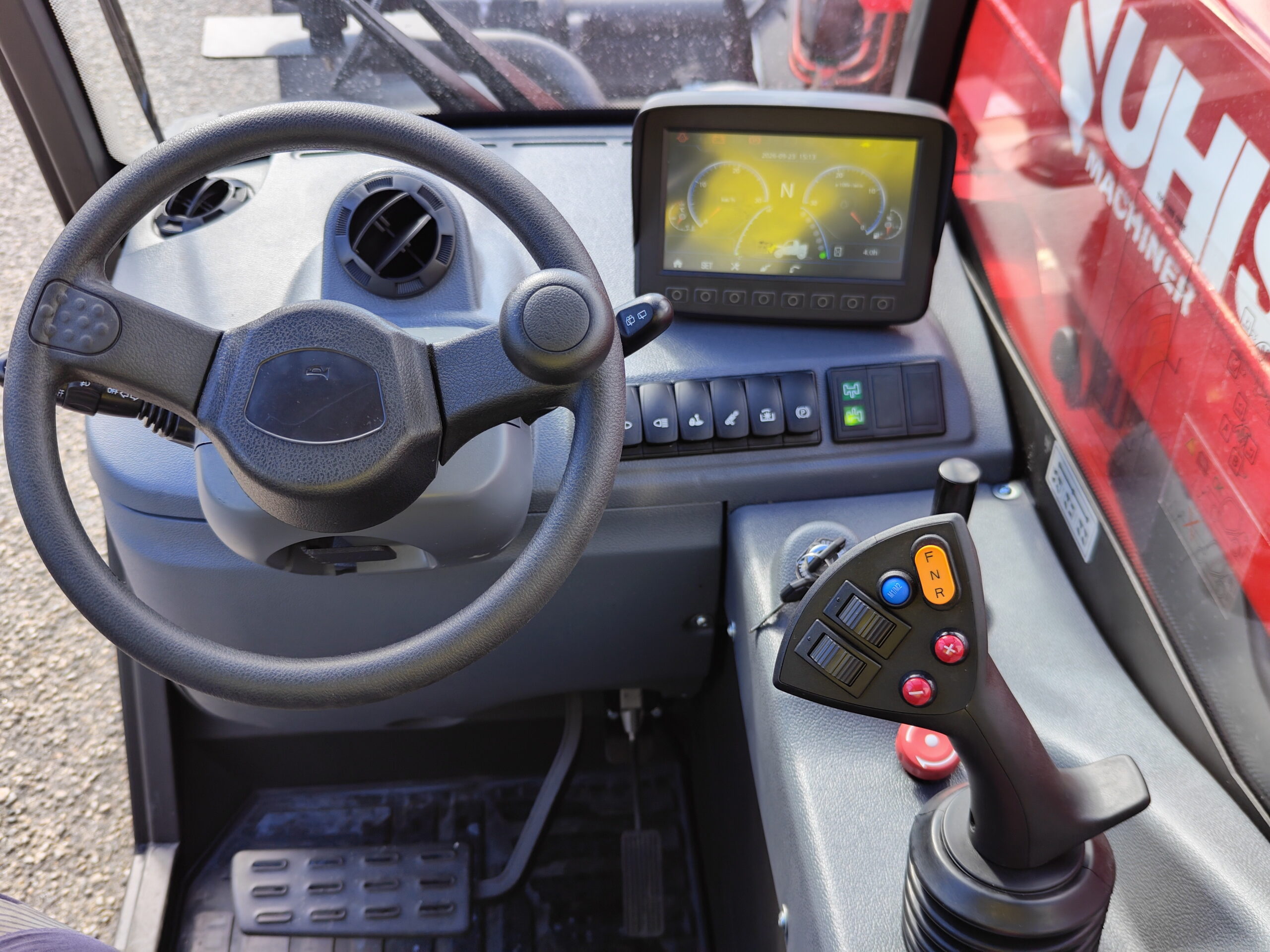

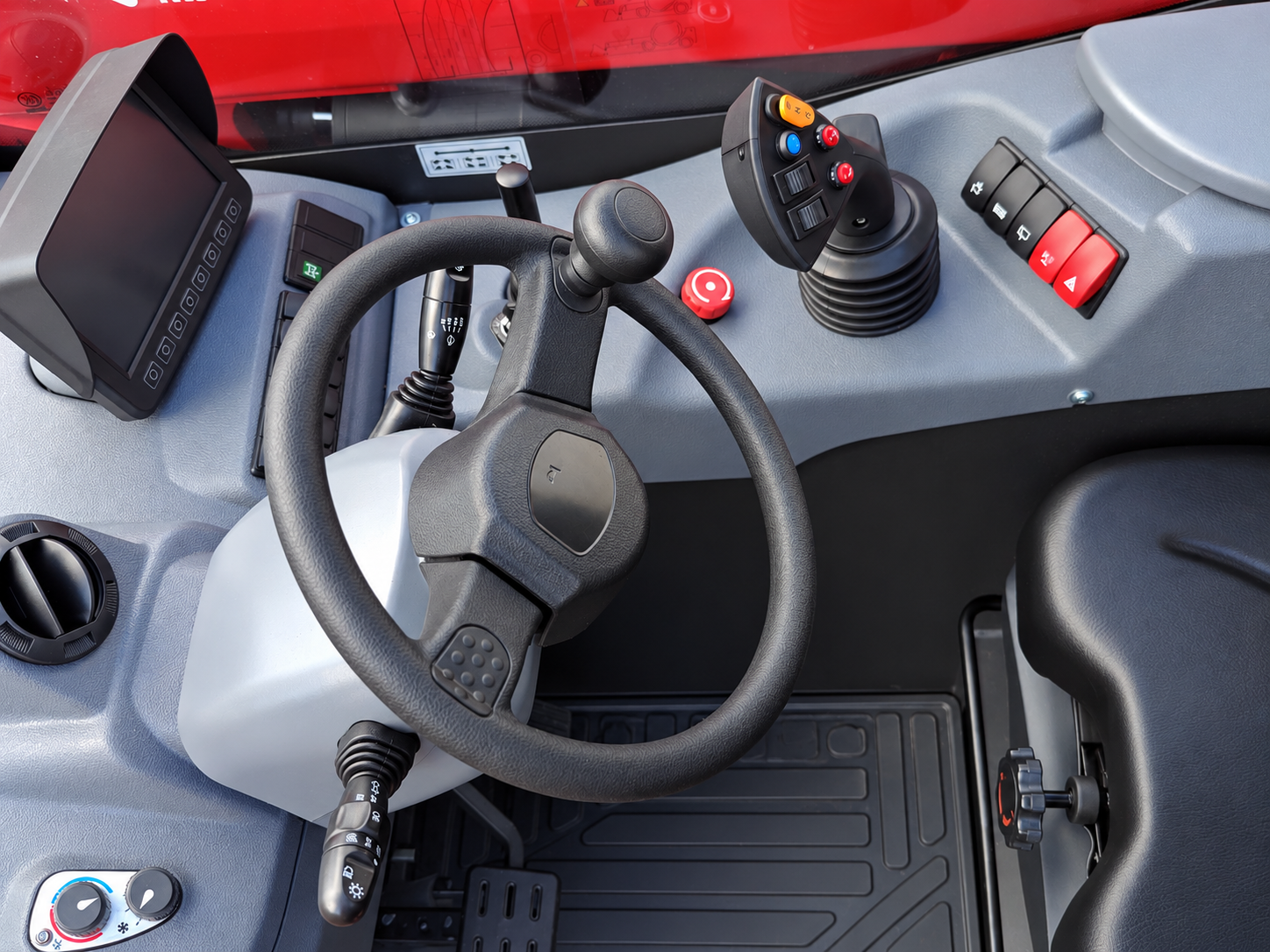

Centralised Joystick Control

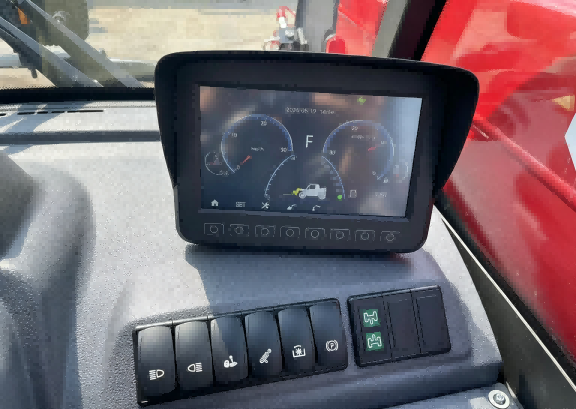

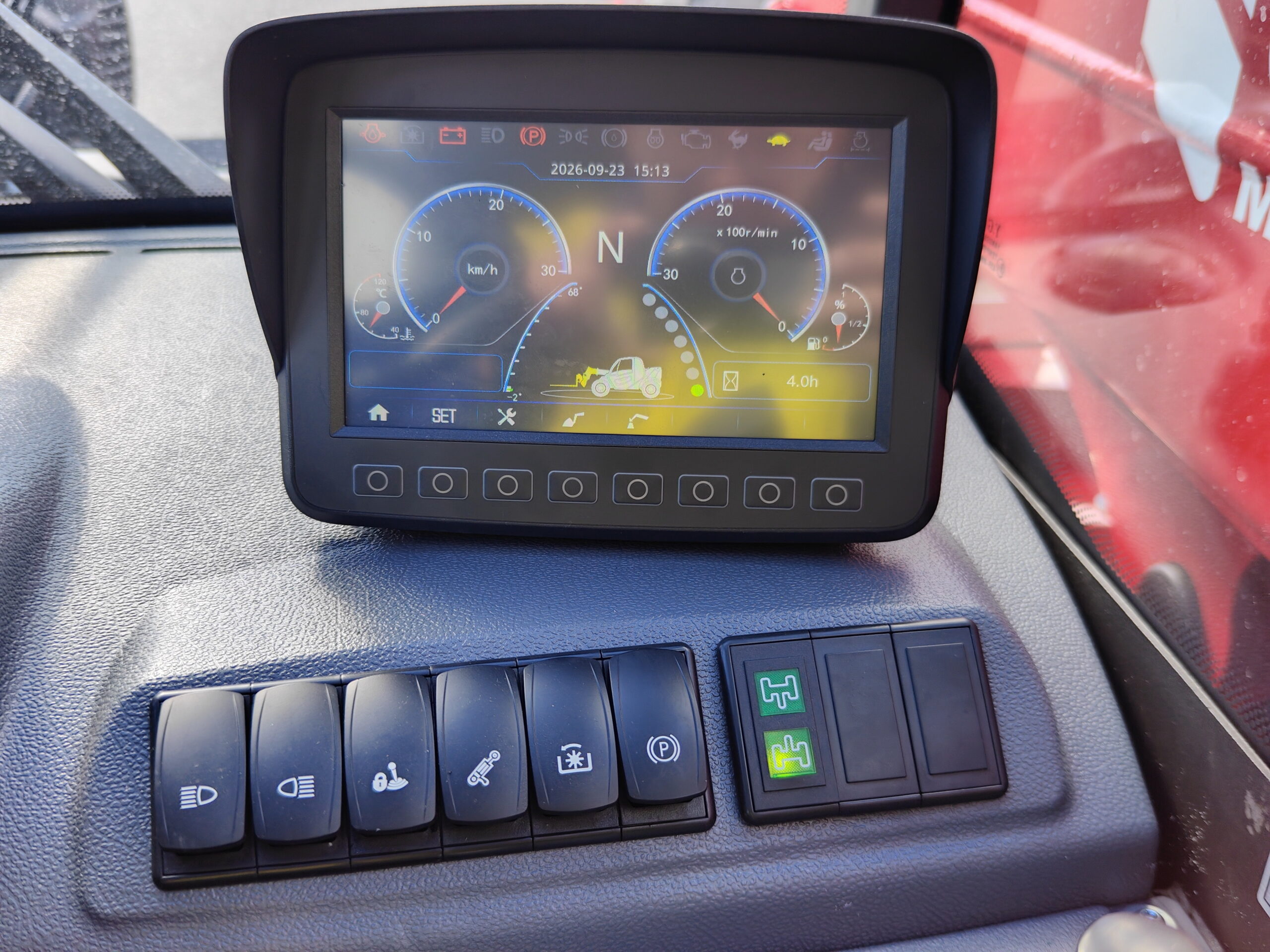

Colour Information Display

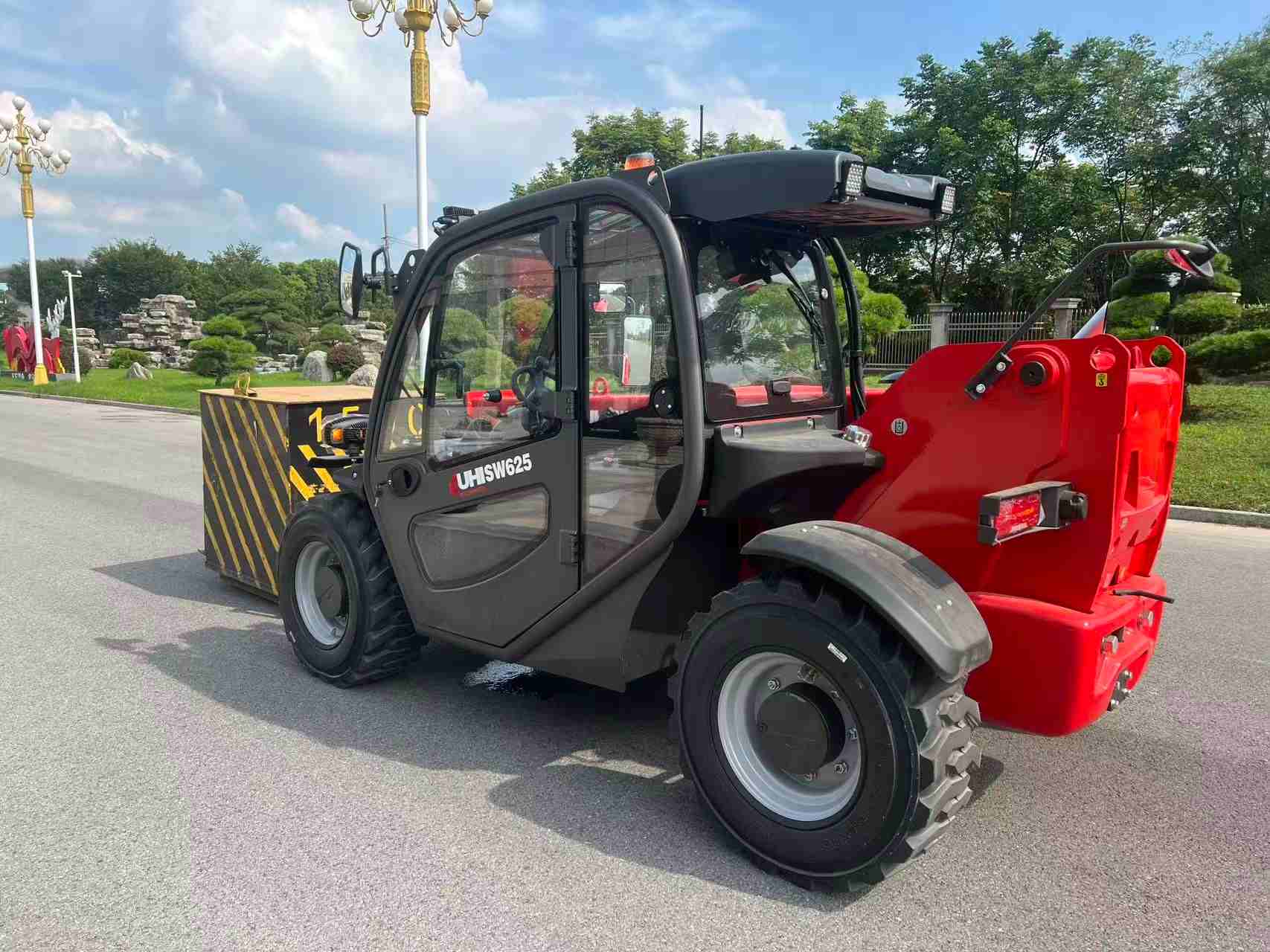

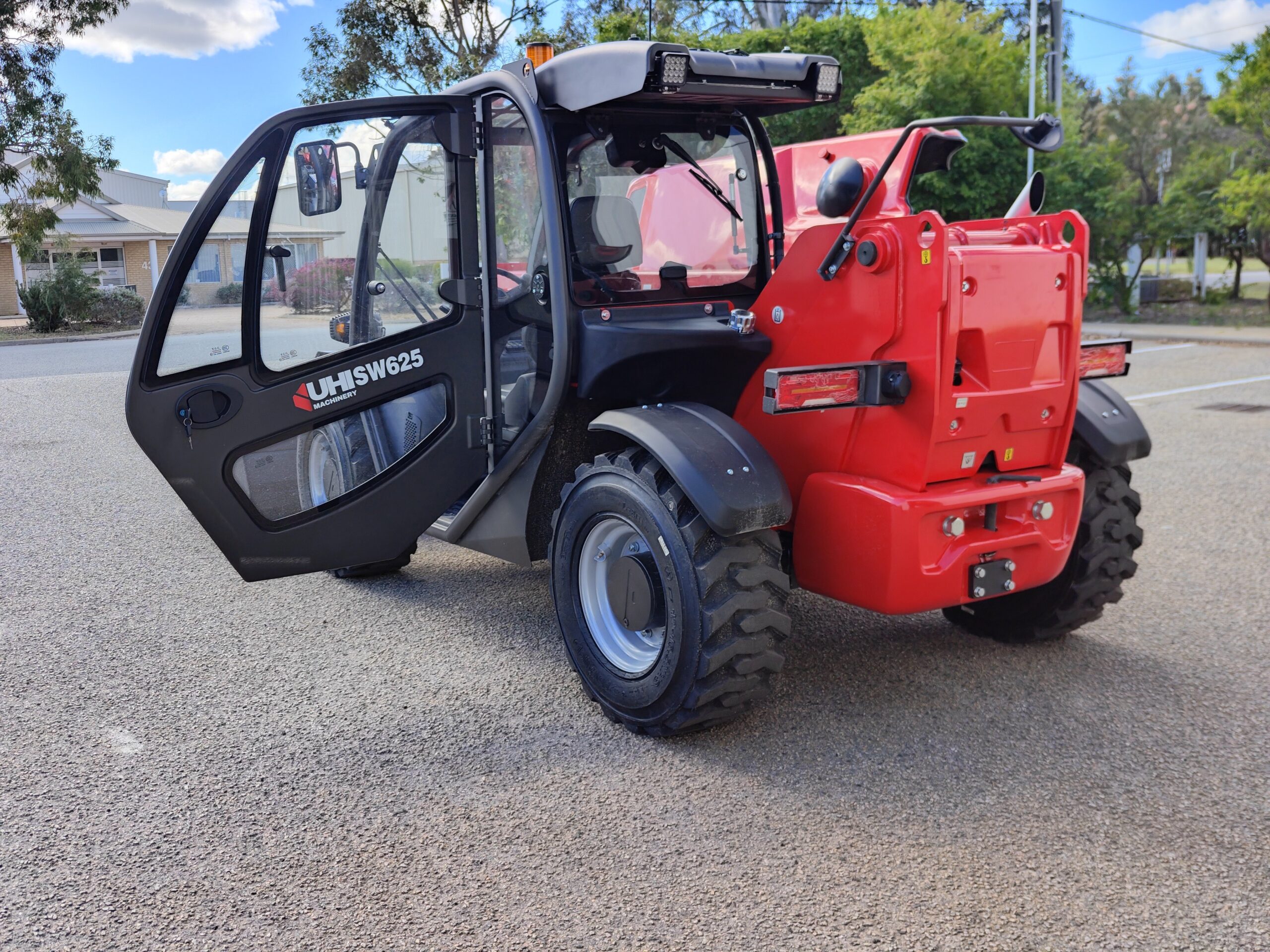

Compact Cab & Visibility
EN 15000 Load Protection
Proportional load-moment protection provides clear load-status feedback during lifting.
Multiple Working Modes
Selectable work modes improve control convenience and help optimise power distribution.
Travel Program Control
Electronic travel control reduces drive losses for efficient power delivery.

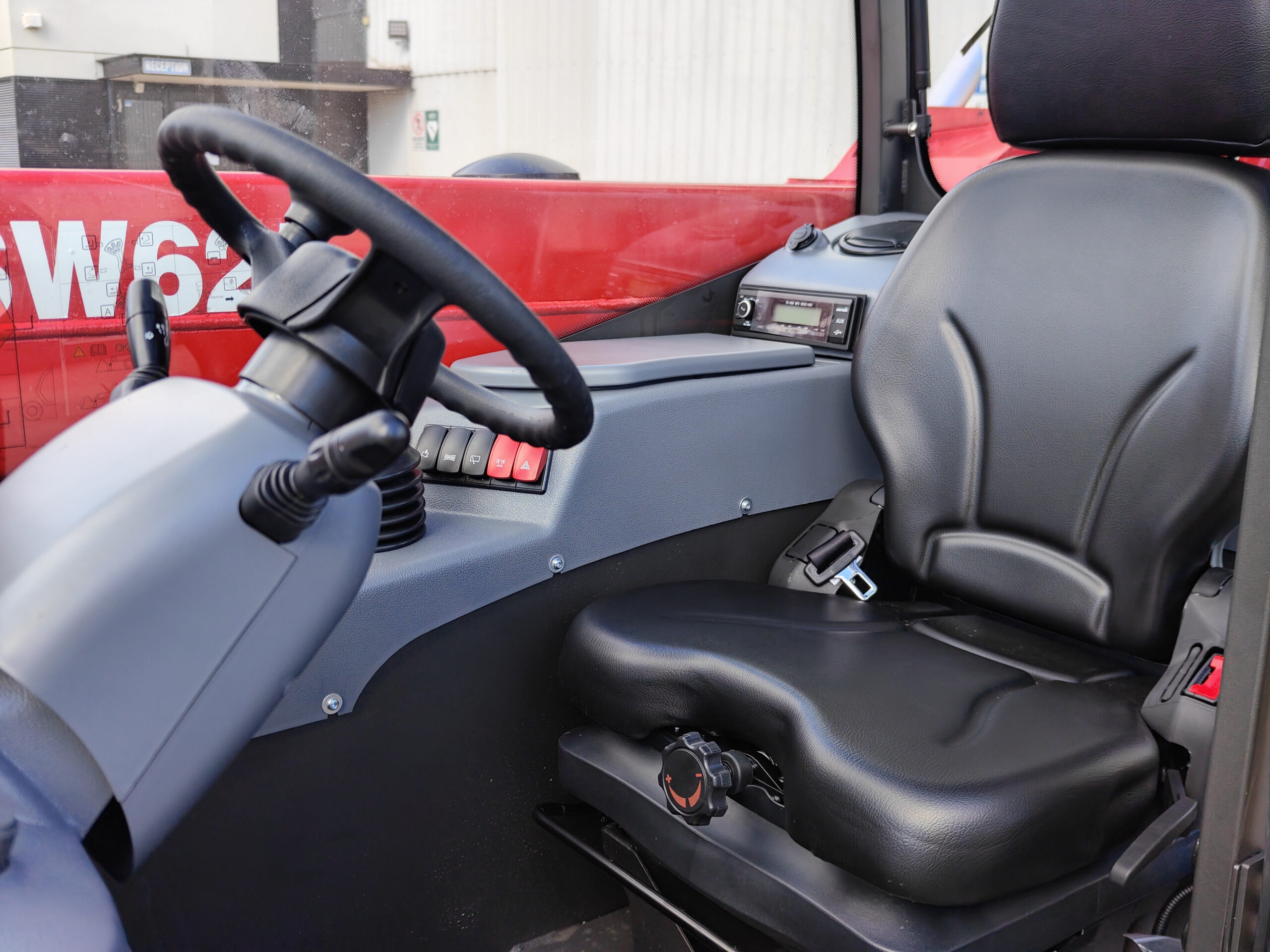

Operator Comfort
Supportive seat with seat belt and backrest for a secure, practical driving position.
Useful Tank Capacity
68 L fuel tank and 75 L hydraulic tank support productive daily operation.
Site-Ready Tyres
Euro-standard 12-16.5 NHS tyres suited to compact telehandler duty.

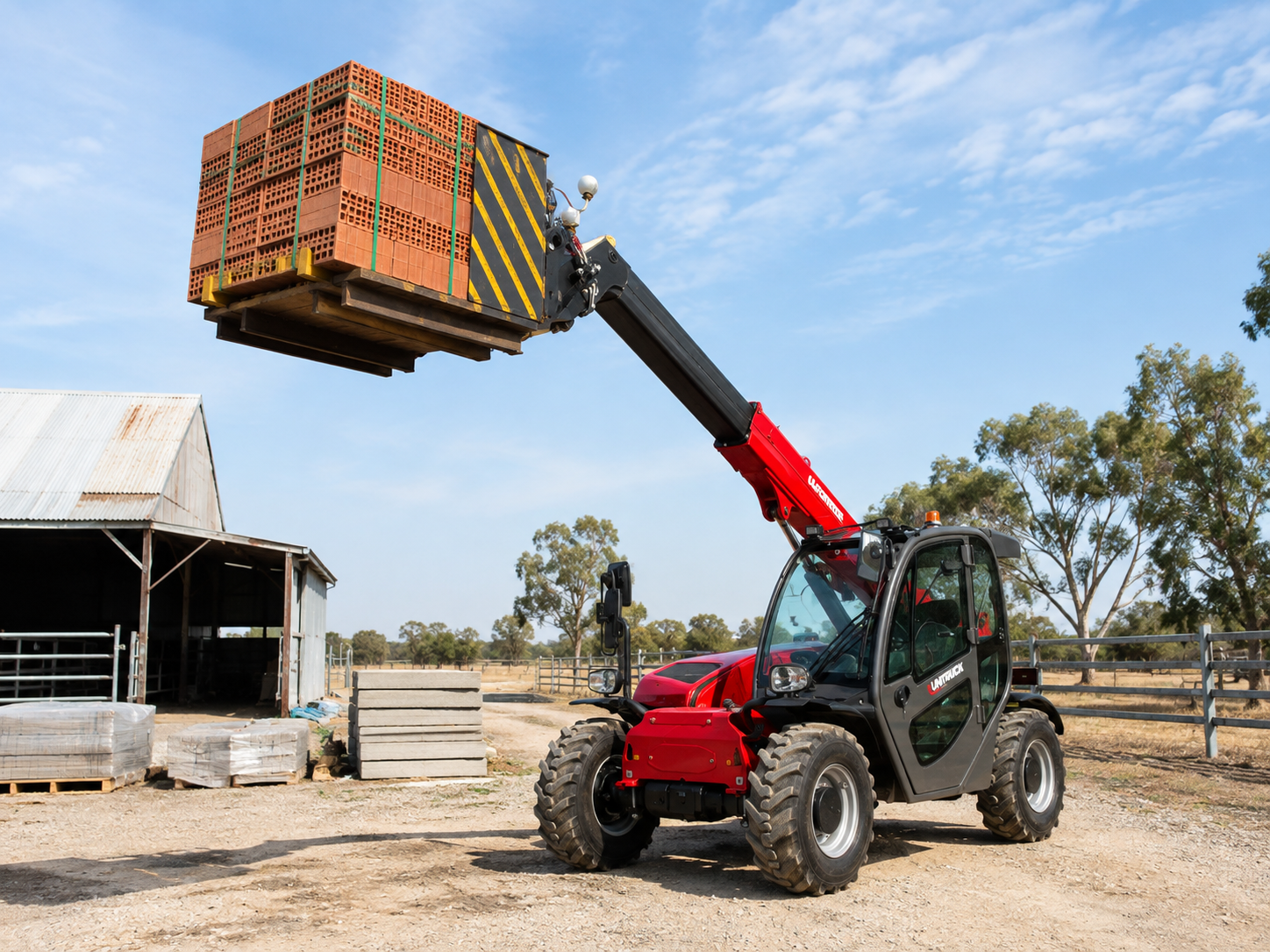

Compact capability for real Australian worksites
A compact 2.5-tonne telehandler combining 6-metre-class reach, recognised hydraulic components, four-wheel manoeuvrability and clear load monitoring for Australian farms, construction sites, workshops and material-handling operations.
